6.3

System connection via connection cable (M12, 5-pin to 8-pin)

8024467/2019-06-18 | SICK
Subject to change without notice

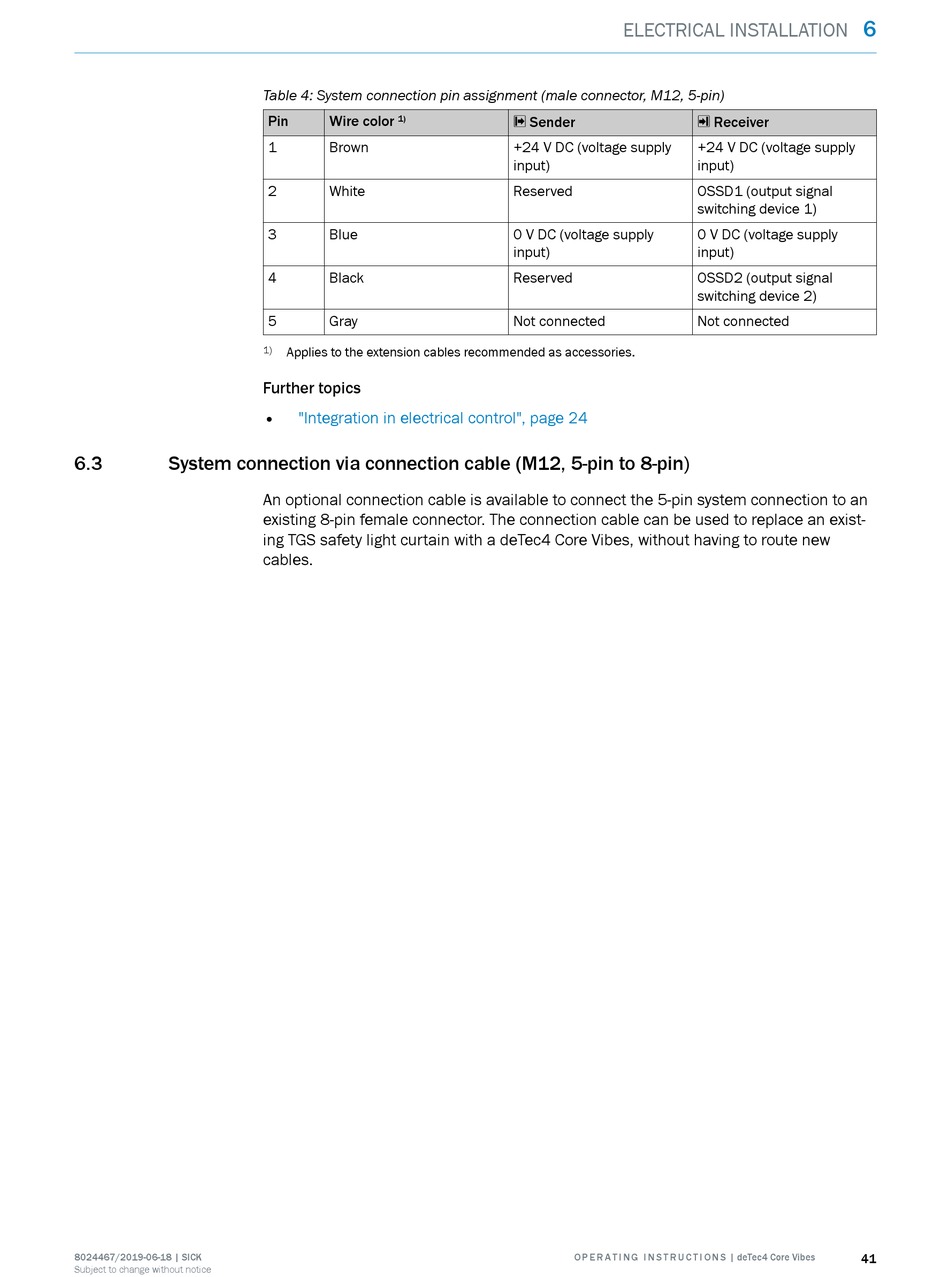

Table 4: System connection pin assignment (male connector, M12, 5-pin)
Pin Wire color
1)
1 Brown
2 White
3 Blue
4 Black
5 Gray
1) Applies to the extension cables recommended as accessories.
Further topics
• "Integration in electrical control", page 24
An optional connection cable is available to connect the 5-pin system connection to an
existing 8-pin female connector. The connection cable can be used to replace an exist‐
ing TGS safety light curtain with a deTec4 Core Vibes, without having to route new
cables.
ELECTRICAL INSTALLATION
s Sender
+24 V DC (voltage supply
input)
Reserved
0 V DC (voltage supply
input)
Reserved
Not connected
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
6
r Receiver
+24 V DC (voltage supply
input)
OSSD1 (output signal
switching device 1)
0 V DC (voltage supply
input)
OSSD2 (output signal
switching device 2)
Not connected
