7
COMMISSIONING
7.5

Check during commissioning and modifications

46 O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes

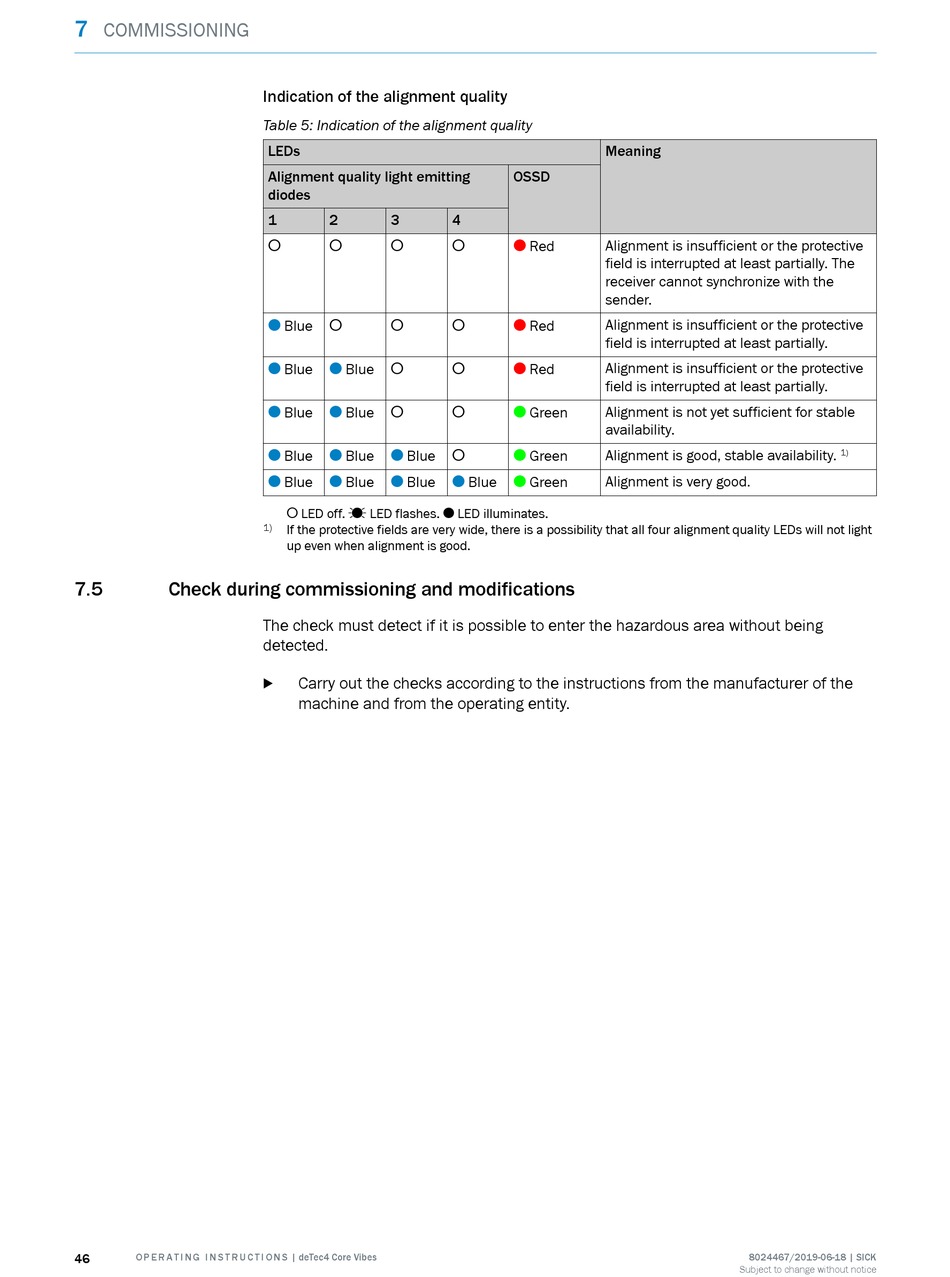

Indication of the alignment quality

Table 5: Indication of the alignment quality
LEDs
Alignment quality light emitting
diodes
1 2 3
o o o
Blue
O o o
Blue Blue
O O o
Blue Blue
O O o
Blue Blue Blue
O O O
Blue Blue Blue
O O O
o LED off. Ö LED flashes. O LED illuminates.
1) If the protective fields are very wide, there is a possibility that all four alignment quality LEDs will not light
up even when alignment is good.
The check must detect if it is possible to enter the hazardous area without being
detected.
Carry out the checks according to the instructions from the manufacturer of the
b
machine and from the operating entity.
Meaning
OSSD
4
Alignment is insufficient or the protective
Red
o O
field is interrupted at least partially. The
receiver cannot synchronize with the
sender.
Red Alignment is insufficient or the protective
o O
field is interrupted at least partially.
Alignment is insufficient or the protective
Red
o O
field is interrupted at least partially.
Alignment is not yet sufficient for stable
Green
o O
availability.
Alignment is good, stable availability.
Green
o O
Alignment is very good.
Blue Green
O O
1)
8024467/2019-06-18 | SICK
Subject to change without notice
