SICK microScan3 - EFI-pro Operating Instructions Manual page 162

13
TECHNICAL DATA
162 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
R [%]
500 6
200
100
5
4
50
20
3
10
5
2
1
2
1
5 10

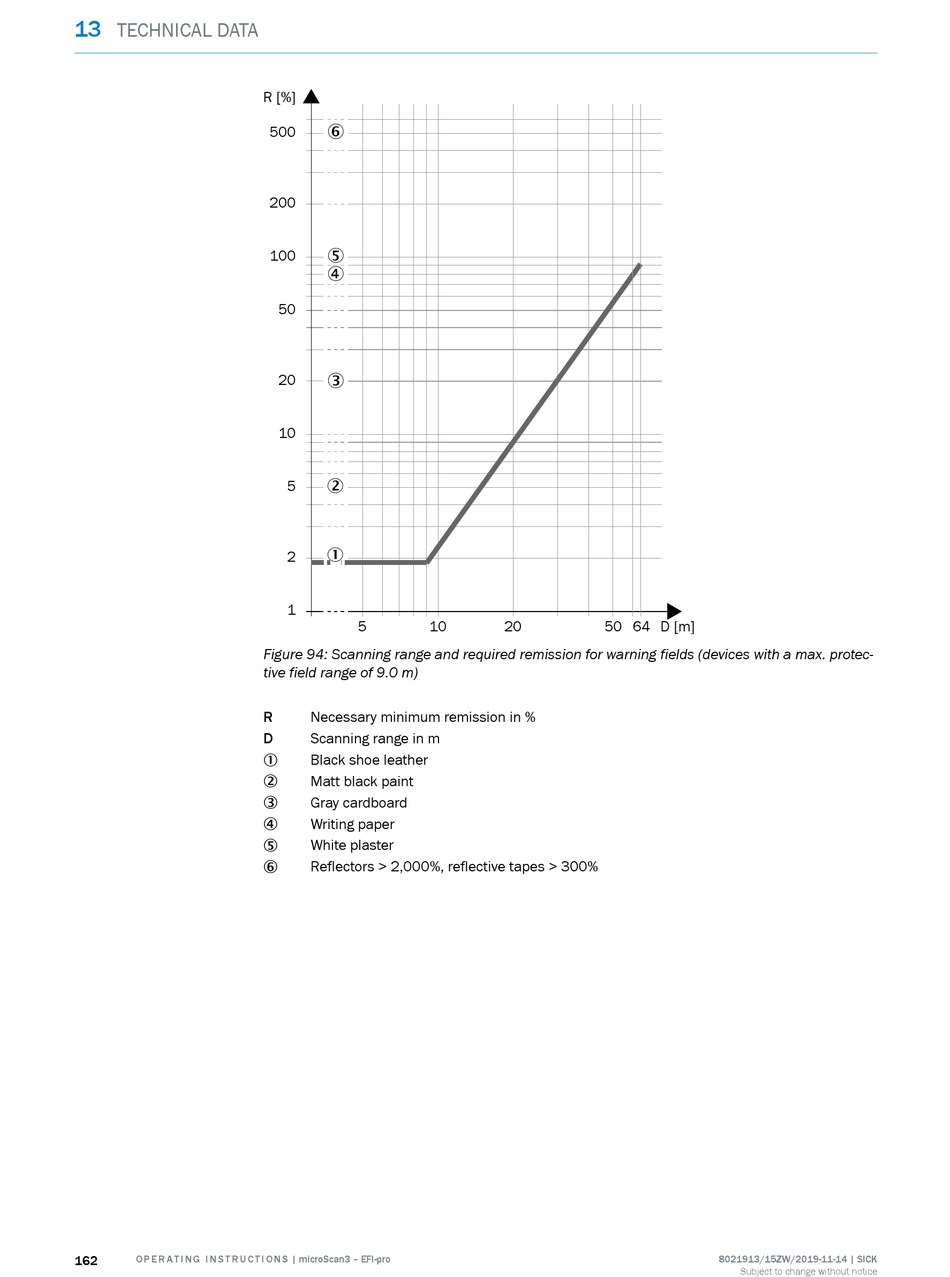

Figure 94: Scanning range and required remission for warning fields (devices with a max. protec‐
tive field range of 9.0 m)
R Necessary minimum remission in %
D Scanning range in m
Black shoe leather
1
Matt black paint
2
Gray cardboard
3
Writing paper
4
White plaster
5
Reflectors > 2,000%, reflective tapes > 300%
6
20 50 64 D [m]
