8
COMMISSIONING
8.3

Switching on

118 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro

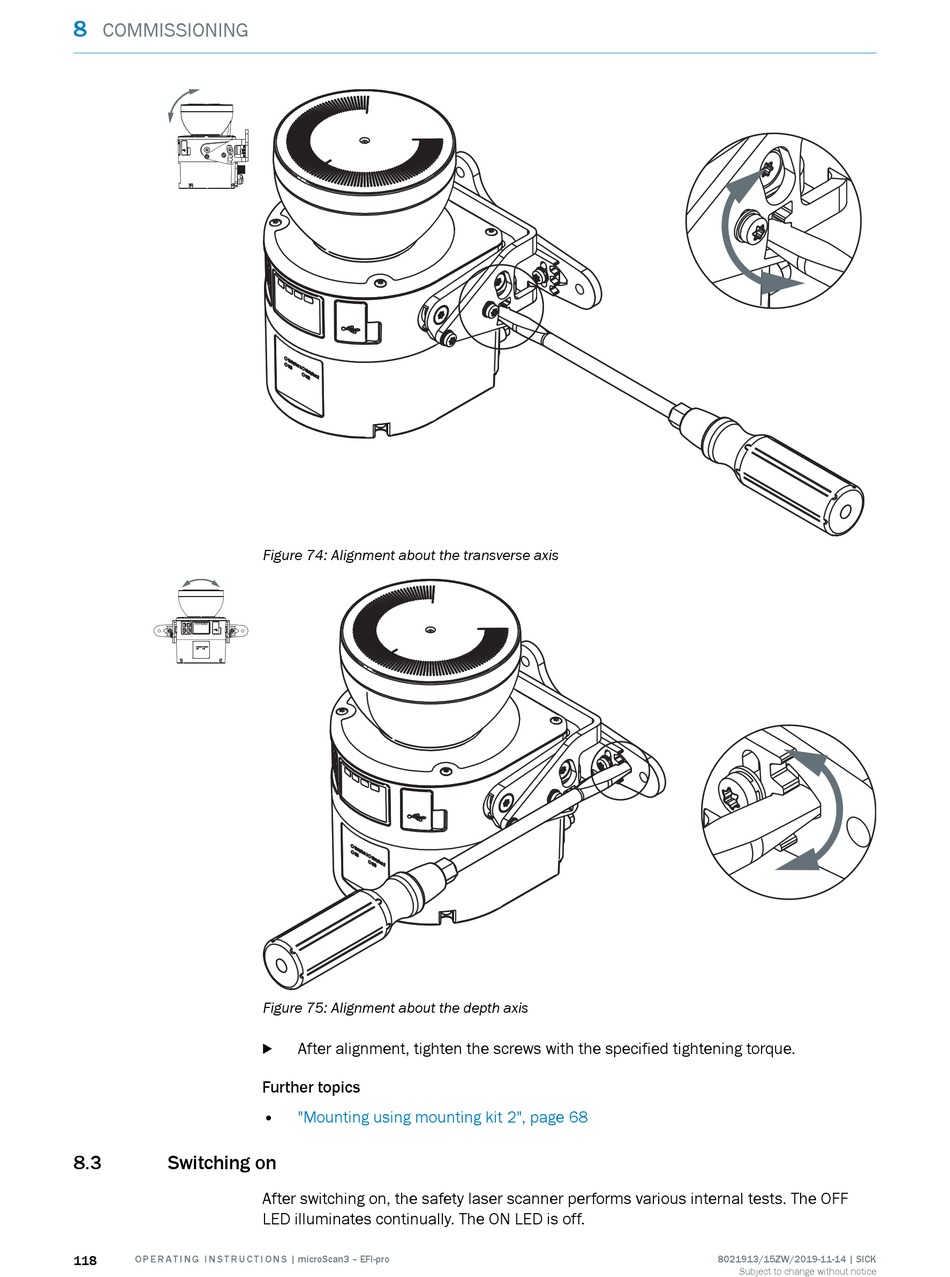

Figure 74: Alignment about the transverse axis
Figure 75: Alignment about the depth axis
After alignment, tighten the screws with the specified tightening torque.
b
Further topics
• "Mounting using mounting kit 2", page 68
After switching on, the safety laser scanner performs various internal tests. The OFF
LED illuminates continually. The ON LED is off.
