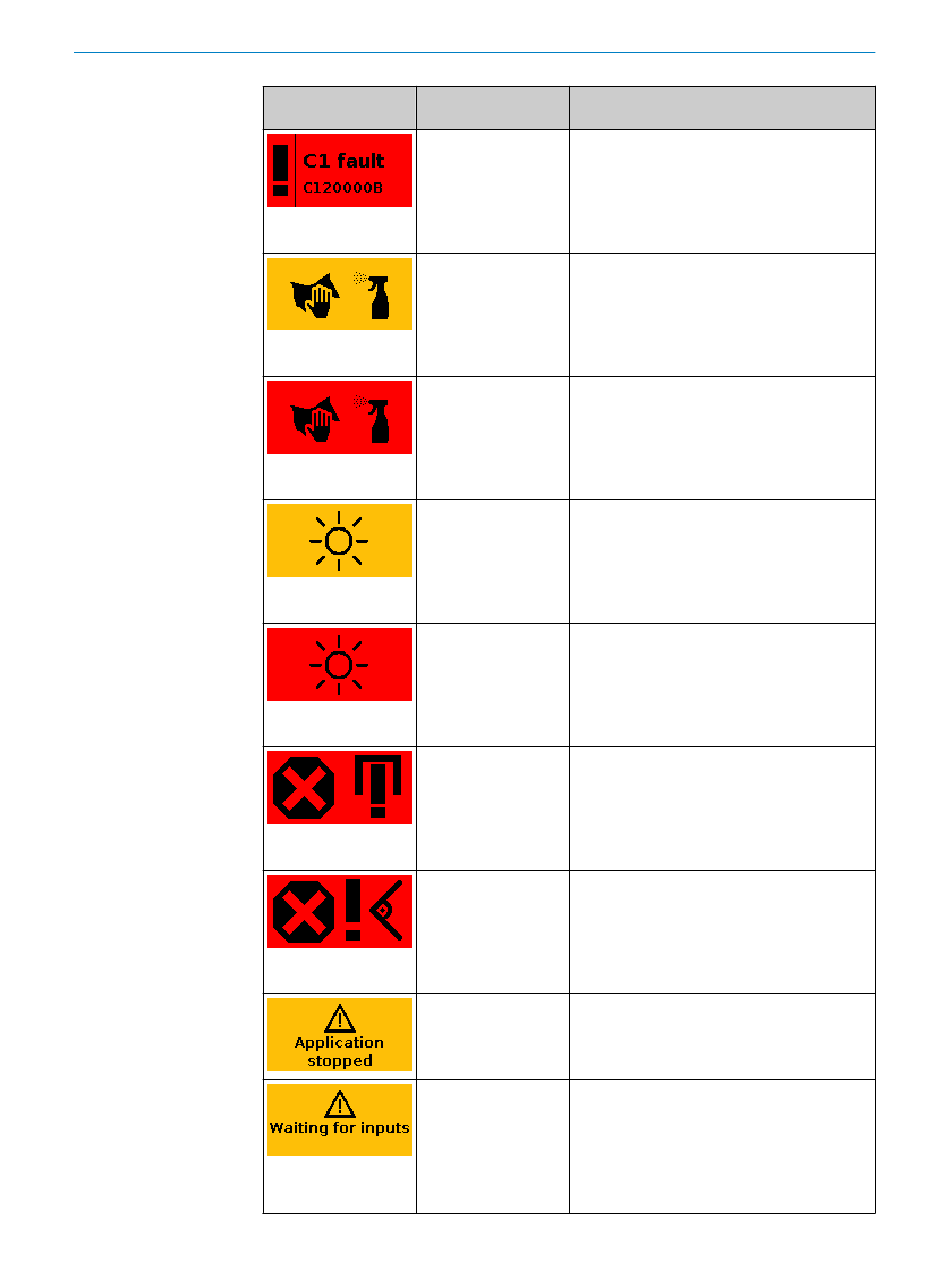

Display Device or configura‐
tion
All devices and config‐
urations
Display flashes
All devices and config‐
urations
Display flashes
All devices and config‐
urations
Display flashes
All devices and config‐
urations
Display flashes
All devices and config‐
urations
Display flashes
Configuration with ref‐
erence contour field
Display flashes
All devices and config‐
urations
Display flashes
All devices and config‐
urations
All devices and config‐
urations
Meaning
Fault. All safety outputs in the OFF state. Addi‐
tional information: see "Fault display",
page 142.
Contamination warning. Check the optics cover
for damage. Clean the optics cover.
Contamination fault. All safety outputs in the
OFF state. Check the optics cover for damage.
Clean the optics cover.
Dazzle warning. Check whether the safety laser
scanner is being dazzled by an external light
source in the scan plane, e.g., sun, halogen
light, infrared light source, stroboscope.
Remove or cover the light source.
Dazzle error. All safety outputs in the OFF
state. Check whether the safety laser scanner
is being dazzled by an external light source in
the scan plane, e.g., sun, halogen light,
infrared light source, stroboscope. Remove or
cover the light source.
Tamper protection. The safety laser scanner
does not detect a contour in the set tolerance
band. All safety outputs in the OFF state.
Tamper protection. The safety laser scanner
measures no values within the distance mea‐
surement range in an area of at least 90°. All
safety outputs in the OFF state.
Safety function stopped. All safety outputs in
the OFF state. Restart the device using the key‐
pad or Safety Designer.
A valid input signal is not yet applied at the
control inputs. All safety outputs in the OFF
state.
After switching on, the safety laser scanner
waits for a valid input signal. During this time,
an invalid input signal does not result in a
fault.
