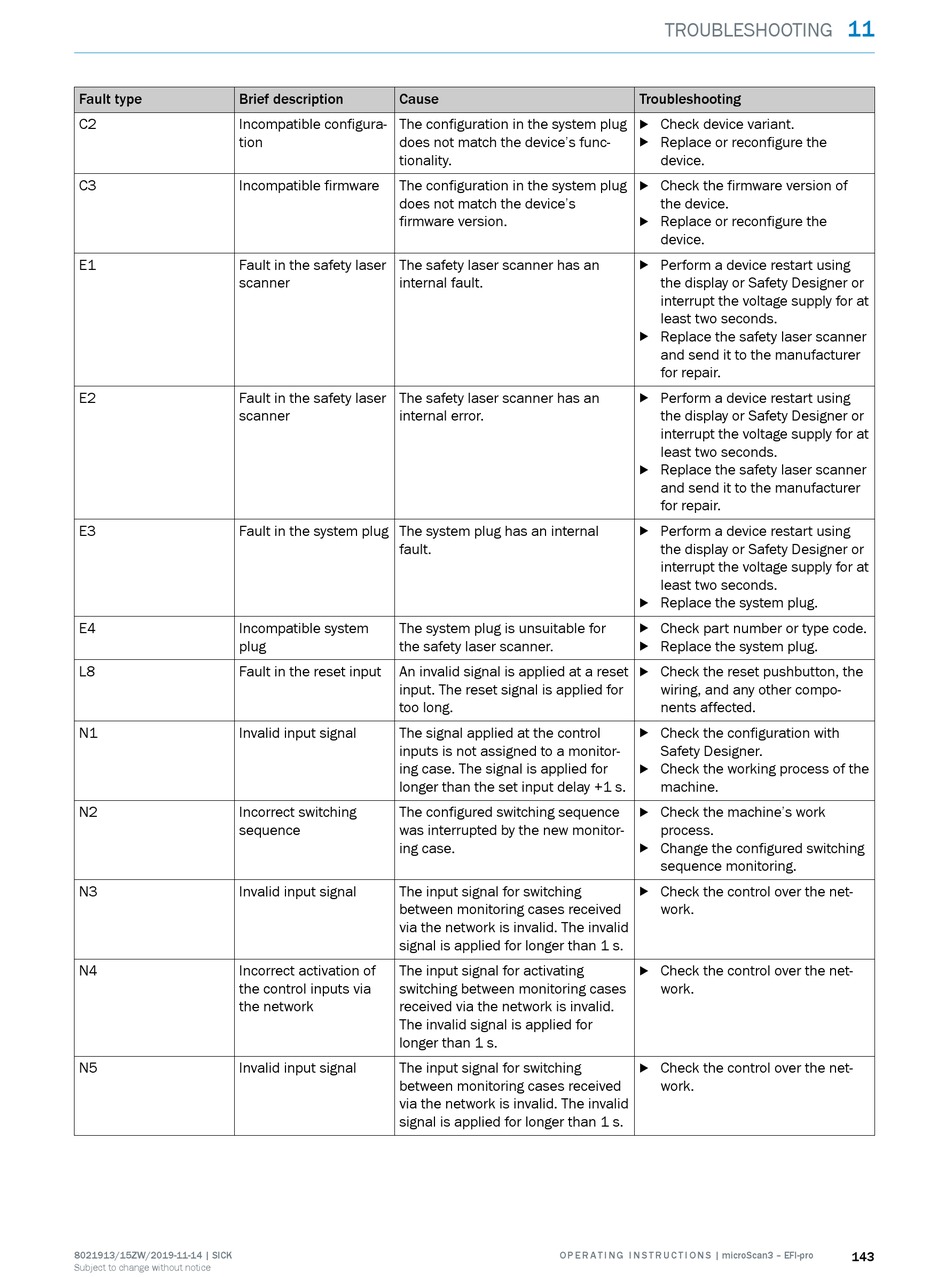

Fault type
Brief description
C2
Incompatible configura‐
tion
C3
Incompatible firmware
E1
Fault in the safety laser
scanner
E2
Fault in the safety laser
scanner
E3
Fault in the system plug The system plug has an internal
E4
Incompatible system
plug
L8
Fault in the reset input
N1
Invalid input signal
N2
Incorrect switching
sequence
N3
Invalid input signal
N4
Incorrect activation of
the control inputs via
the network
N5
Invalid input signal
8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
Cause
The configuration in the system plug
does not match the device's func‐
tionality.
The configuration in the system plug
does not match the device's
firmware version.
The safety laser scanner has an
internal fault.
The safety laser scanner has an
internal error.
fault.
The system plug is unsuitable for
the safety laser scanner.
An invalid signal is applied at a reset
input. The reset signal is applied for
too long.
The signal applied at the control
inputs is not assigned to a monitor‐
ing case. The signal is applied for
longer than the set input delay +1 s.
The configured switching sequence
was interrupted by the new monitor‐
ing case.
The input signal for switching
between monitoring cases received
via the network is invalid. The invalid
signal is applied for longer than 1 s.
The input signal for activating
switching between monitoring cases
received via the network is invalid.
The invalid signal is applied for
longer than 1 s.
The input signal for switching
between monitoring cases received
via the network is invalid. The invalid
signal is applied for longer than 1 s.
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
TROUBLESHOOTING
Troubleshooting
b Check device variant.
b Replace or reconfigure the
device.
b Check the firmware version of
the device.
b Replace or reconfigure the
device.
b Perform a device restart using
the display or Safety Designer or
interrupt the voltage supply for at
least two seconds.
b Replace the safety laser scanner
and send it to the manufacturer
for repair.
b Perform a device restart using
the display or Safety Designer or
interrupt the voltage supply for at
least two seconds.
b Replace the safety laser scanner
and send it to the manufacturer
for repair.
b Perform a device restart using
the display or Safety Designer or
interrupt the voltage supply for at
least two seconds.
b Replace the system plug.
b Check part number or type code.
b Replace the system plug.
b Check the reset pushbutton, the
wiring, and any other compo‐
nents affected.
b Check the configuration with
Safety Designer.
b Check the working process of the
machine.
b Check the machine's work
process.
b Change the configured switching
sequence monitoring.
b Check the control over the net‐
work.
b Check the control over the net‐
work.
b Check the control over the net‐
work.
11
143
