7.9

Reference contour field

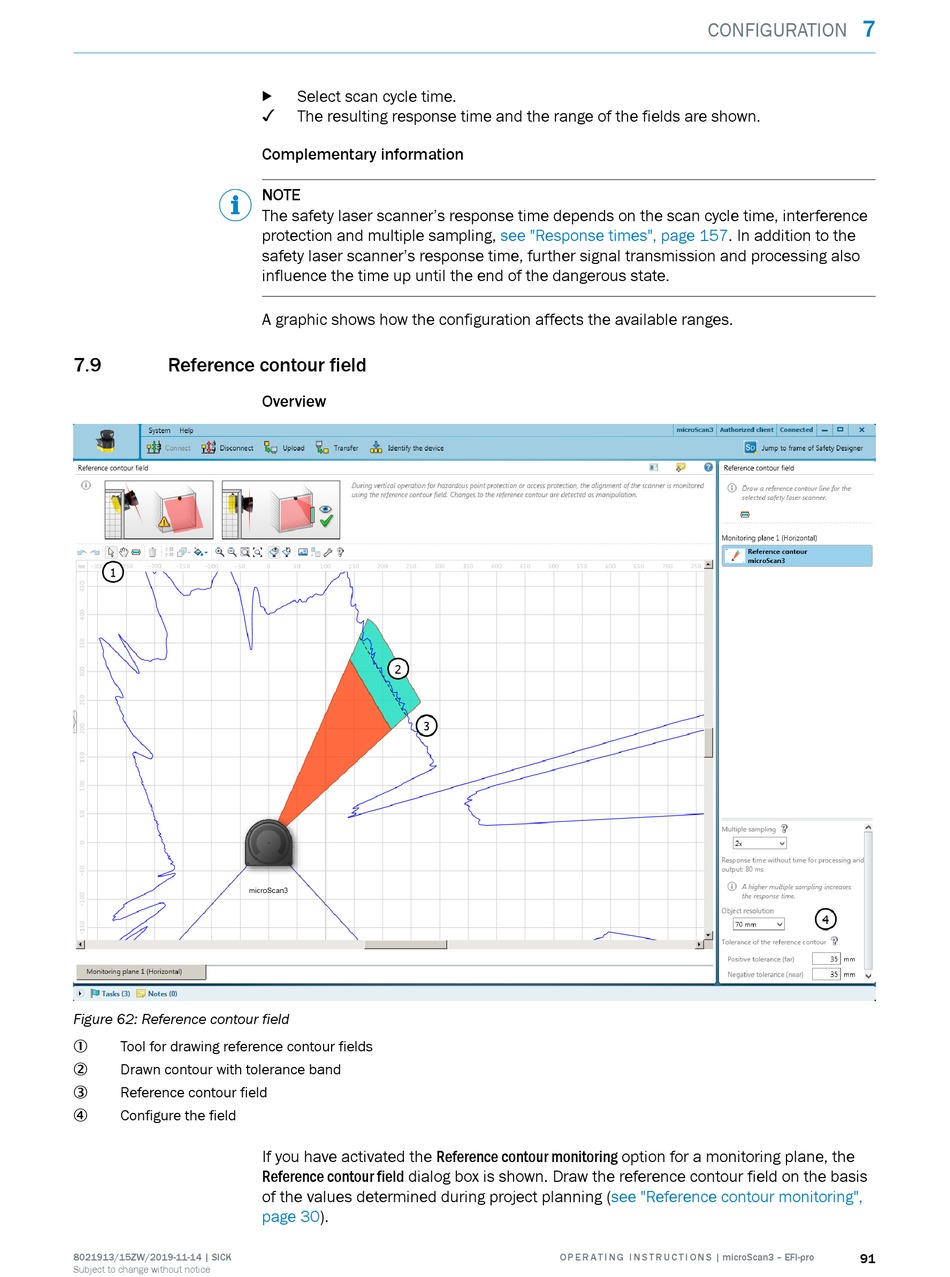

Figure 62: Reference contour field
Tool for drawing reference contour fields
1
Drawn contour with tolerance band
2

Reference contour field

3
Configure the field
4
8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
Select scan cycle time.
b
✓
The resulting response time and the range of the fields are shown.
Complementary information
NOTE
The safety laser scanner's response time depends on the scan cycle time, interference
protection and multiple sampling,
safety laser scanner's response time, further signal transmission and processing also
influence the time up until the end of the dangerous state.
A graphic shows how the configuration affects the available ranges.
Overview
If you have activated the Reference contour monitoring option for a monitoring plane, the
Reference contour field dialog box is shown. Draw the reference contour field on the basis
of the values determined during project planning
page 30).
see "Response times", page
(see "Reference contour monitoring",
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
7
CONFIGURATION
157. In addition to the
91
