7.11

Inputs and outputs

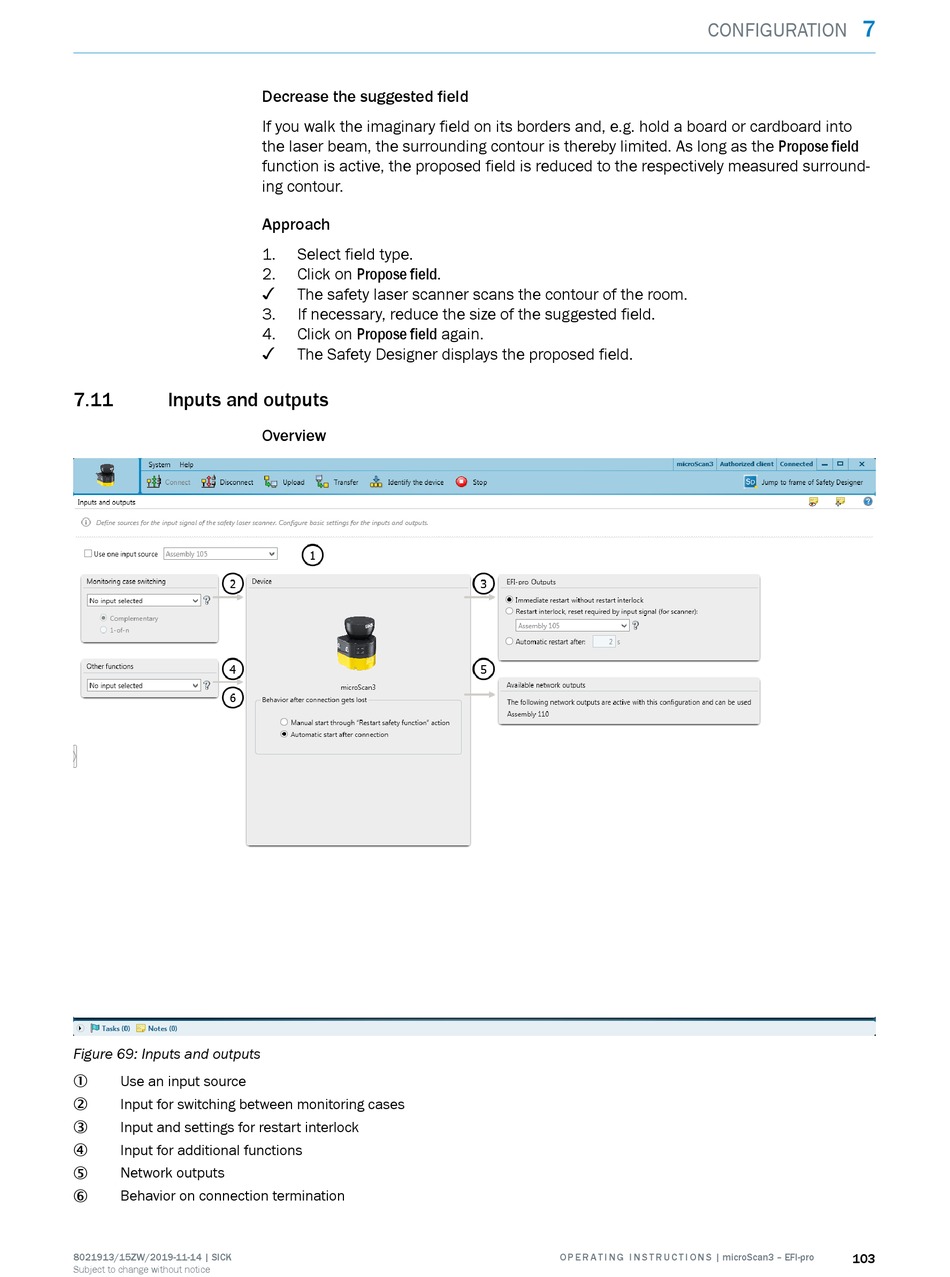

Figure 69: Inputs and outputs
Use an input source
1
Input for switching between monitoring cases
2
Input and settings for restart interlock
3
Input for additional functions
4
Network outputs
5
Behavior on connection termination
6
8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
Decrease the suggested field
If you walk the imaginary field on its borders and, e.g. hold a board or cardboard into
the laser beam, the surrounding contour is thereby limited. As long as the Propose field
function is active, the proposed field is reduced to the respectively measured surround‐
ing contour.
Approach
1. Select field type.
2. Click on Propose field.
✓
The safety laser scanner scans the contour of the room.
3. If necessary, reduce the size of the suggested field.
4. Click on Propose field again.
✓
The Safety Designer displays the proposed field.
