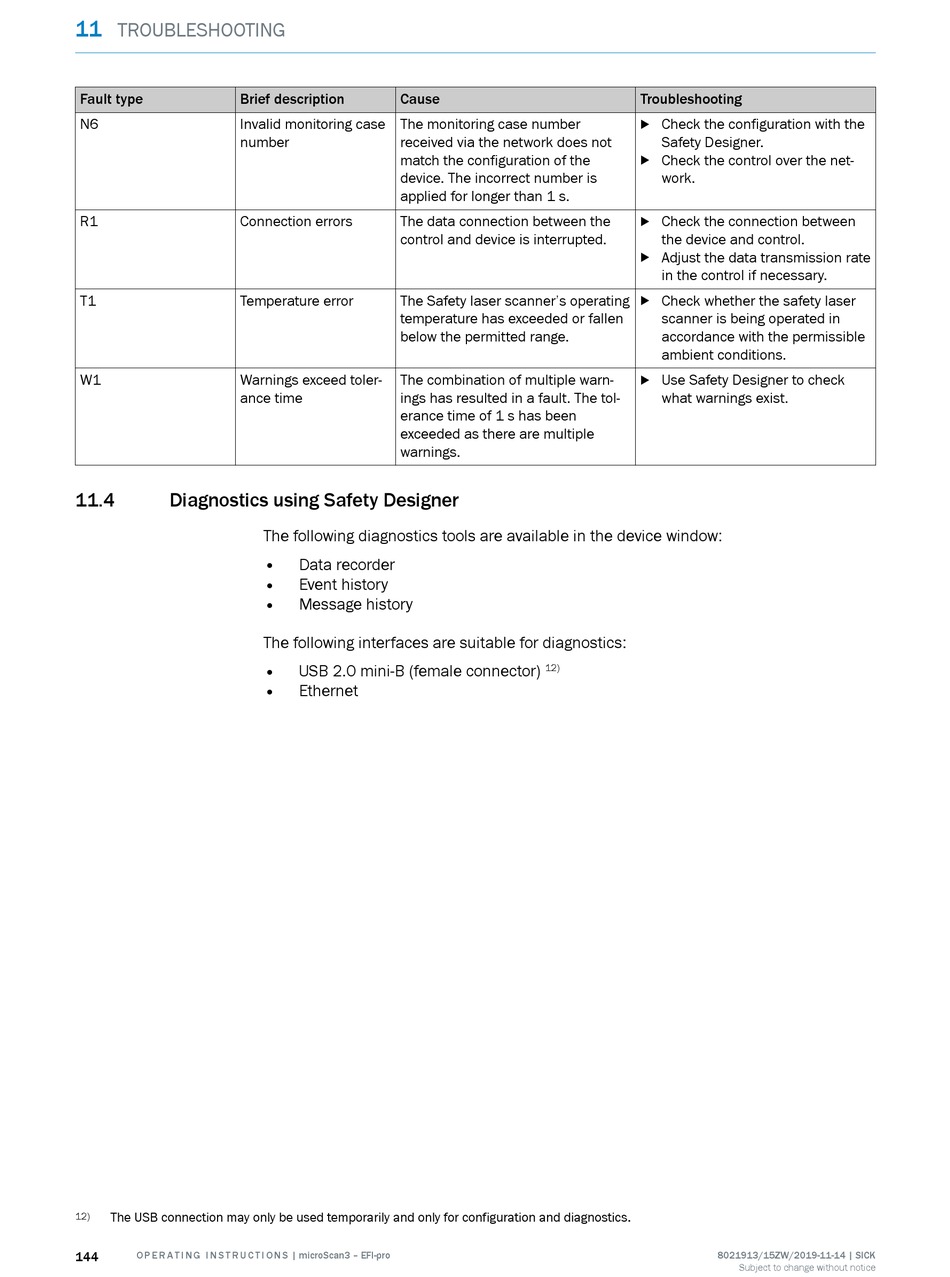

11
TROUBLESHOOTING
Fault type Brief description
N6 Invalid monitoring case
number
R1 Connection errors
T1 Temperature error
W1 Warnings exceed toler‐
ance time
11.4

Diagnostics using Safety Designer

The USB connection may only be used temporarily and only for configuration and diagnostics.
12)
144 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
Cause
The monitoring case number
received via the network does not
match the configuration of the
device. The incorrect number is
applied for longer than 1 s.
The data connection between the
control and device is interrupted.
The Safety laser scanner's operating
temperature has exceeded or fallen
below the permitted range.
The combination of multiple warn‐
ings has resulted in a fault. The tol‐
erance time of 1 s has been
exceeded as there are multiple
warnings.
The following diagnostics tools are available in the device window:
•

Data recorder

•

Event history

•

Message history

The following interfaces are suitable for diagnostics:
• USB 2.0 mini-B (female connector)
• Ethernet
Troubleshooting
b Check the configuration with the
Safety Designer.
b Check the control over the net‐
work.
b Check the connection between
the device and control.
b Adjust the data transmission rate
in the control if necessary.
b Check whether the safety laser
scanner is being operated in
accordance with the permissible
ambient conditions.
b Use Safety Designer to check
what warnings exist.
12)
