16

ACCESSORIES

16 Accessories
16.1

Brackets

170 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
Table 50: Brackets ordering information
Part

Mounting kit 1a

Mounting kit 1b (with protection for optics cover)
Mounting kit 2a (alignment bracket, alignment with cross-wise axis and
depth axis possible, distance between mounting surface and device:
22.3 mm, only in conjunction with mounting kit 1a or 1b)
Mounting kit 2b (alignment bracket, alignment with cross-wise axis and
depth axis possible, distance between mounting surface and device:
52.3 mm, only in conjunction with mounting kit 1a or 1b)
Heavy duty mounting kit
Dimensional drawings
3
73
1
118,3

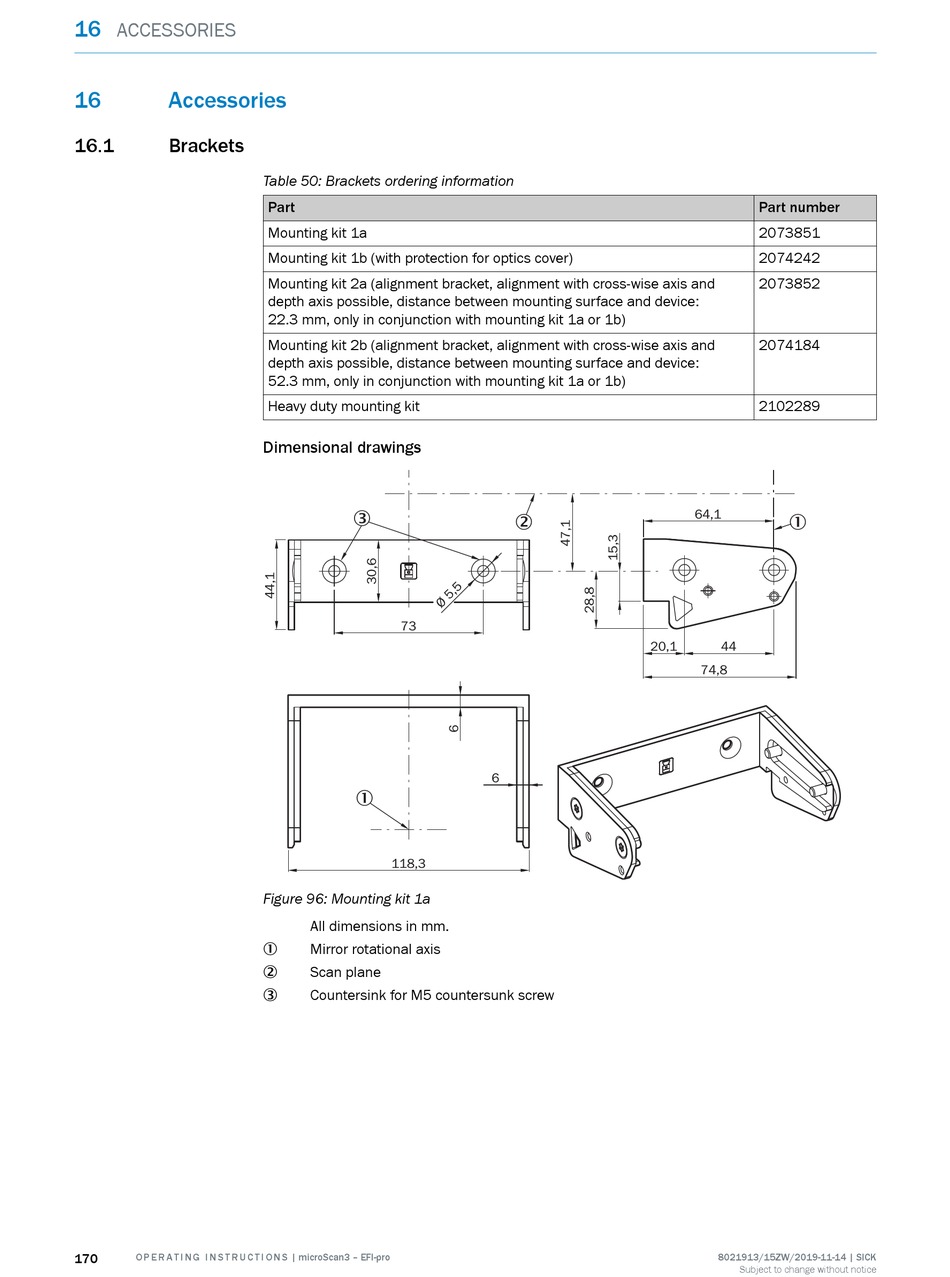

Figure 96: Mounting kit 1a
All dimensions in mm.
Mirror rotational axis
1
Scan plane
2
Countersink for M5 countersunk screw
3
2
20,1
6
Part number
2073851
2074242
2073852
2074184
2102289
64,1
1
44
74,8
8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
