16
ACCESSORIES
16.2

Connection technology

172 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
Mirror rotational axis
1
Scan plane
2

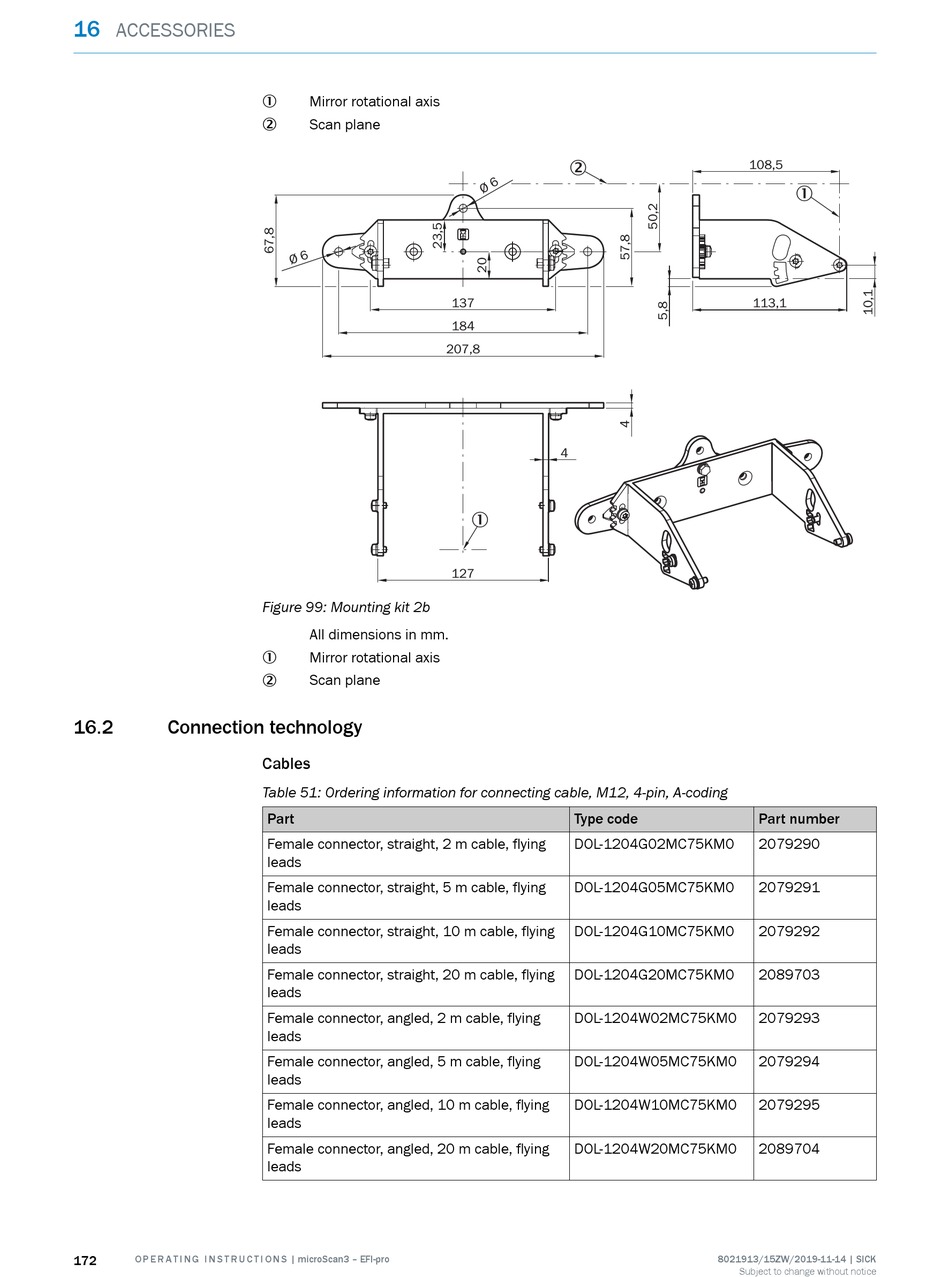

Figure 99: Mounting kit 2b
All dimensions in mm.
Mirror rotational axis
1
Scan plane
2
Cables
Table 51: Ordering information for connecting cable, M12, 4-pin, A-coding
Part
Female connector, straight, 2 m cable, flying
leads
Female connector, straight, 5 m cable, flying
leads
Female connector, straight, 10 m cable, flying
leads
Female connector, straight, 20 m cable, flying
leads
Female connector, angled, 2 m cable, flying
leads
Female connector, angled, 5 m cable, flying
leads
Female connector, angled, 10 m cable, flying
leads
Female connector, angled, 20 m cable, flying
leads
2
137
184
207,8
4
1
127
Type code
DOL-1204G02MC75KM0
DOL-1204G05MC75KM0
DOL-1204G10MC75KM0
DOL-1204G20MC75KM0
DOL-1204W02MC75KM0
DOL-1204W05MC75KM0
DOL-1204W10MC75KM0
DOL-1204W20MC75KM0
108,5
1
113,1
Part number
2079290
2079291
2079292
2089703
2079293
2079294
2079295
2089704
