7.12

Monitoring cases

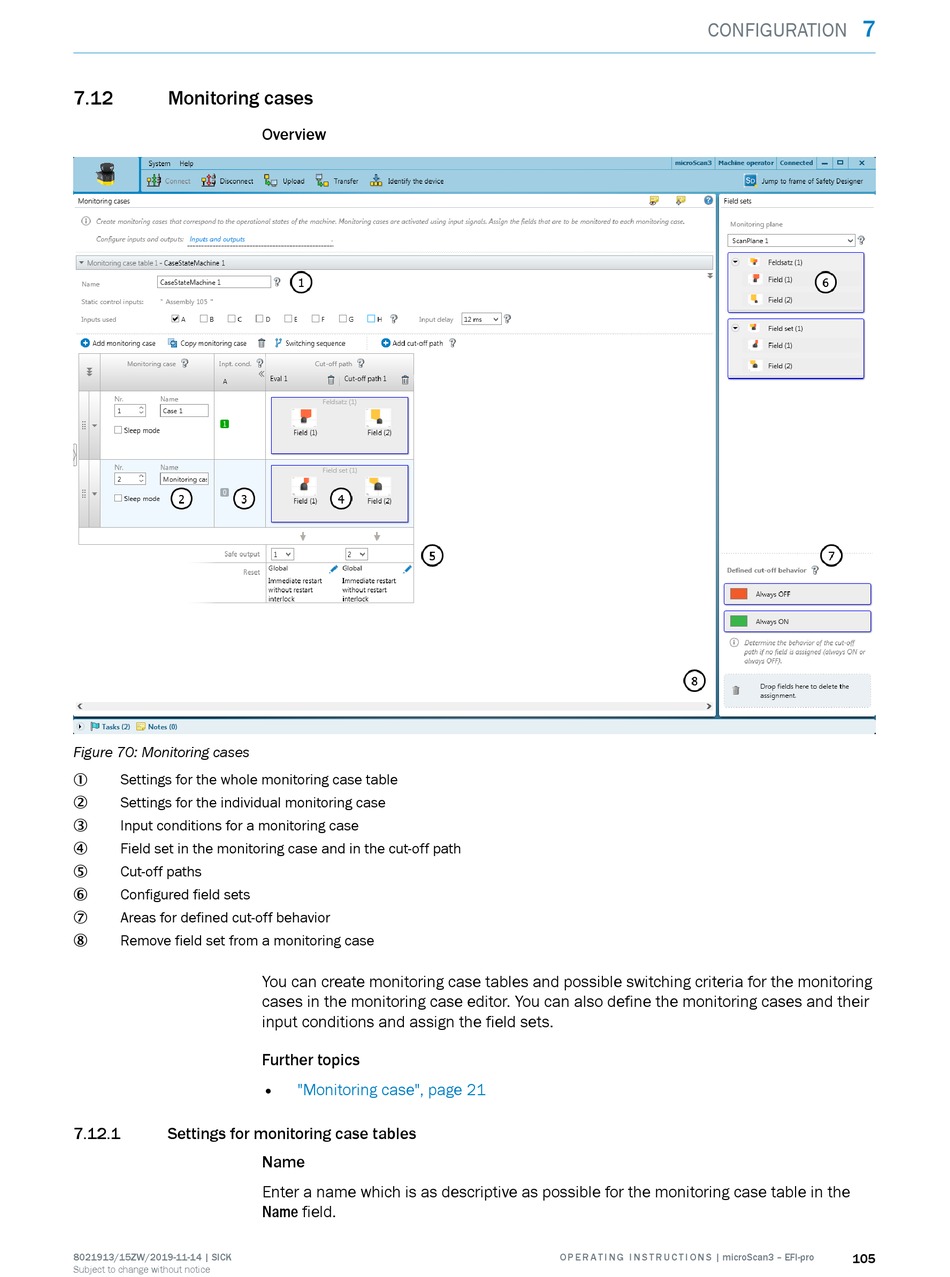

Figure 70: Monitoring cases
Settings for the whole monitoring case table
1
Settings for the individual monitoring case
2
Input conditions for a monitoring case
3
Field set in the monitoring case and in the cut-off path
4
Cut-off paths
5
Configured field sets
6
Areas for defined cut-off behavior
7
Remove field set from a monitoring case
8
7.12.1

Settings for monitoring case tables

8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
Overview
You can create monitoring case tables and possible switching criteria for the monitoring
cases in the monitoring case editor. You can also define the monitoring cases and their
input conditions and assign the field sets.
Further topics
• "Monitoring case", page 21
Name
Enter a name which is as descriptive as possible for the monitoring case table in the
Name field.
