Buttons
1
3

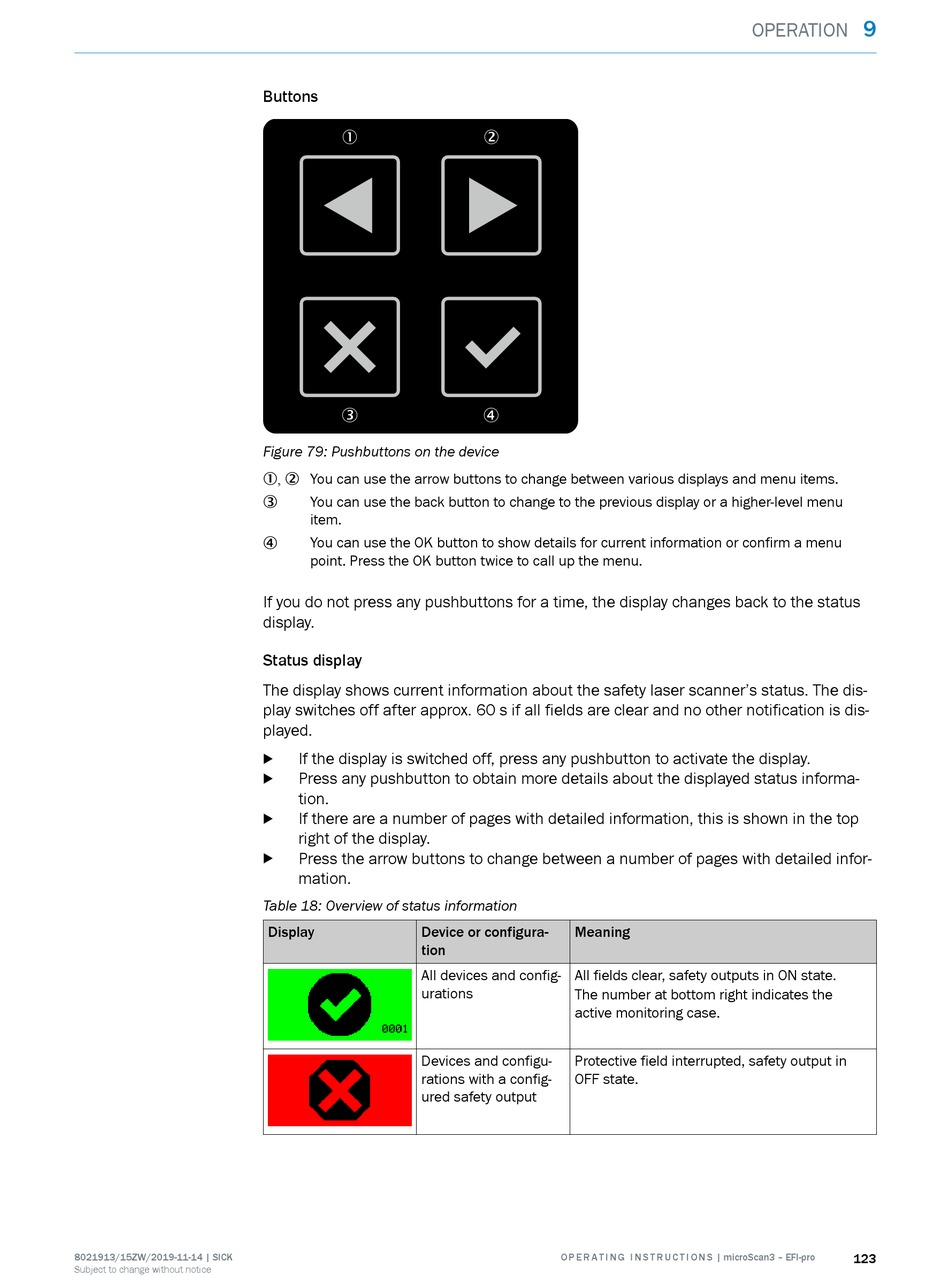

Figure 79: Pushbuttons on the device
1, 2 You can use the arrow buttons to change between various displays and menu items.
You can use the back button to change to the previous display or a higher-level menu
3
item.
You can use the OK button to show details for current information or confirm a menu
4
point. Press the OK button twice to call up the menu.
If you do not press any pushbuttons for a time, the display changes back to the status
display.
Status display
The display shows current information about the safety laser scanner's status. The dis‐
play switches off after approx. 60 s if all fields are clear and no other notification is dis‐
played.
If the display is switched off, press any pushbutton to activate the display.
b
Press any pushbutton to obtain more details about the displayed status informa‐
b
tion.
If there are a number of pages with detailed information, this is shown in the top
b
right of the display.
Press the arrow buttons to change between a number of pages with detailed infor‐
b
mation.
Table 18: Overview of status information
Display Device or configura‐
tion
All devices and config‐
urations
Devices and configu‐
rations with a config‐
ured safety output
2
4
Meaning
All fields clear, safety outputs in ON state.
The number at bottom right indicates the
active monitoring case.
Protective field interrupted, safety output in
OFF state.
