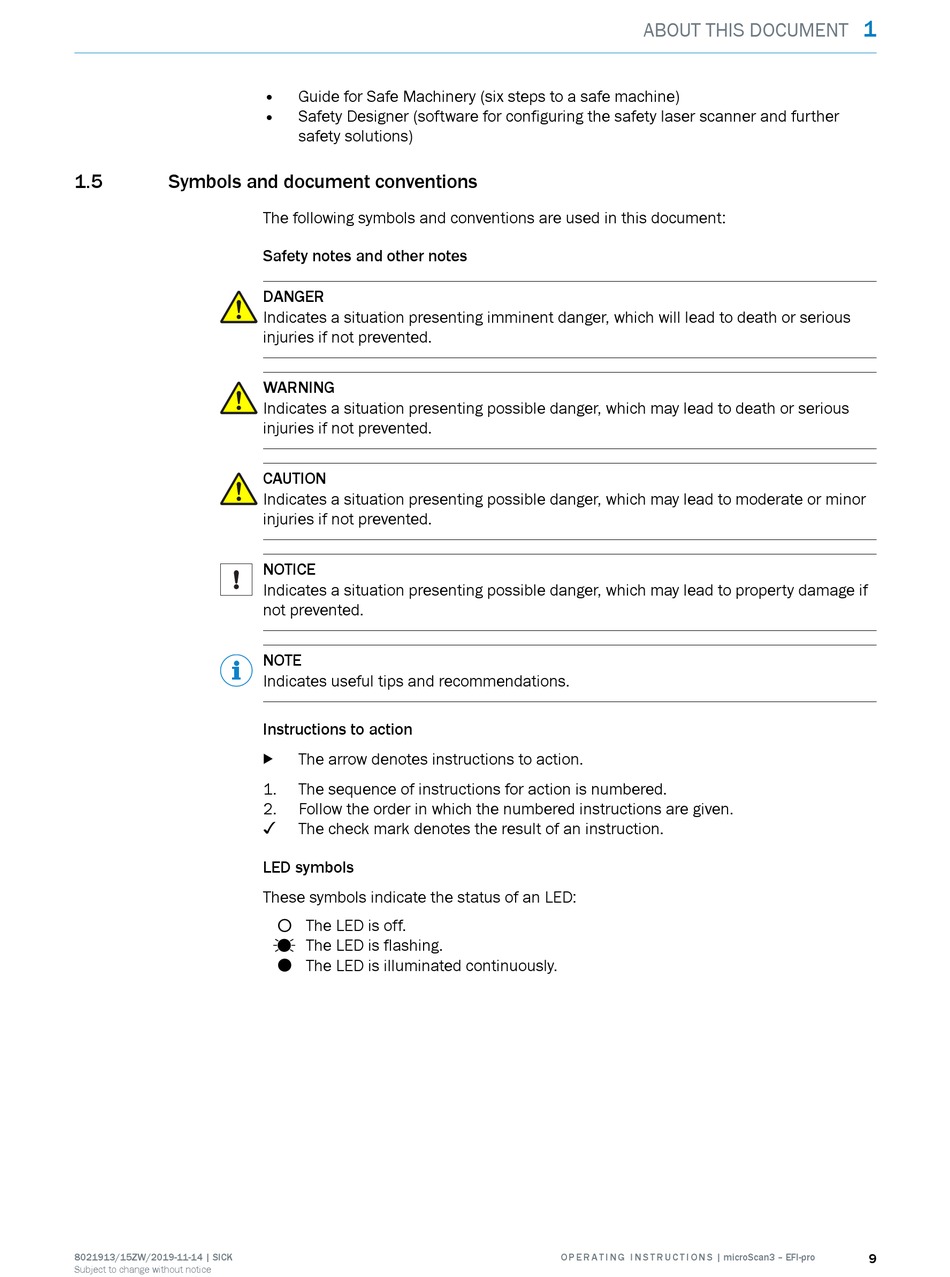

Symbols and document conventions

8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
• Guide for Safe Machinery (six steps to a safe machine)
• Safety Designer (software for configuring the safety laser scanner and further
safety solutions)
The following symbols and conventions are used in this document:
Safety notes and other notes
DANGER
Indicates a situation presenting imminent danger, which will lead to death or serious
injuries if not prevented.
WARNING
Indicates a situation presenting possible danger, which may lead to death or serious
injuries if not prevented.
CAUTION
Indicates a situation presenting possible danger, which may lead to moderate or minor
injuries if not prevented.
NOTICE
Indicates a situation presenting possible danger, which may lead to property damage if
not prevented.
NOTE
Indicates useful tips and recommendations.
Instructions to action
The arrow denotes instructions to action.
b
1. The sequence of instructions for action is numbered.
2. Follow the order in which the numbered instructions are given.
✓
The check mark denotes the result of an instruction.
LED symbols
These symbols indicate the status of an LED:
o The LED is off.
Ö The LED is flashing.
O The LED is illuminated continuously.
