7.3 Connecting Diagram

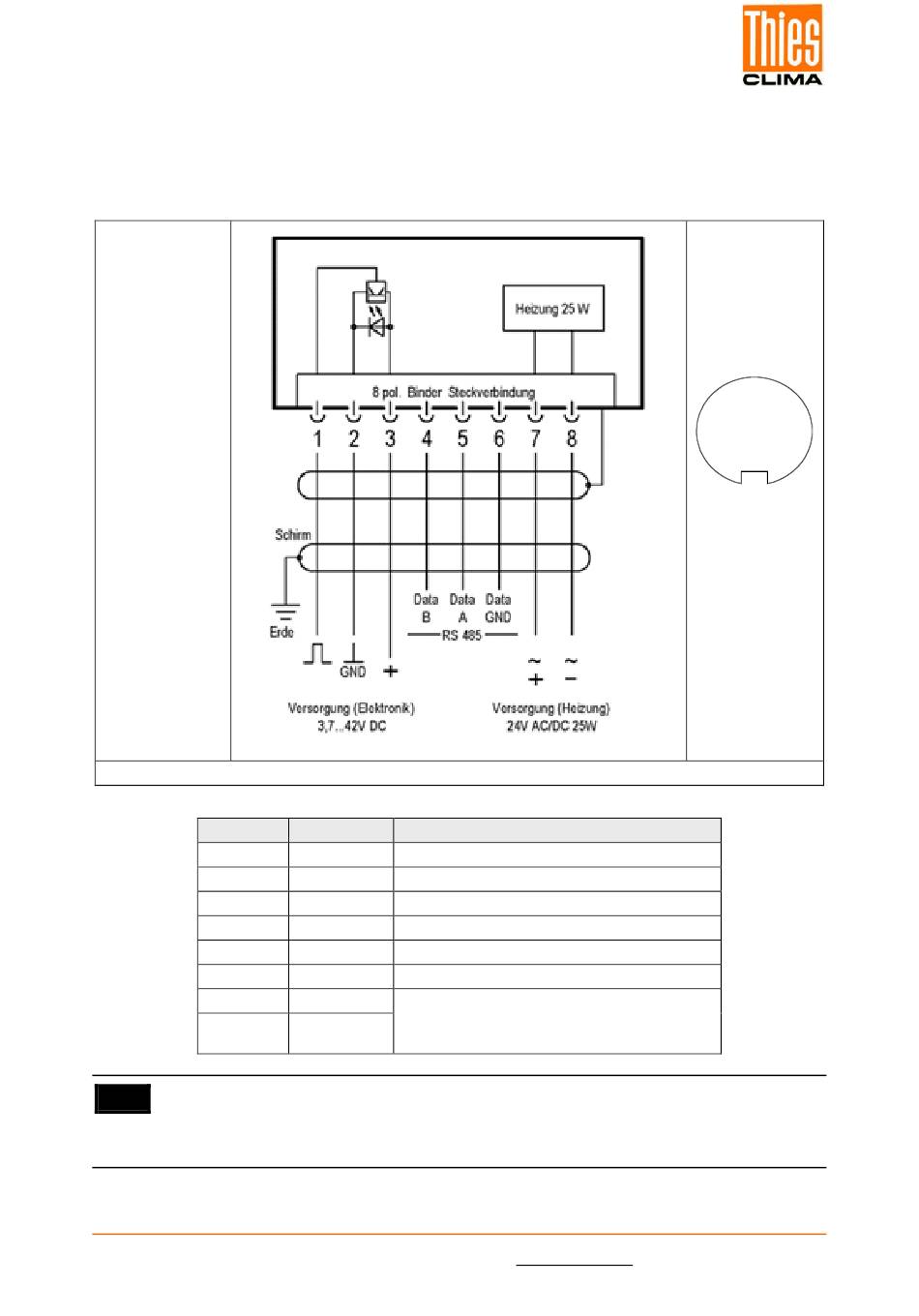

Connection diagram acc. to chapter 7.2.2.1 no.1, 3 and 4:
Order– No.
4.3352.00.400
4.3352.00.401
4.3352.10.400*
4.3352.10.401*
*Order-No. 4.3352.10.xxx (without heating) Pin 7 u. 8 are not connected
Contact
1
2
3
4
5
6
7
8
Note
:
The signal "Data GND" (pin 6) is internally connected via a 47ohm resistor to the supply
ground (pin 2)!
© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany
Phone +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com · www.thiesclima.com
Name Function
SIG Signal (rectangle)
GND Ground
+Us Supply 3.7 ... 42V DC
Data- RS485 Data -
Data+ RS485 Data +
Data GND RS485 GND
HZG Heating supply:
voltage:
HZG
power:
24V AC/DC
25W
View on the sol-
dered joint of
the counter
plug
2
5 4
3 1
8
7 6
