7.2.3 Plug and Cable Mounting

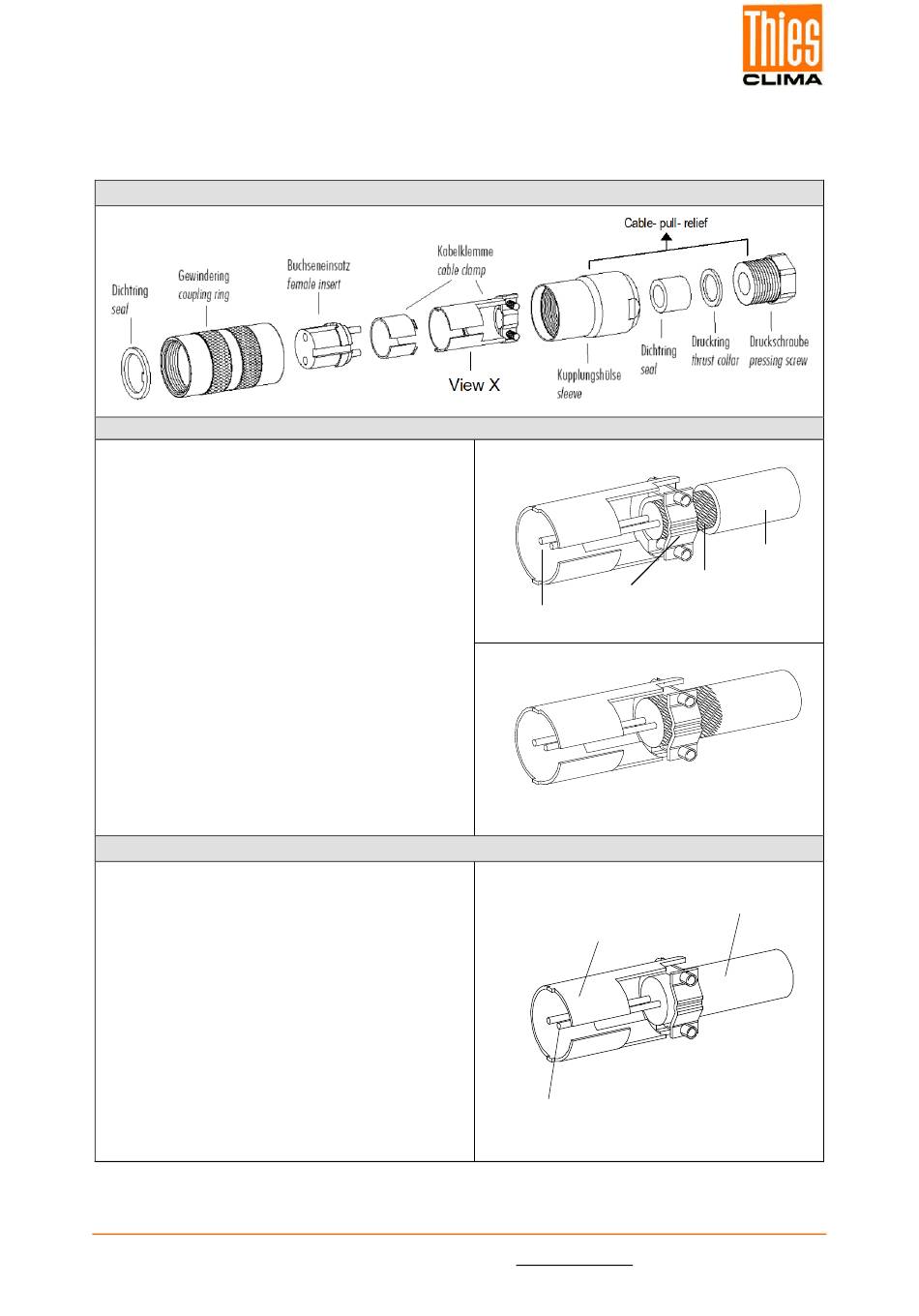

Coupling socket, Type: Binder, Serial 423, EMC with cable clamp
Cable connection: with cable shield
1. Stringing parts on cable acc. to plan given
above.
2. Stripping cable sheath 20mm
Cutting uncovered shield 15mm
Stripping wire 5mm.
Cable mounting 1
Putting shrink hose or insolating tape be-
tween wire and shield.
Cable mounting 2
If cable diameter permits, put the shield
backward on the cable sheath.
3. Soldering wire to the insert, positioning
shield in cable clamp.
4. Screwing-on cable clamp.
5. Assembling remaining parts acc. to upper
plan.
6. Tightening pull-relief of cable by screw-
wrench (SW16 und 17).
Cable connection: without cable shield
1. Stringing parts on cable acc. to plan given
above.
2. Stripping cable sheath 20mm
3. Cutting uncovered shield 20mm
4. Stripping wire 5mm.
5. Soldering wire to the insert.
6. Positioning shield in cable clamp.
7. Screwing-on cable clamp.
8. Assembling remaining parts acc. to upper
plan.
9. Tightening pull-relief of cable by screw-
wrench (SW16 und 17).
© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany
Phone +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com · www.thiesclima.com
Cable mounting 1
View X
Cable clamp
wire
Cable mounting 2
View X
Cable clamp
Wire
Cable shield
shield
Cable sheath
