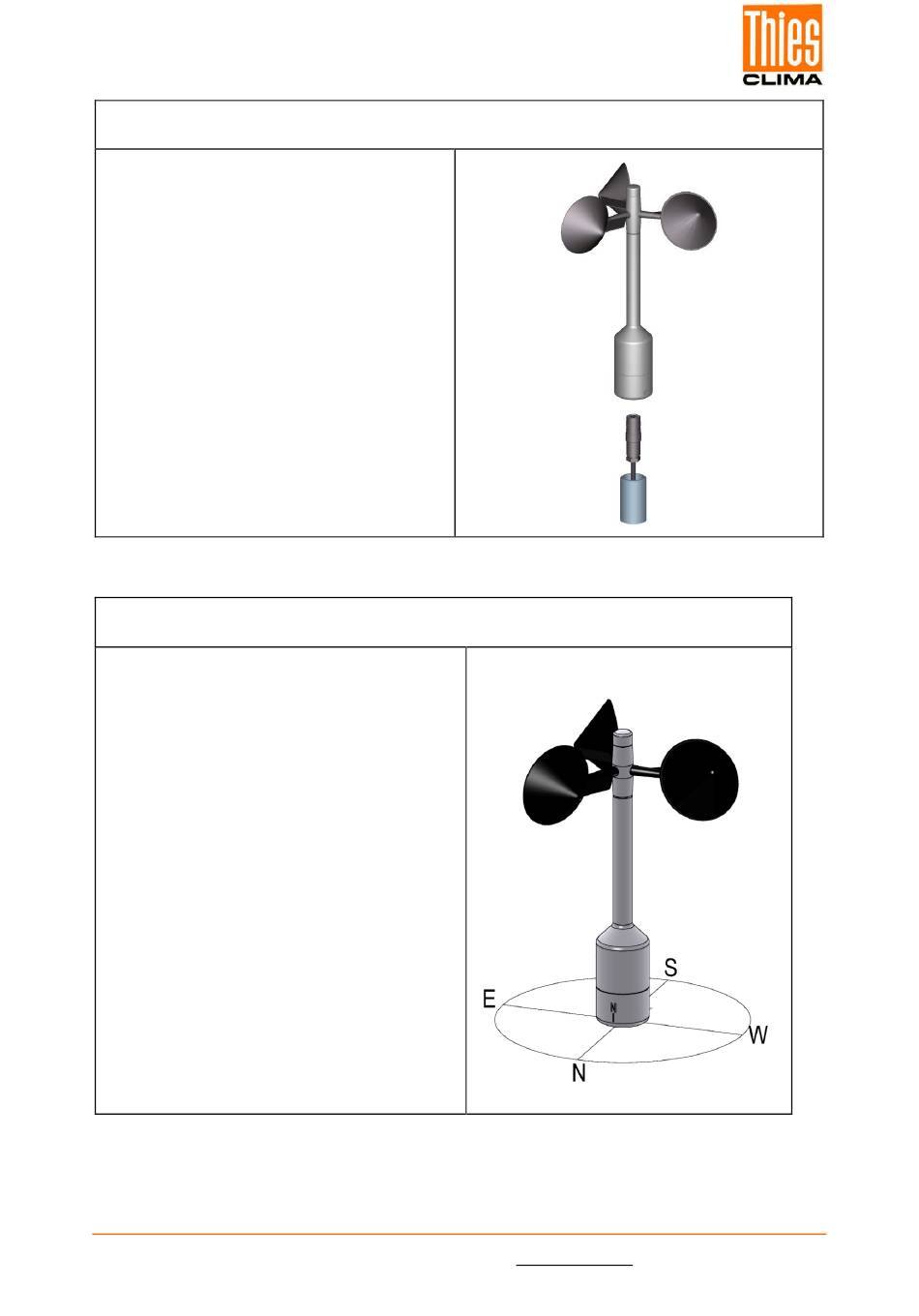

The wind transmitter must be mounted on an instrument carrier, which is suited for the
measurement. For dimensions of wind transmitter please refer to chapter 14.
Tools:
Hexagon socket wrench SW3
(Allen key).
Procedure:
1. Lead a prepared cable with assem-
bled plug through the bore hole of
mast, tube, arm etc., and connect it
to the wind transmitter.
2. Put wind transmitter on mast, tube,
arm etc.
3. Align wind transmitter to "north".
(procedure see chapter 7.1.1)
4. Safeguard the wind transmitter by
two M6-Allen head screws.

7.1.1 North Alignment

For the precise determination of the Inclination angle the Wind Transmitter must be
aligned northwards (geographical north).
Tools:
Hexagon socket wrench size 3
(Allen key).
Procedure:
1. Detect a prominent object in the sur-
rounding area (tree, building etc.) in
north direction by means of a com-
pass.
2. Via the north marking (N) and an im-
aginary north-south axis the Wind
Transmitter is to be located on the
prominent object.
3. Align Wind Transmitter.
The north marking must indicate to
the geographic north.
4. In case of match the wind transmitter
is to be secured by an M6- hexagon
socket screw.
