14 Temperature-Controlled Accupyc; Attach A Circulating Bath - Micromeritics ACCUPYC II 1345 Operator's Manual

14 T
EMPERATURE
A temperature controlled AccuPyc must be connected to a circulating bath (not provided by
Micromeritics). Refer to the manufacturer operator manual for circulating bath operating instructions.
A C
TTACH A IRCULATING
The rear panel of the temperature-controlled AccuPyc contains connections for a circulating bath.
Provided in the accessory kit are two hose fittings and a four foot length of tubing.
1. Power off the controlling unit.
2. Remove the plugs from the In port and the Out port.
3. Insert the provided hose fittings into each connector.
4. Cut the piece of 4 ft. tubing into two equal pieces of 2 feet each.
5. Install the tubing on the In and Out connectors.
6. Install the other end of the Out tubing to the Inlet connection of the bath circulator.
7. Install the other end of the In tubing to the Outlet connection of the bath circulator.
8. Set the temperature using the appropriate controls on the bath circulator.
AccuPyc II 1345 Operator Manual
134-42851-01 (Rev A) — Jan 2021
-C
ONTROLLED
B
ATH

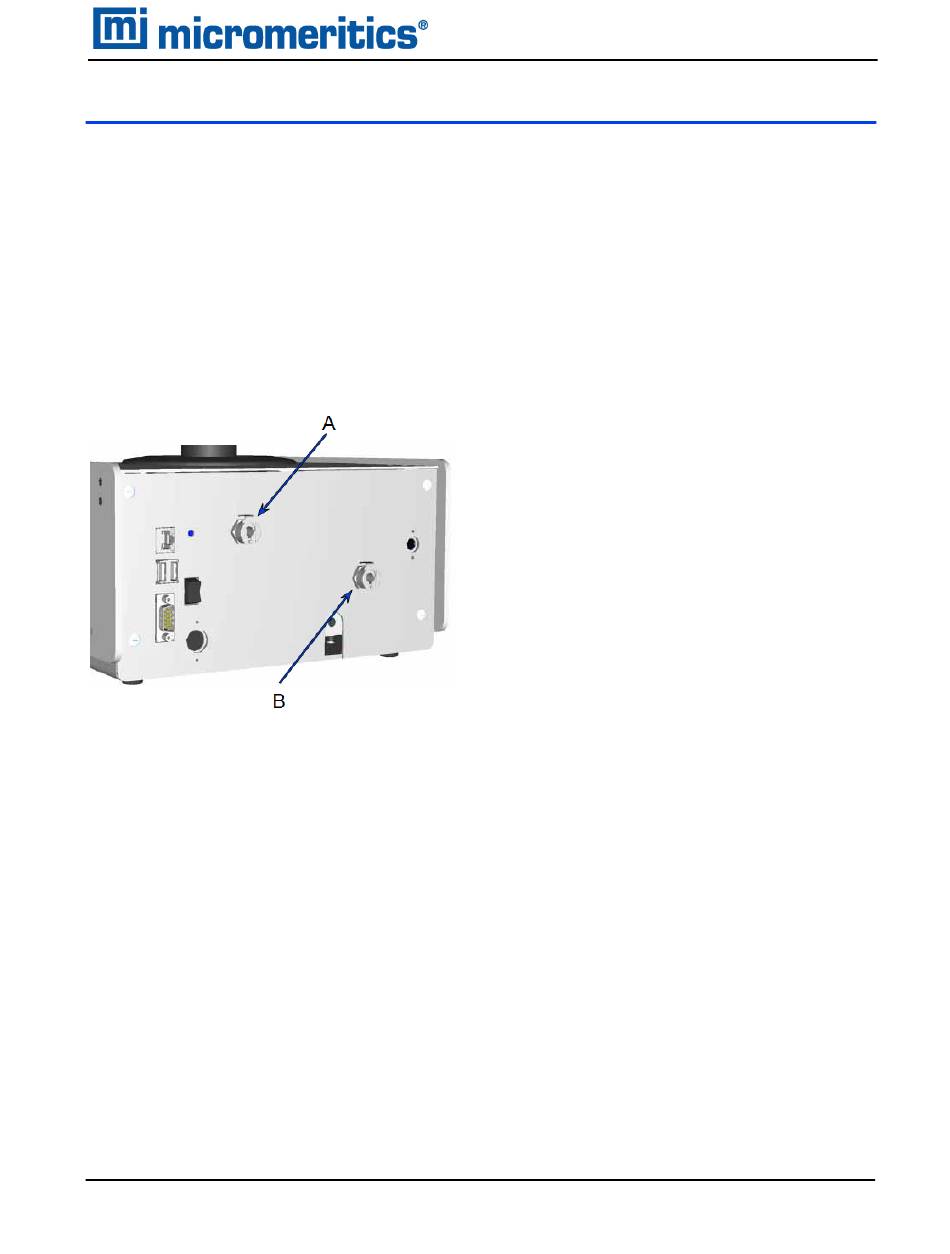

A. Circulating bath IN port
B. Circulating bath OUT port

14 Temperature-Controlled AccuPyc

A P
CCU YC
14 - 1
