Acclarix AX4 Diagnostic Ultrasound System User Manual

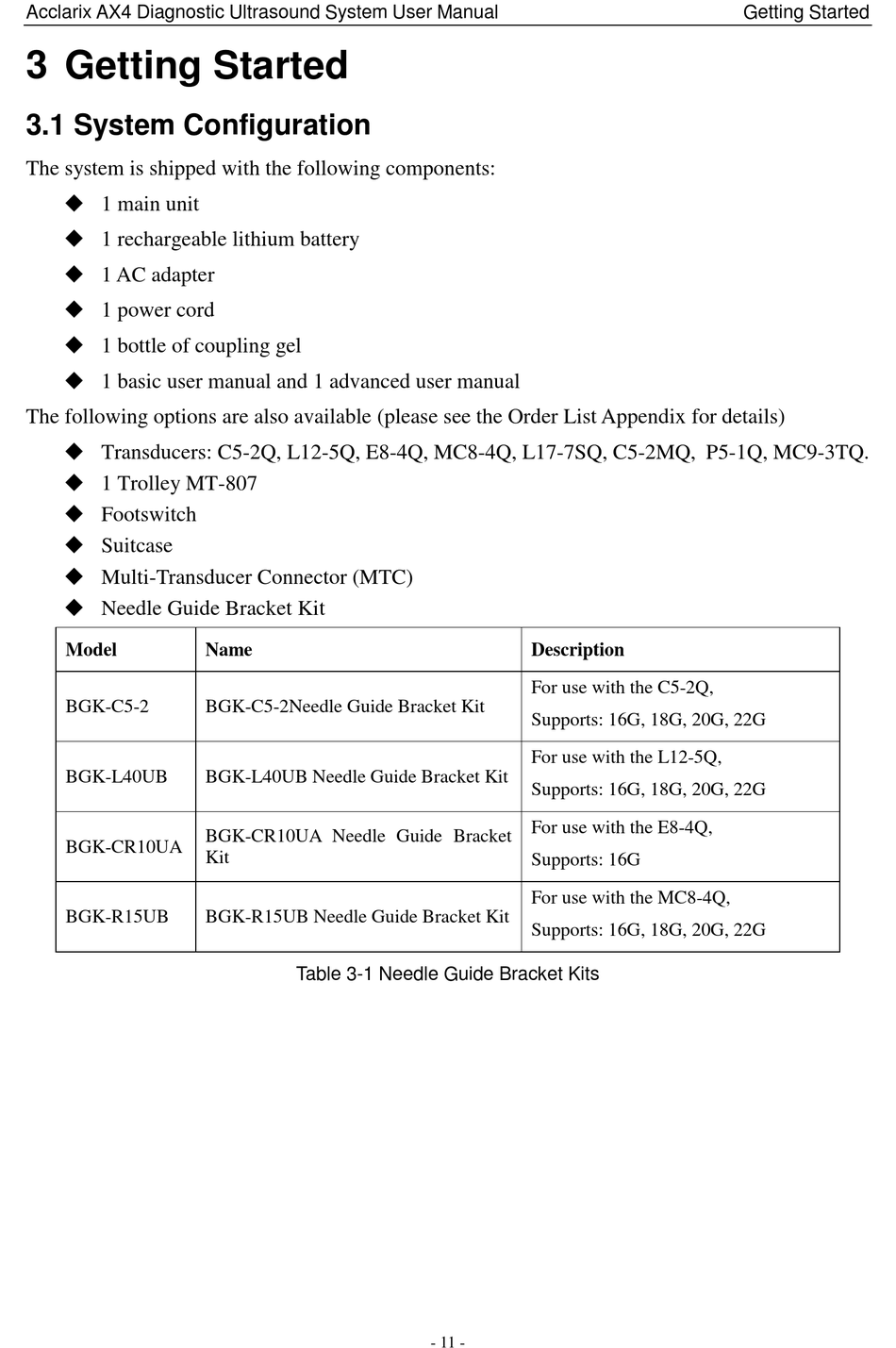

3 Getting Started

3.1 System Configuration

The system is shipped with the following components:
 1 main unit
 1 rechargeable lithium battery
 1 AC adapter
 1 power cord
 1 bottle of coupling gel
 1 basic user manual and 1 advanced user manual
The following options are also available (please see the Order List Appendix for details)
 Transducers: C5-2Q, L12-5Q, E8-4Q, MC8-4Q, L17-7SQ, C5-2MQ, P5-1Q, MC9-3TQ.
 1 Trolley MT-807
 Footswitch
 Suitcase
 Multi-Transducer Connector (MTC)
 Needle Guide Bracket Kit
Model
BGK-C5-2
BGK-L40UB
BGK-CR10UA
BGK-R15UB
Name
BGK-C5-2Needle Guide Bracket Kit
BGK-L40UB Needle Guide Bracket Kit
BGK-CR10UA Needle Guide Bracket
Kit
BGK-R15UB Needle Guide Bracket Kit
Table 3-1 Needle Guide Bracket Kits
Description
For use with the C5-2Q,
Supports: 16G, 18G, 20G, 22G
For use with the L12-5Q,
Supports: 16G, 18G, 20G, 22G
For use with the E8-4Q,
Supports: 16G
For use with the MC8-4Q,
Supports: 16G, 18G, 20G, 22G
- 11 -
