In addition to the foregoing, the rear panel also has LEDs linked to the Switch Ethernet interfaces.
3.1.2.1 LEDs

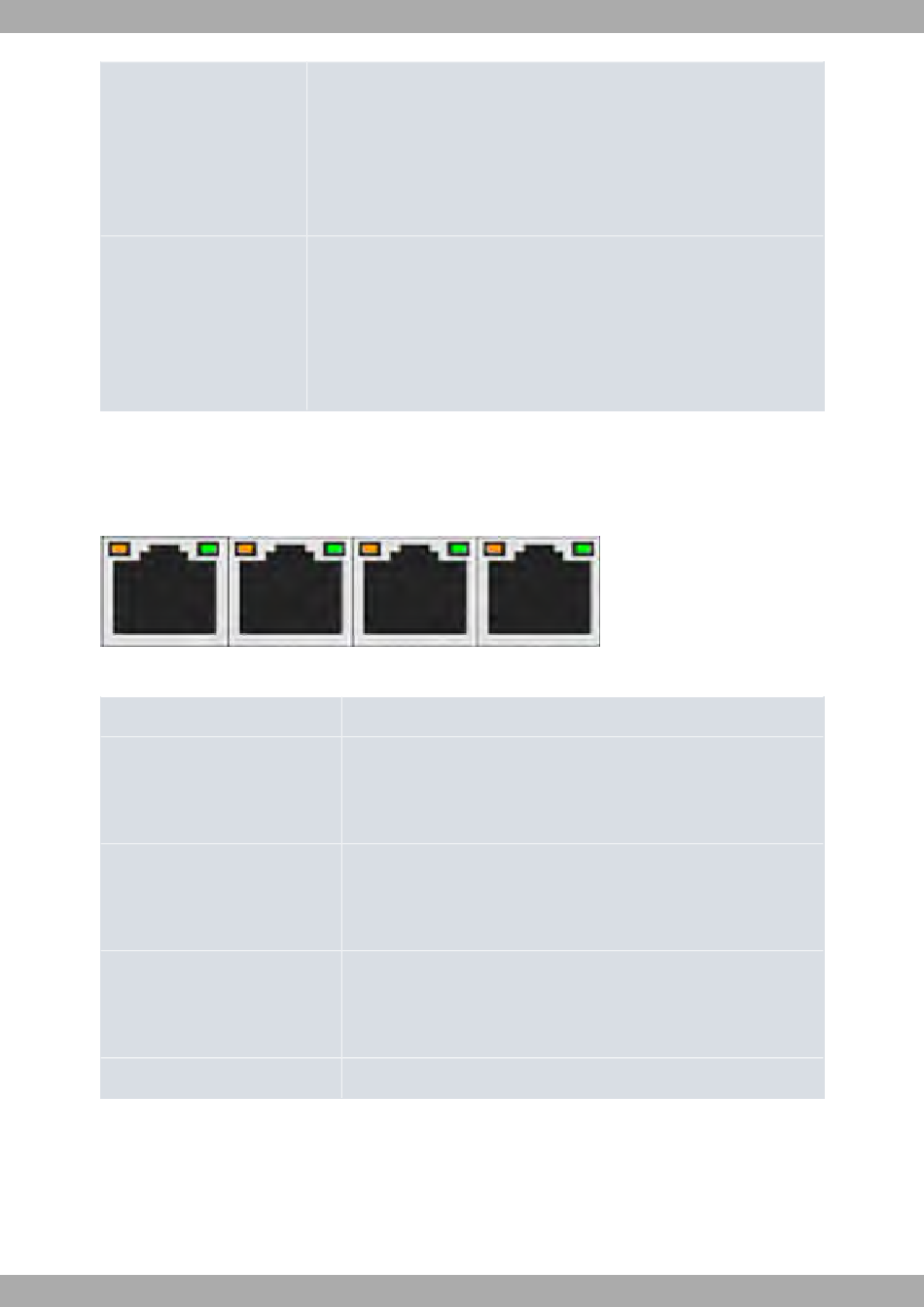

The following figure shows the router's Ethernet switch LED indicators:
Switch LEDs
Fig. 17:
Switch LED indicators
LED
Yellow
Yellow + Green
Green
None
The following figure shows the router's WAN LED indicators, only for the Base-T connector:
M8-Smart
Cell connectors. Depending on the model.
For more information about Cellular interface, refer to:
- WWAN Antenna Connection (Cell connector)
- WWAN Connector on page 29
- Wireless WAN interface on page 33
GPS connector. Depending on the model.
For more information about the GPS interface, refer to:
- Connecting the GPS antenna
- GPS Connector on page 30
- GPS interface on page 33
Description
Connected to 10 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
Connected to 100 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
Connected to 1000 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
The interface is either unavailable, not installed or not registered.
on page 15
on page 17
