3.5.1 Power Source

To connect the power supply to the device, please follow the steps set out in
To avoid electric shocks, residual current circulation and other unwanted effects that affect communications, the fol-
lowing is recommended:
Warning
For safety and EMC purposes, the external power supply must be connected to a grounded power out-
let.
Note
We recommended plugging all interconnected communication devices to the same grounded power
outlet.
3.5.1.1 Connecting
• Ensure that the on/off power supply switch is in the OFF position (0).
• Make sure the power supply is NOT connected to the mains or to the device.
• Connect all data cables.
• Connect the external adapter power cable to the device.
• Connect the adapter power cable to the main supply (wall socket).
• Set the device's on/off power supply switch in the ON position (1).
3.5.1.2 Disconnecting
• Set the on/off power supply switch in the OFF position (0).
• Disconnect the adapter power cable to the main supply (wall socket).
• Remove the power supply cable from the device.
• Disconnect the data cables.

3.6 RST Button

The different RST button features are described below.

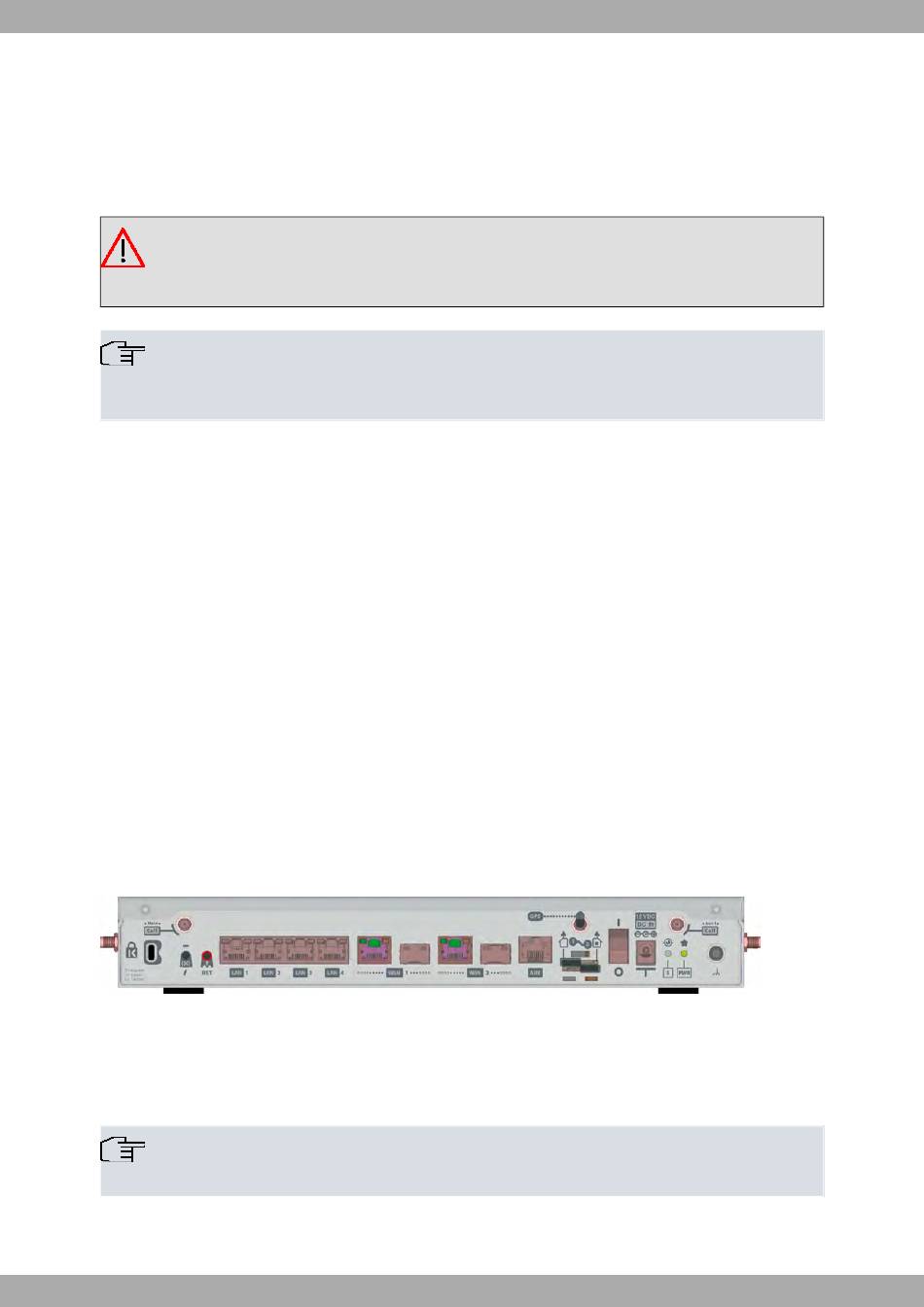

RST button
Fig. 23:

3.6.1 Rebooting the device

Once the device is operating normally, pressing the RST button will force a restart.
Note
It will also force a restart of the embedded Access Point (if present).
M8-Smart
3 Components and Power Supply
Connecting on page 13.
