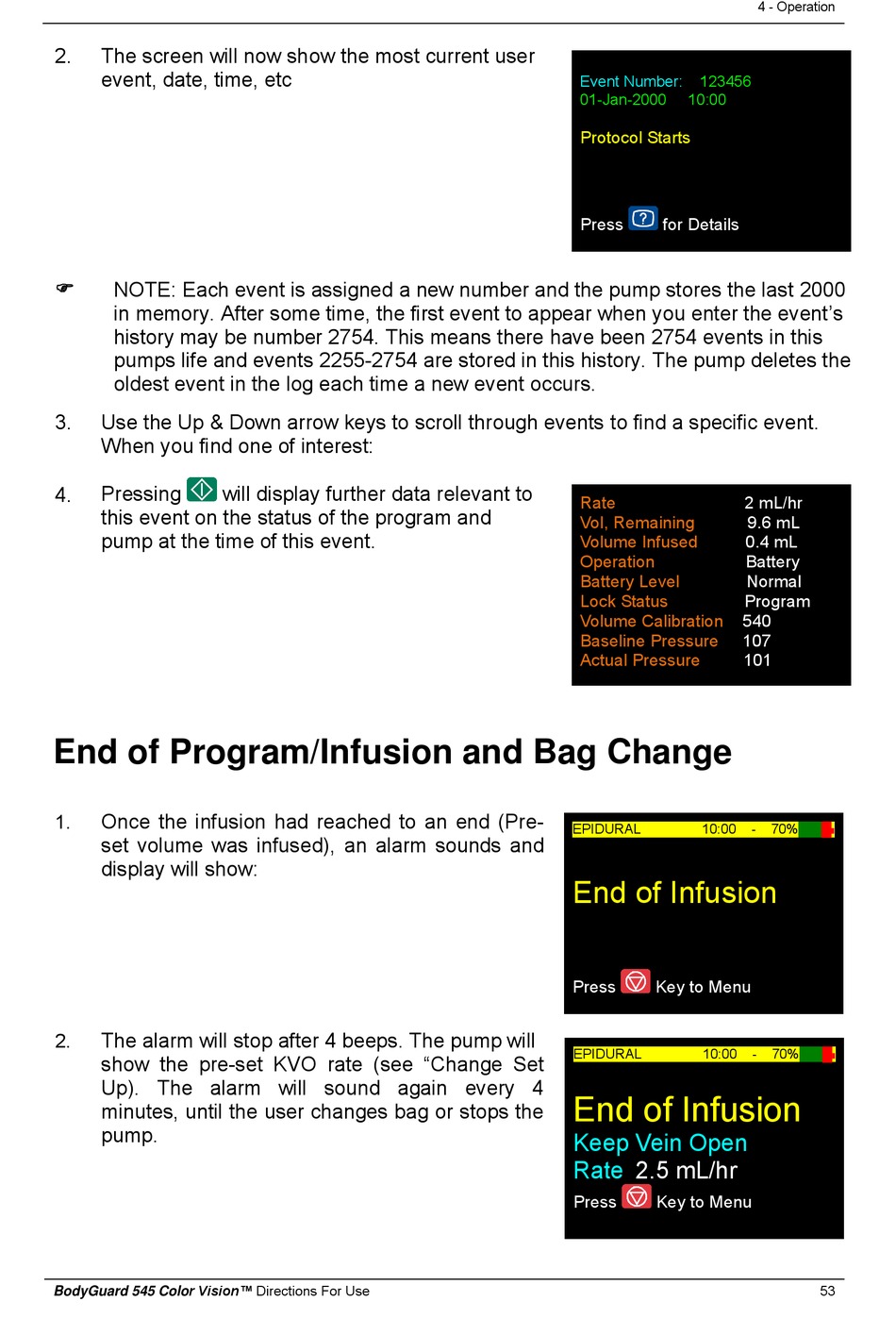

2. The screen will now show the most current user
event, date, time, etc
NOTE: Each event is assigned a new number and the pump stores the last 2000

in memory. After some time, the first event to appear when you enter the event's
history may be number 2754. This means there have been 2754 events in this
pumps life and events 2255-2754 are stored in this history. The pump deletes the
oldest event in the log each time a new event occurs.
3. Use the Up & Down arrow keys to scroll through events to find a specific event.
When you find one of interest:
Pressing will display further data relevant to
4.
this event on the status of the program and
pump at the time of this event.

End of Program/Infusion and Bag Change

Once the infusion had reached to an end (Pre-
1.
set volume was infused), an alarm sounds and
display will show:
The alarm will stop after 4 beeps. The pump will
2.
show the pre-set KVO rate (see "Change Set
Up). The alarm will sound again every 4
minutes, until the user changes bag or stops the
pump.
BodyGuard 545 Color Vision™ Directions For Use
Event Number: 123456
01-Jan-2000 10:00
Protocol Starts
Press for Details
Rate
Vol, Remaining
Volume Infused
Operation
Battery Level
Lock Status
Volume Calibration
Baseline Pressure
Actual Pressure
EPIDURAL 10:00
End of Infusion
Press Key to Menu
EPIDURAL 10:00
End of Infusion
Keep Vein Open
Rate 2.5 mL/hr
Press Key to Menu
4 - Operation
2 mL/hr
9.6 mL
0.4 mL
Battery
Normal
Program
540
107
101
- 70% █
■
- 70% █
■
53
