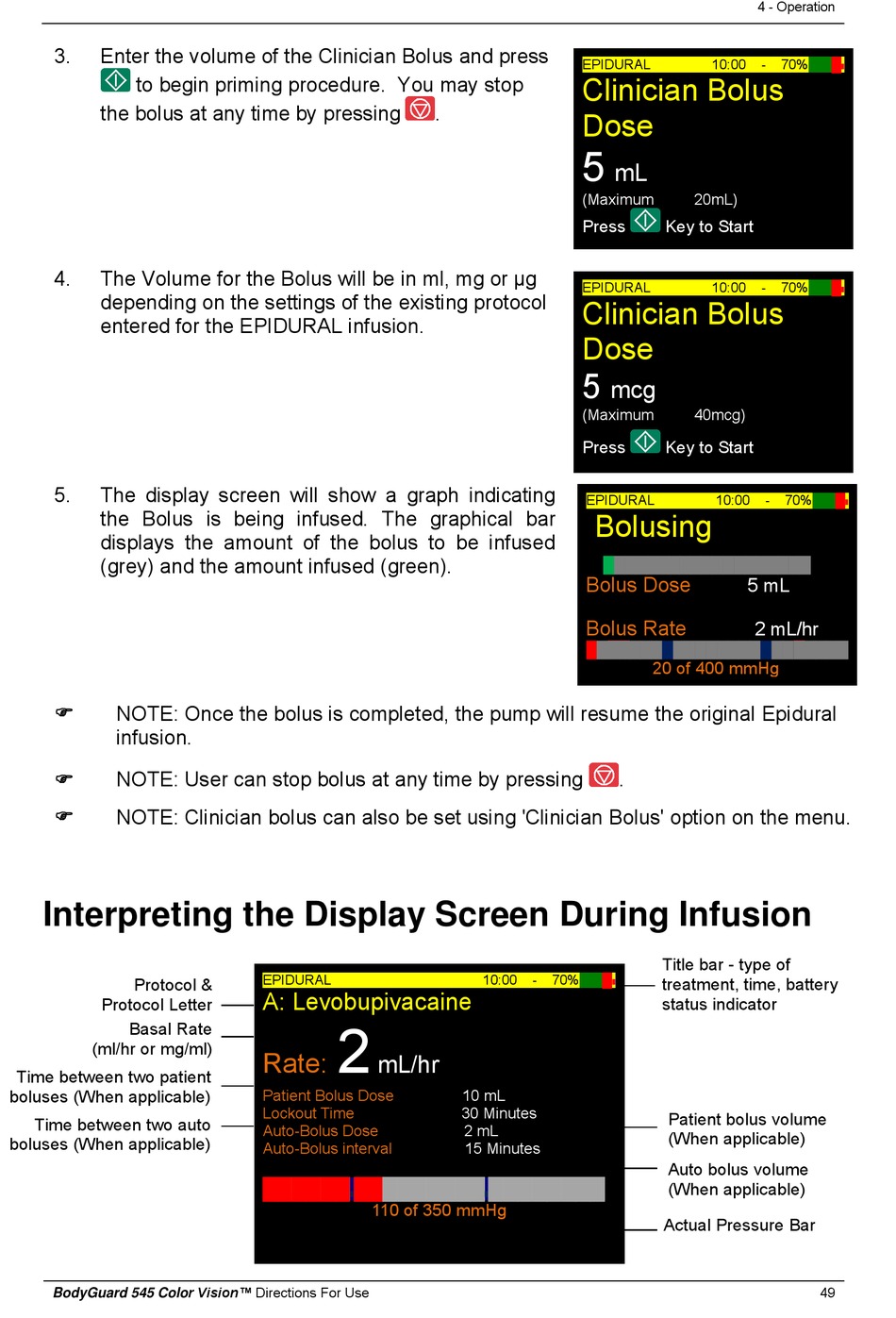

Interpreting The Display Screen During Infusion - CME BodyGuard 545 Color Vision Directions For Use Manual

3. Enter the volume of the Clinician Bolus and press
to begin priming procedure. You may stop
the bolus at any time by pressing
4. The Volume for the Bolus will be in ml, mg or µg
depending on the settings of the existing protocol
entered for the EPIDURAL infusion.
5. The display screen will show a graph indicating
the Bolus is being infused. The graphical bar
displays the amount of the bolus to be infused
(grey) and the amount infused (green).
NOTE: Once the bolus is completed, the pump will resume the original Epidural

infusion.
NOTE: User can stop bolus at any time by pressing

NOTE: Clinician bolus can also be set using 'Clinician Bolus' option on the menu.


Interpreting the Display Screen During Infusion

Protocol &
Protocol Letter
Basal Rate
(ml/hr or mg/ml)
Time between two patient
boluses (When applicable)
Time between two auto
boluses (When applicable)
BodyGuard 545 Color Vision™ Directions For Use
EPIDURAL
A: Levobupivacaine
2
Rate:
mL/hr
Patient Bolus Dose
Lockout Time
Auto-Bolus Dose
Auto-Bolus interval
██████ █████████
█
110 of 350 mmHg
EPIDURAL
Clinician Bolus
.
Dose
5
(Maximum
Press
EPIDURAL
Clinician Bolus
Dose
5
(Maximum
Press
EPIDURAL
Bolusing
███████████████████
Bolus Dose
Bolus Rate
████████████████████████
10:00 - 70% █
10 mL
30 Minutes
2 mL
15 Minutes
████████
█
4 - Operation
10:00 -
mL
20mL)
Key to Start
10:00 -
mcg
40mcg)
Key to Start
10:00 -
5 mL
2 mL/hr
20 of 400 mmHg
.
Title bar - type of
■
treatment, time, battery
status indicator
Patient bolus volume
(When applicable)
Auto bolus volume
(When applicable)
Actual Pressure Bar
70% █
■
70% █
■
70% █
■
