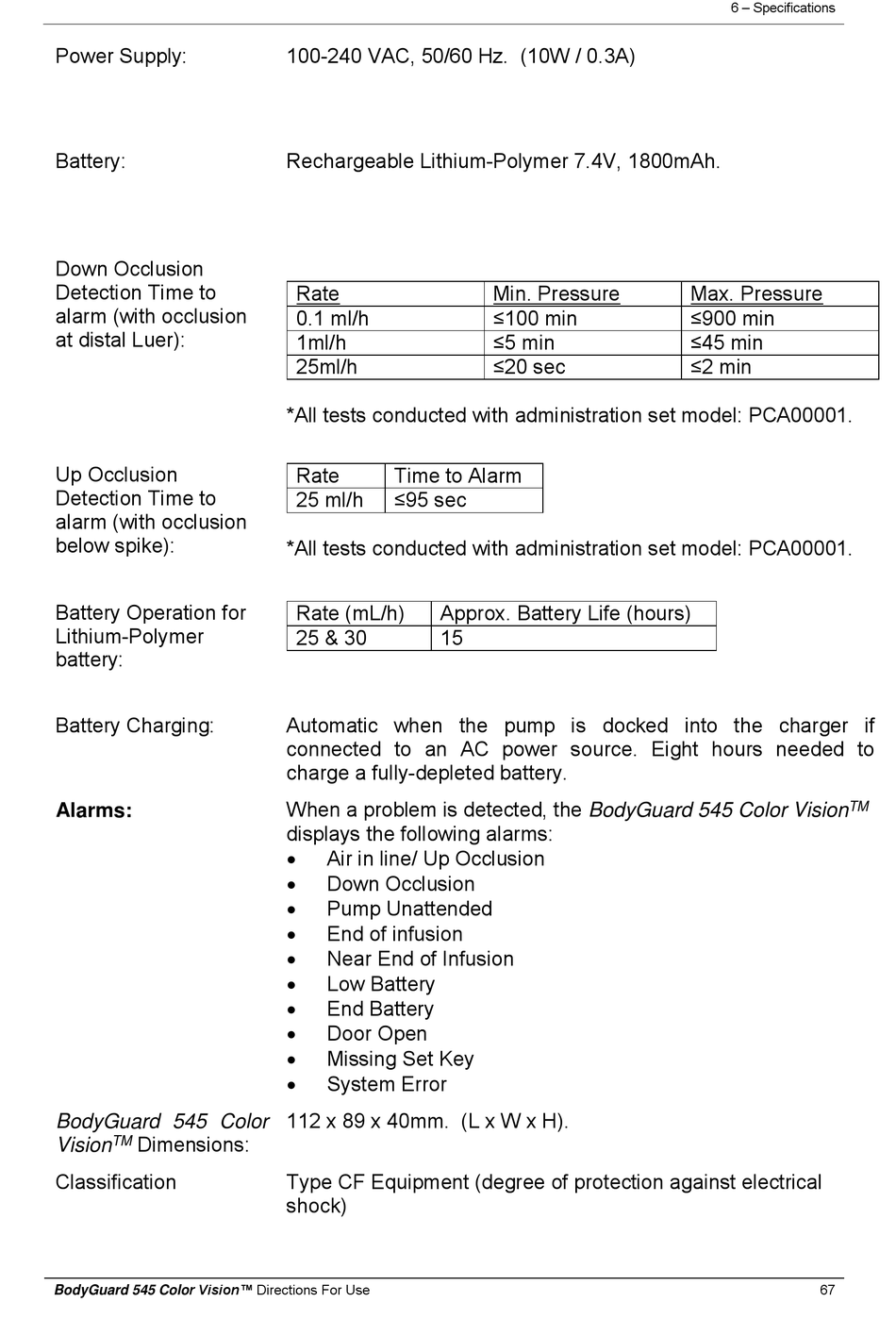

CME BodyGuard 545 Color Vision Directions For Use Manual page 67

Power Supply:
Battery:
Down Occlusion
Detection Time to
alarm (with occlusion
at distal Luer):
Up Occlusion
Detection Time to
alarm (with occlusion
below spike):
Battery Operation for
Lithium-Polymer
battery:
Battery Charging:
Alarms:
BodyGuard 545 Color
Dimensions:
TM
Vision
Classification
BodyGuard 545 Color Vision™ Directions For Use
100-240 VAC, 50/60 Hz. (10W / 0.3A)
Rechargeable Lithium-Polymer 7.4V, 1800mAh.
Rate
0.1 ml/h
1ml/h
25ml/h
*All tests conducted with administration set model: PCA00001.
Rate Time to Alarm
25 ml/h ≤95 sec
*All tests conducted with administration set model: PCA00001.
Rate (mL/h) Approx. Battery Life (hours)
25 & 30 15
Automatic when the pump is docked into the charger if
connected to an AC power source. Eight hours needed to
charge a fully-depleted battery.
When a problem is detected, the BodyGuard 545 Color Vision
displays the following alarms:
 Air in line/ Up Occlusion
 Down Occlusion
 Pump Unattended
 End of infusion
 Near End of Infusion
 Low Battery
 End Battery
 Door Open
 Missing Set Key
 System Error
112 x 89 x 40mm. (L x W x H).
Type CF Equipment (degree of protection against electrical
shock)
Min. Pressure
≤100 min
≤5 min
≤20 sec
6 – Specifications
Max. Pressure
≤900 min
≤45 min
≤2 min
TM
