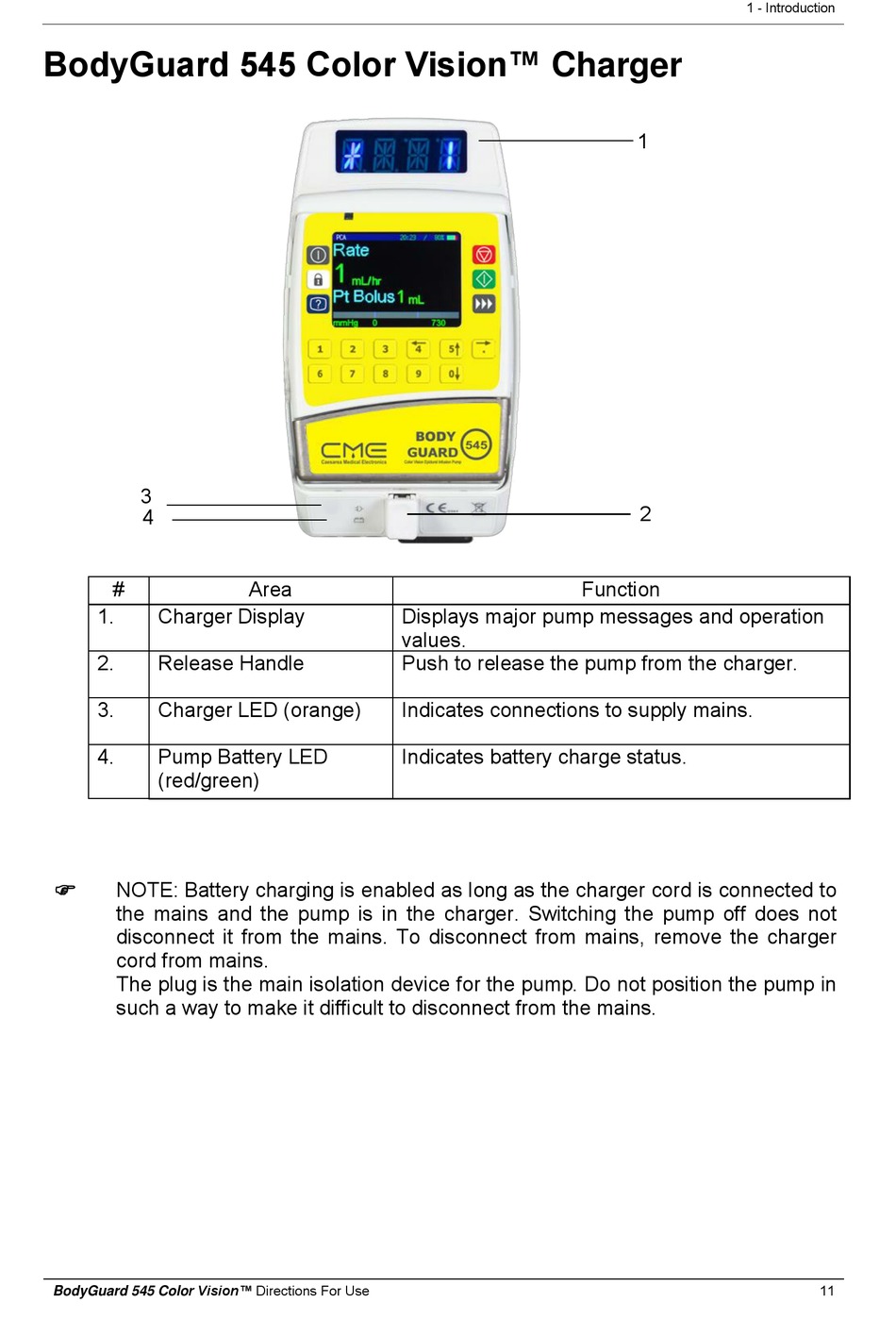

BodyGuard 545 Color Vision™ Charger
3
4
#
1.
Charger Display
2.
Release Handle
3.
Charger LED (orange)
4.
Pump Battery LED
(red/green)
NOTE: Battery charging is enabled as long as the charger cord is connected to
the mains and the pump is in the charger. Switching the pump off does not
disconnect it from the mains. To disconnect from mains, remove the charger
cord from mains.
The plug is the main isolation device for the pump. Do not position the pump in
such a way to make it difficult to disconnect from the mains.
BodyGuard 545 Color Vision™ Directions For Use
Area
Displays major pump messages and operation
values.
Push to release the pump from the charger.
Indicates connections to supply mains.
Indicates battery charge status.
1 - Introduction
1
2
Function
