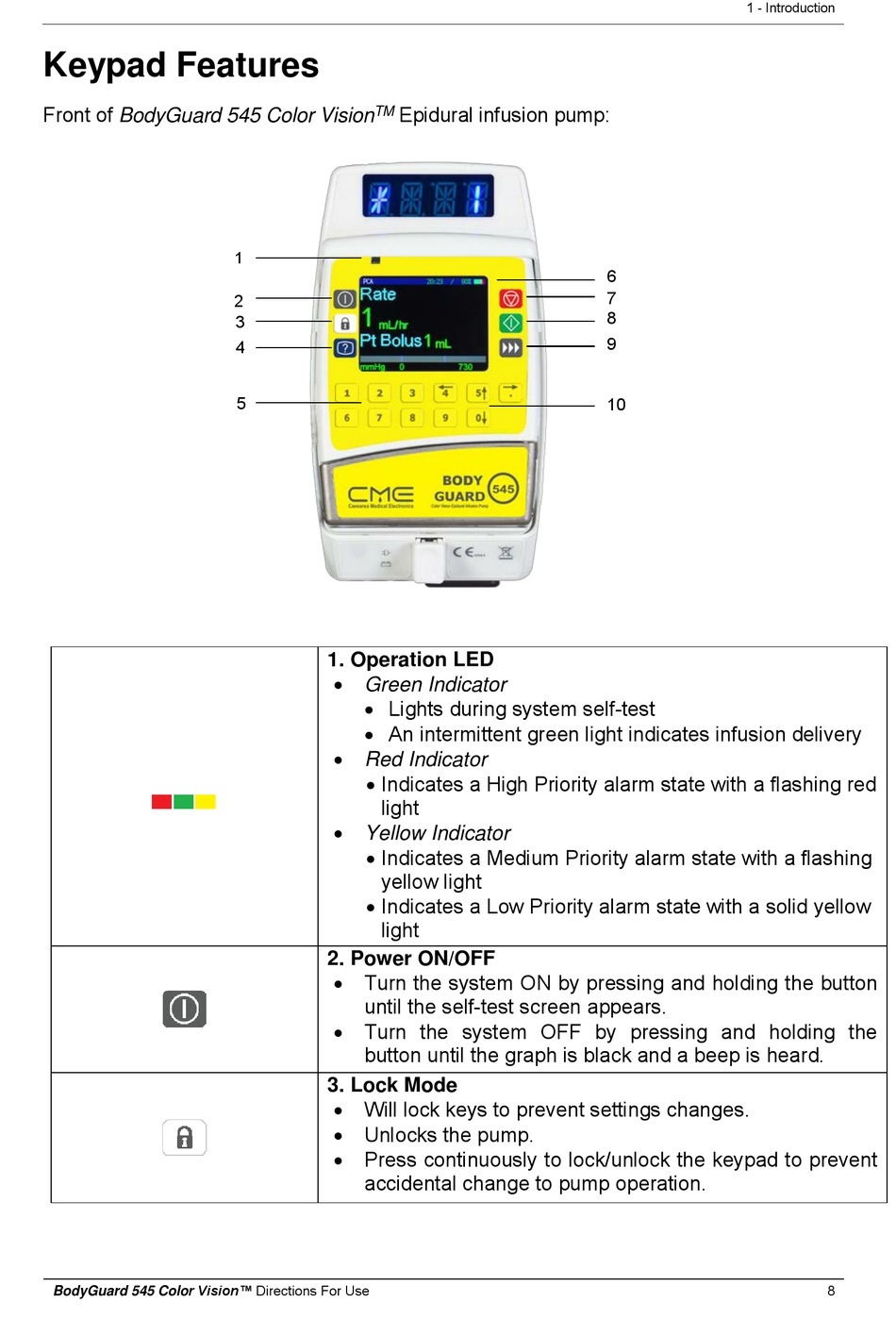

Keypad Features

Front of BodyGuard 545 Color Vision
BodyGuard 545 Color Vision™ Directions For Use
Epidural infusion pump:
TM
1
2
3
4
5
1. Operation LED
 Green Indicator
 Lights during system self-test
 An intermittent green light indicates infusion delivery
 Red Indicator
 Indicates a High Priority alarm state with a flashing red
light
 Yellow Indicator
 Indicates a Medium Priority alarm state with a flashing
yellow light
 Indicates a Low Priority alarm state with a solid yellow
light
2. Power ON/OFF
 Turn the system ON by pressing and holding the button
until the self-test screen appears.
 Turn the system OFF by pressing and holding the
button until the graph is black and a beep is heard.
3. Lock Mode
 Will lock keys to prevent settings changes.
 Unlocks the pump.
 Press continuously to lock/unlock the keypad to prevent
accidental change to pump operation.

1 - Introduction
6
7
8
9
10
8
