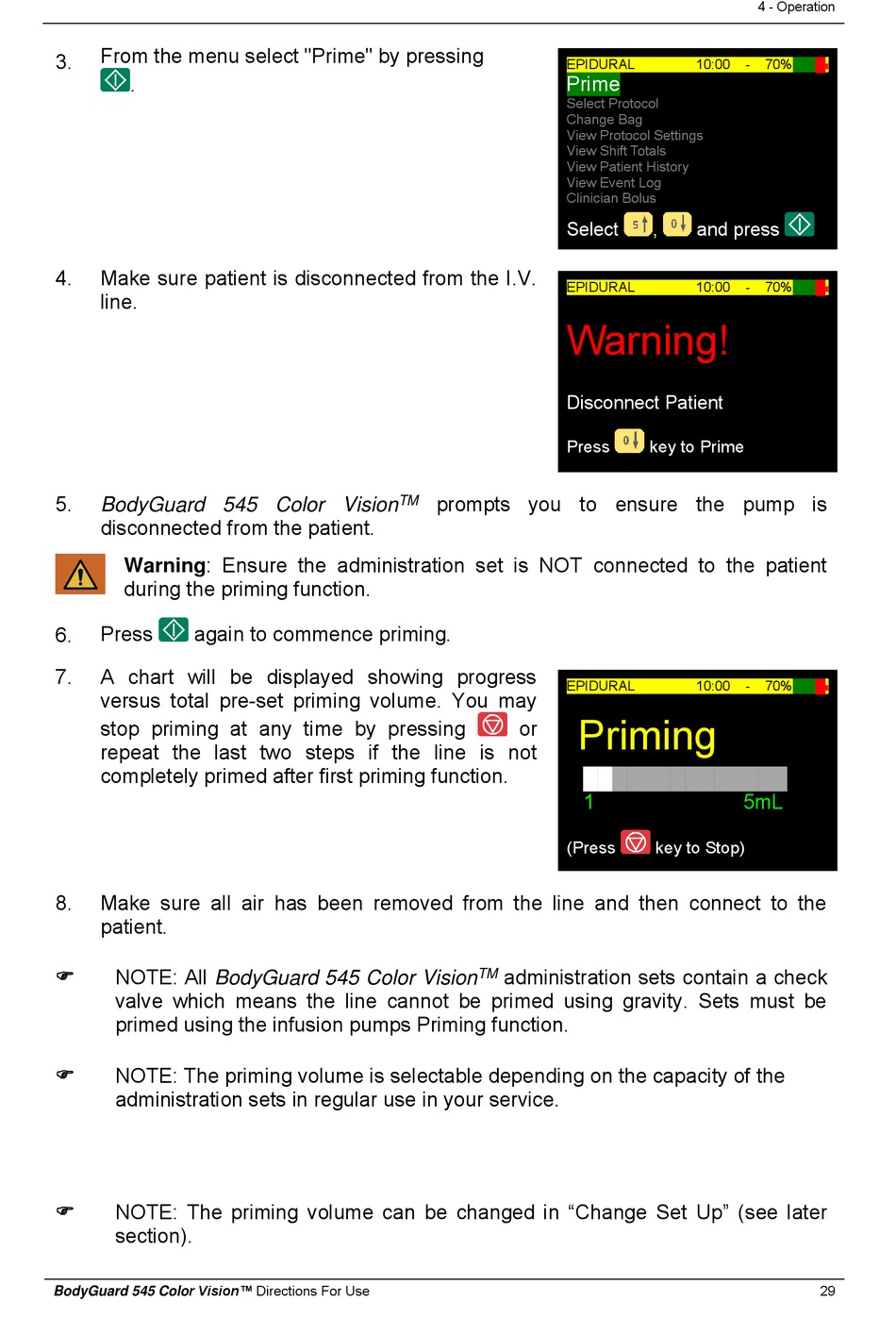

CME BodyGuard 545 Color Vision Directions For Use Manual page 29

From the menu select "Prime" by pressing
3.
.
4. Make sure patient is disconnected from the I.V.
line.
5.
BodyGuard 545 Color Vision
disconnected from the patient.
Warning: Ensure the administration set is NOT connected to the patient
during the priming function.
Press again to commence priming.
6.
7. A chart will be displayed showing progress
versus total pre-set priming volume. You may
stop priming at any time by pressing
repeat the last two steps if the line is not
completely primed after first priming function.
8. Make sure all air has been removed from the line and then connect to the
patient.
NOTE: All BodyGuard 545 Color Vision

valve which means the line cannot be primed using gravity. Sets must be
primed using the infusion pumps Priming function.
NOTE: The priming volume is selectable depending on the capacity of the

administration sets in regular use in your service.
NOTE: The priming volume can be changed in "Change Set Up" (see later

section).
BodyGuard 545 Color Vision™ Directions For Use
EPIDURAL
Prime
Select Protocol
Change Bag
View Protocol Settings
View Shift Totals
View Patient History
View Event Log
Clinician Bolus
Select
EPIDURAL
Warning!
Disconnect Patient
Press
prompts you to ensure the pump is
TM
EPIDURAL
or
(Press
administration sets contain a check
TM
10:00 -
, and press
10:00 -
key to Prime
10:00 -
Priming
██████████████
1 5mL
key to Stop)
4 - Operation
70% █
■
70% █
■
70% █
■
