NOTE: After setting up your most common regimes as a protocol set up the next

or last protocol letter as a 'Tailored' or one off regime that you can modify for
individual patients who don't fall within the pre-set protocols. Once the infusion
has been administered for a particular patient you can go back in and change this
for the next or a future patient.
NOTE: All protocol parameters are unique to that protocol. For example if you

use both ropivacaine and bupivacaine in your service and one commonly comes
in a 100 ml bag while the other is in a 250 ml bag than you can set these bag
sizes as standard for each.
NOTE: Entry of all parameters is via the numeric keypad. Only the protocol

selection, concentration, limits setting are scroll option menu using the up and
down arrows. The previous value will be displayed. Enter the new value. Which
will automatically delete the previous value. If you make and error while entering
data, pressing the

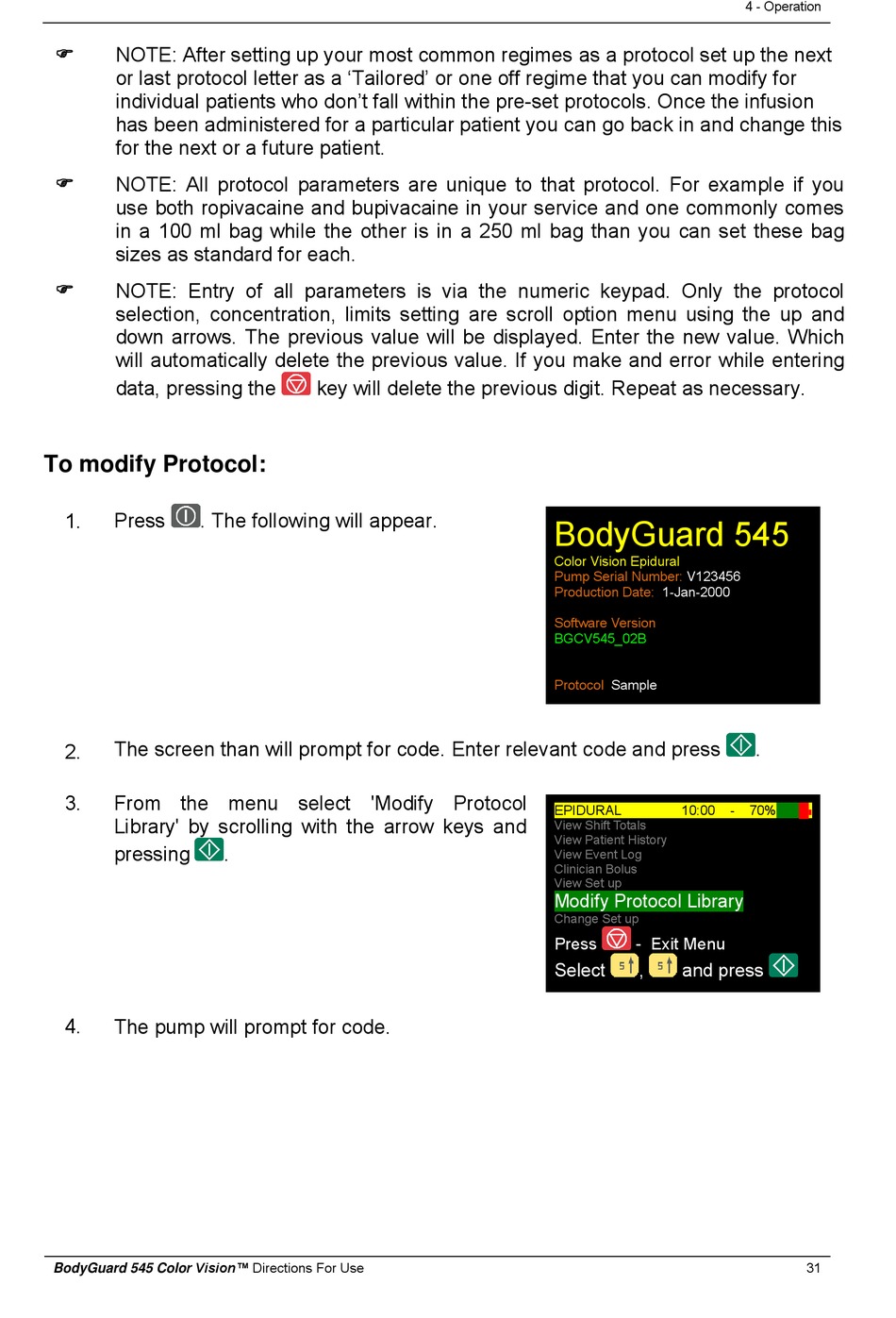

To modify Protocol:
1. Press . The following will appear.
The screen than will prompt for code. Enter relevant code and press
2.
3. From the menu select 'Modify Protocol
Library' by scrolling with the arrow keys and
pressing
4. The pump will prompt for code.
BodyGuard 545 Color Vision™ Directions For Use
key will delete the previous digit. Repeat as necessary.
.
BodyGuard 545
Color Vision Epidural
Pump Serial Number: V123456
Production Date: 1-Jan-2000
Software Version
BGCV545_02B
Protocol Sample
EPIDURAL 10:00
View Shift Totals
View Patient History
View Event Log
Clinician Bolus
View Set up
Modify Protocol Library
Change Set up
Press - Exit Menu
Select , and press
4 - Operation
.
- 70% █
■
31
