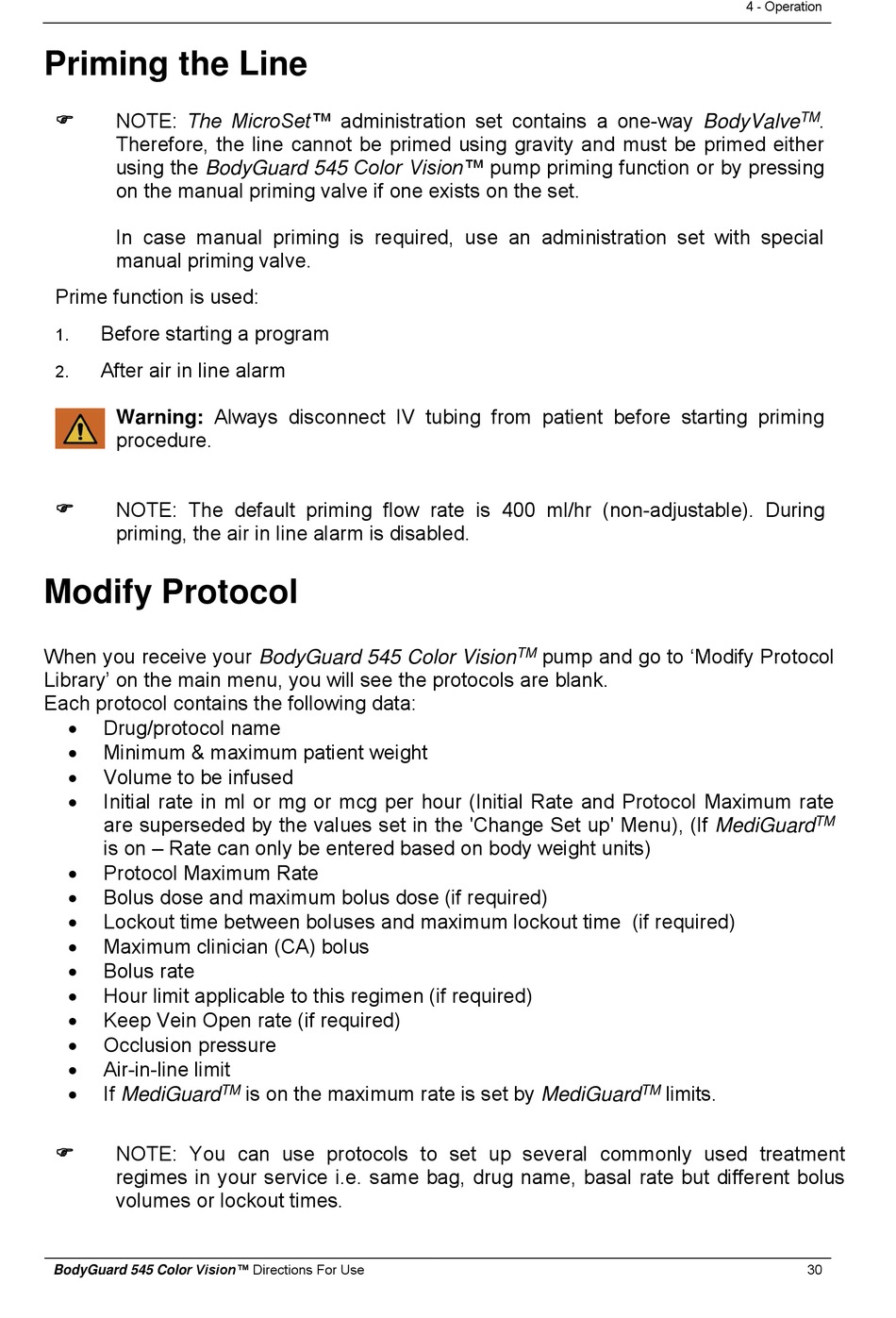

Priming the Line

NOTE: The MicroSet™ administration set contains a one-way BodyValve

Therefore, the line cannot be primed using gravity and must be primed either
using the BodyGuard 545 Color Vision™ pump priming function or by pressing
on the manual priming valve if one exists on the set.
In case manual priming is required, use an administration set with special
manual priming valve.
Prime function is used:
Before starting a program
1.
After air in line alarm
2.
Warning: Always disconnect IV tubing from patient before starting priming
procedure.
NOTE: The default priming flow rate is 400 ml/hr (non-adjustable). During

priming, the air in line alarm is disabled.

Modify Protocol

When you receive your BodyGuard 545 Color Vision
Library' on the main menu, you will see the protocols are blank.
Each protocol contains the following data:
 Drug/protocol name
 Minimum & maximum patient weight
 Volume to be infused
 Initial rate in ml or mg or mcg per hour (Initial Rate and Protocol Maximum rate
are superseded by the values set in the 'Change Set up' Menu), (If MediGuard
is on – Rate can only be entered based on body weight units)
 Protocol Maximum Rate
 Bolus dose and maximum bolus dose (if required)
 Lockout time between boluses and maximum lockout time (if required)
 Maximum clinician (CA) bolus
 Bolus rate
 Hour limit applicable to this regimen (if required)
 Keep Vein Open rate (if required)
 Occlusion pressure
 Air-in-line limit
 If MediGuard
NOTE: You can use protocols to set up several commonly used treatment

regimes in your service i.e. same bag, drug name, basal rate but different bolus
volumes or lockout times.
BodyGuard 545 Color Vision™ Directions For Use
is on the maximum rate is set by MediGuard
TM
pump and go to 'Modify Protocol
TM
limits.
TM
4 - Operation
.
TM
TM
30
