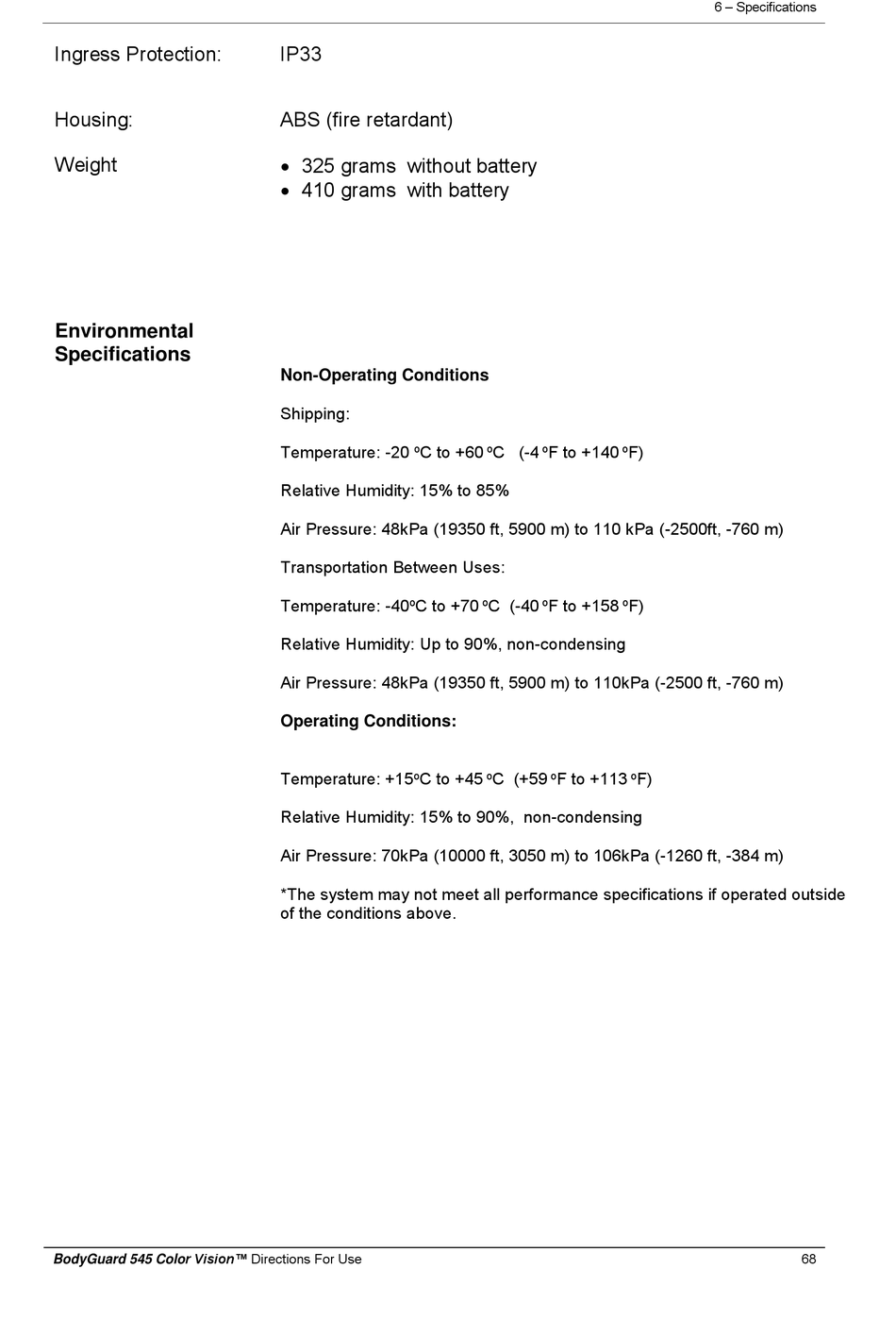

CME BodyGuard 545 Color Vision Directions For Use Manual page 68

Ingress Protection:
Housing:
Weight
Environmental
Specifications
BodyGuard 545 Color Vision™ Directions For Use
IP33
ABS (fire retardant)
 325 grams without battery
 410 grams with battery
Non-Operating Conditions
Shipping:
Temperature: -20 C to +60
o
Relative Humidity: 15% to 85%
Air Pressure: 48kPa (19350 ft, 5900 m) to 110 kPa (-2500ft, -760 m)
Transportation Between Uses:
Temperature: -40 C to +70
o
Relative Humidity: Up to 90%, non-condensing
Air Pressure: 48kPa (19350 ft, 5900 m) to 110kPa (-2500 ft, -760 m)
Operating Conditions:
Temperature: +15 C to +45
o
Relative Humidity: 15% to 90%, non-condensing
Air Pressure: 70kPa (10000 ft, 3050 m) to 106kPa (-1260 ft, -384 m)
*The system may not meet all performance specifications if operated outside
of the conditions above.
C (-4 F to +140 F)
o o o
C (-40 F to +158 F)
o o o
C (+59 F to +113 F)
o o o
6 – Specifications
68
