Use of trigger inputs (Extended license only)

The Analog trigger inputs can be used for normally open (NO) push buttons, switches, 0-10 V
dimmers, 0-10 V control signals from external devices (such as building management systems), or

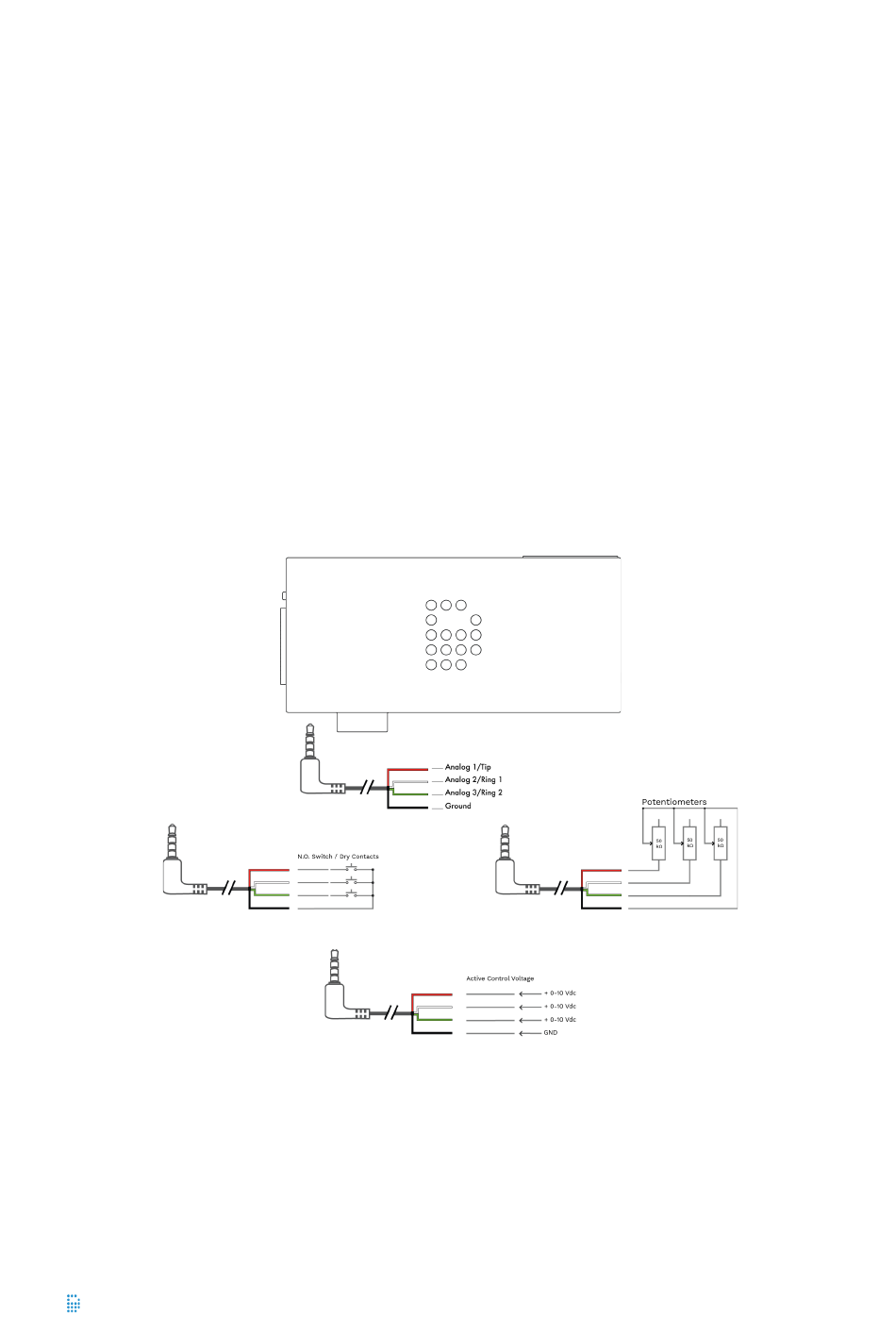

you can connect 50k Ohm linear potentiometers to the trigger inputs (see picture down below).
The DiGidot C4 Trigger input has following pinout:
1. Analog trigger 3
2. Analog trigger 2
3. Analog trigger 1
4. Ground
The DiGidot C4 TRRS Trigger cable has the following corresponding wires:
1. Red =
2. White =
3. Green =
4. Black =
C4 Manual
Analog 1
Analog 2
Analog 3
Ground
