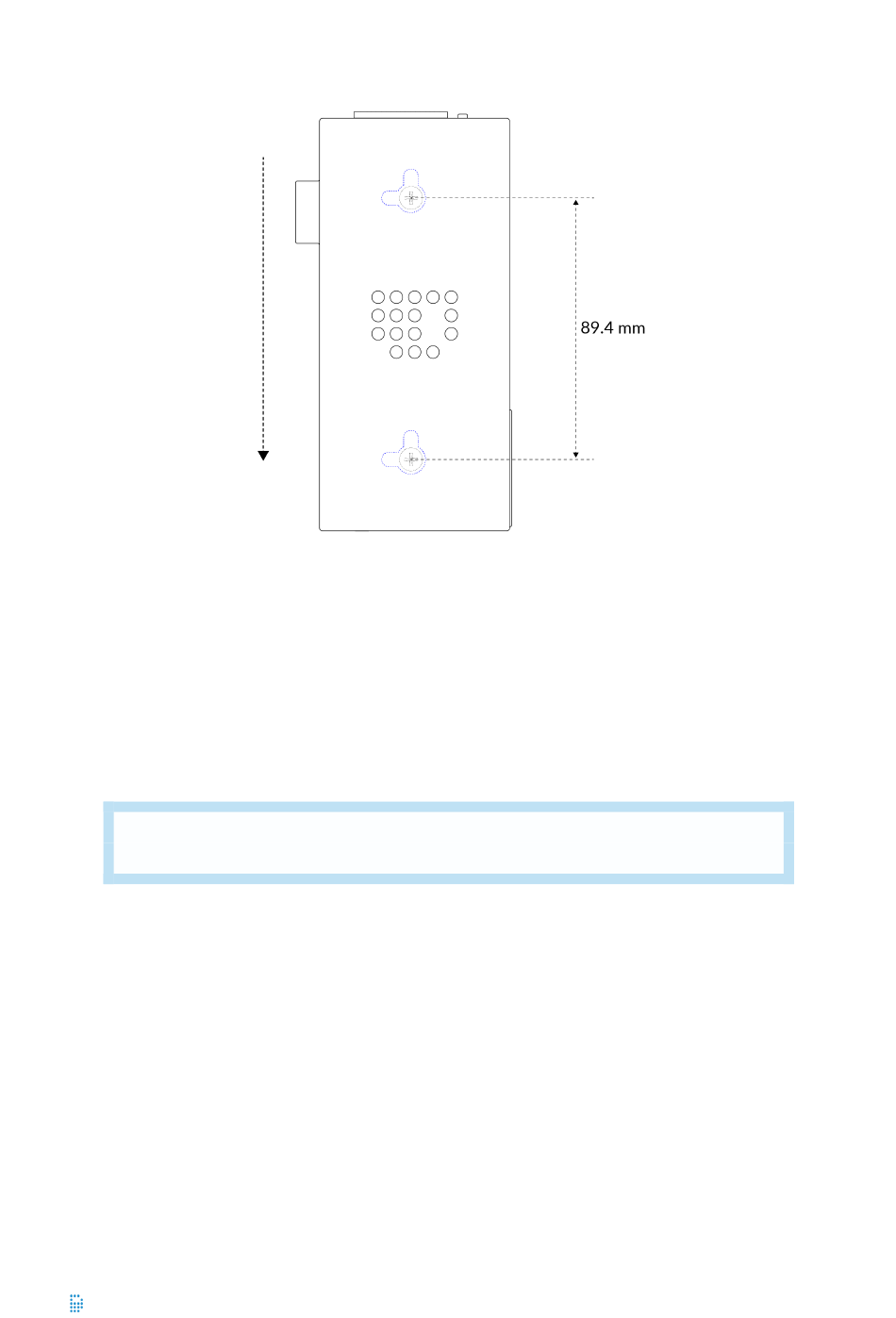

Vertical:
Slide into place
DIN-rail mounting
For 35 mm DIN-rail mounting use the DiGidot DIN-rail clip, art. No. 20902 (not included). Place the
DIN-rail clip against the DIN-rail alignment marker on the DiGidot C4 housing and align both
mounting holes (see picture).
Install the clip with the included 3 x 12 mm screw. When the DIN-rail clip is secured properly, you
can install the device easily on a DIN-rail (see picture).
NOTE: Do not place devices directly next to each other, but leave at least 10 mm space
between units to allow for sufficient air circulation around the device.
C4 Manual
Version 2.2.0
18-78
