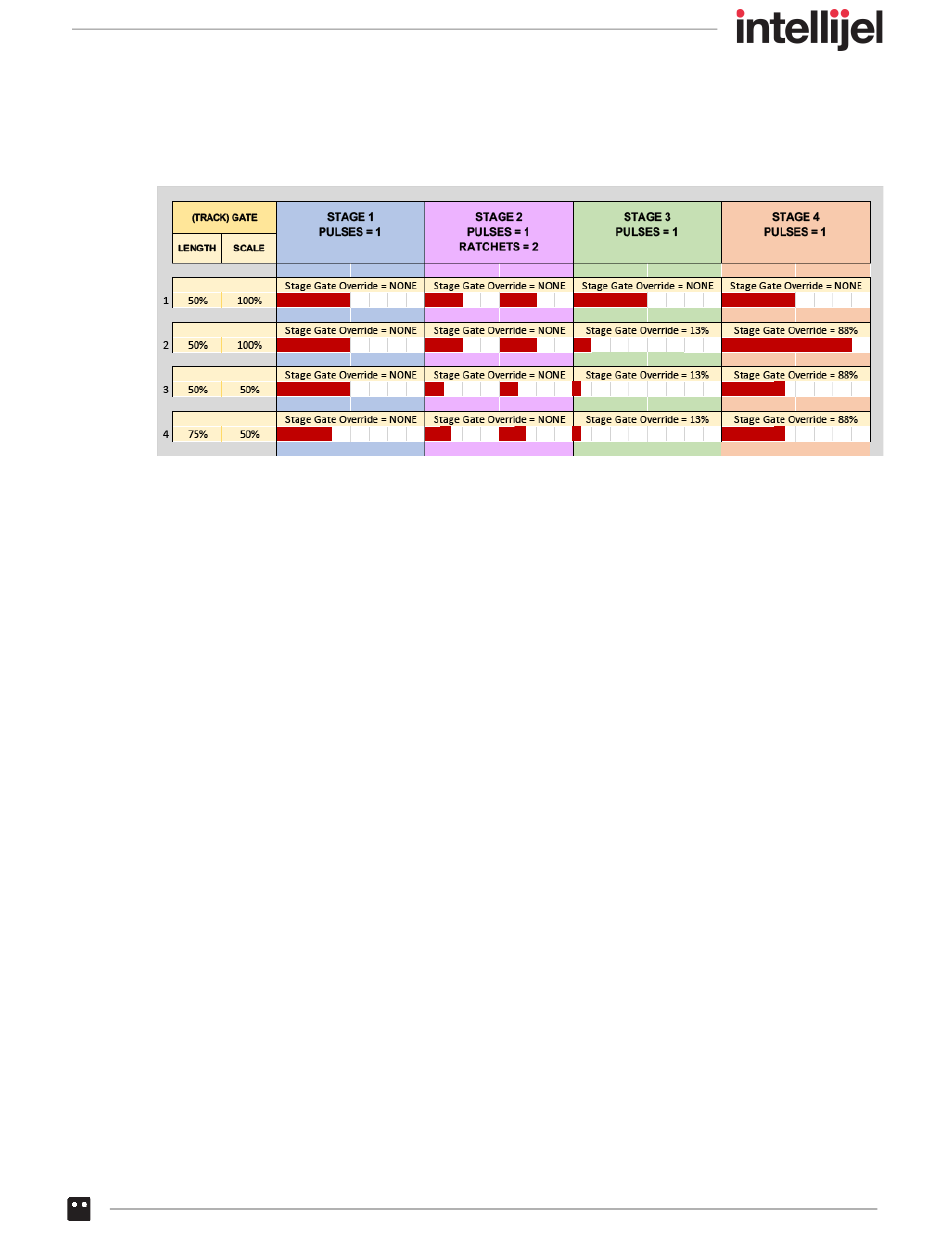

EXAMPLE: Assume you have a four stage track with one pulse per stage and a 2-gate
ratchet assigned to Stage 2. If the GATE LENGTH = 50% and GATE SCALE = 100% , then the
gate output of this sequence looks like ROW 1, below.
Next, assume you use the STAGE GATE screen to assign gate overrides of 13% to Stage 3,
and 88% to Stage 4. Nothing else changes. The gate output of this sequence now looks like
ROW 2, above.
Now, change only the TRACK GATE screen's GATE SCALE from 100% to 50%. The gate
output of this sequence looks like ROW 3.
Finally, change only the TRACK GATE screen's GATE LENGTH from 50% to 75%. The gate
output of this sequence looks like ROW 4.
