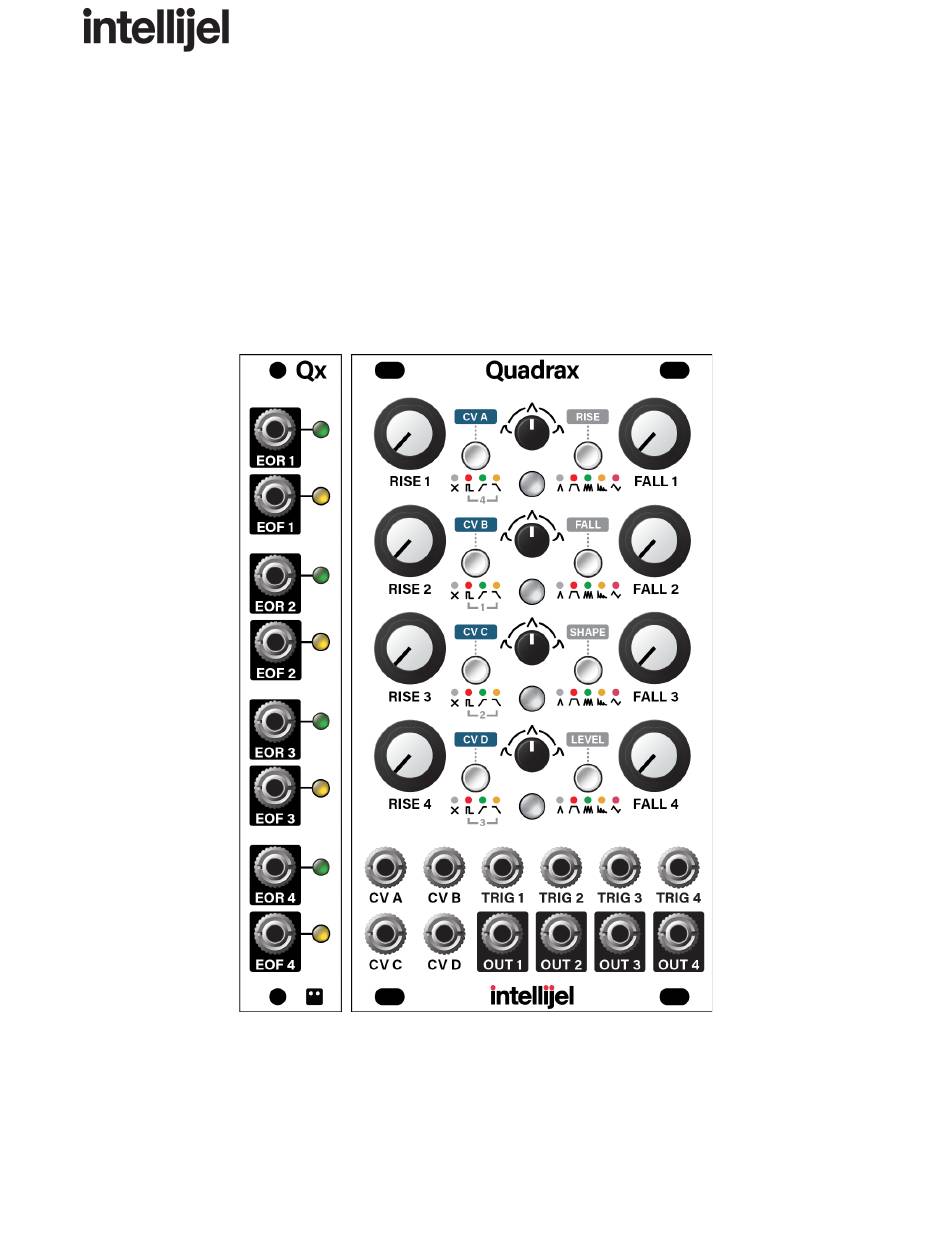

- Page 1 Quadrax Manual Quadrax (Including Optional Qx Expander) 4-Channel CV-Controllable Function Generator With Cycling, Pulse Burst Generation and Morphing LFO Manual Revision: 2019.11.05 ...
-
Page 2: Table Of Contents
3 Installation 4 Installing Your Module 5 Connecting the Optional Qx Expander Module 6 Overview 7 Quadrax Front Panel 8 Controls 8 Inputs and Outputs 14 Channel Mode Options 15 AD Mode 15 ... - Page 3 Quadrax Manual Making CV Assignments 27 Enter/Exit CV Assignment Mode 27 Programming the CV Matrix 28 The possible destinations (per channel) are (from top button to bottom): 28 ...
-
Page 4: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 5: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power ... -
Page 6: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label ... -
Page 7: Connecting The Optional Qx Expander Module
6-pin I2C connector on the Qx and the other end to either of the two I2C ports on your Quadrax module (it doesn’t matter which of Quadrax’s two I2C ports you use). Be sure to align the ... -
Page 8: Overview
Quadrax remembers its current state (Mode and CV assignments, channel links, etc) and retains that state even if power is removed, meaning Quadrax will always turn on in exactly the same state as you last left it. ... -

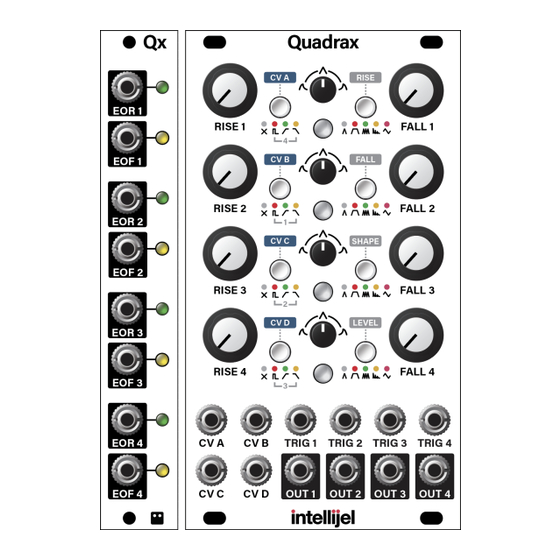

Page 9: Quadrax Front Panel
Quadrax Front Panel Controls 1. RISE (x4) - Each channel has its own RISE knob, whose function depends on the channel’s mode assignment, as selected by the MODE/DESTINATION button . - Page 10 ● BURST Mode : The FALL knobs sets to the number of pulses contained within the burst. When fully counter-clockwise, Quadrax generates one pulse per burst. When fully clockwise, Quadrax generates 64 pulses per burst. See BURST Mode later in this ...
- Page 11 Quadrax Manual ● LFO Mode : The FALL knob becomes a MORPH knob, and is used to create numerous interesting and morphable variations on the basic waveform set by ...
- Page 12 (clockwise from ‘noon’) or decreases (counter- clockwise from ‘noon’) over the burst length. Rising bursts start at 0V and rise to Quadrax’s maximum voltage. Falling bursts start at maximum voltage and decay to 0V. For ...
- Page 13 Quadrax Manual 6. MODE/DESTINATION button - This button (x4) has two functions: In normal operation, it selects the channel’s MODE, while in CV Assignment mode, it sets the DESTINATION ...
- Page 14 Quadrax Manual ● Burst : Burst mode generates a definable number of cyclic pulses (using the FALL knob), spaced evenly within a definable length of time (using the RISE ...
-
Page 15: Inputs And Outputs
. NOTE: Although the range of CV modulation is ±5V, the CV inputs accept voltages up to ±10V. Any voltages above or below 5V are simply clipped at ±5V. Use Quadrax’s internal attenuverters (as described in Programming the CV Matrix ) to dial down the input voltages. -
Page 16: Channel Mode Options
Channel Mode Options Each of Quadrax’s four channels can be assigned to operate in one of five modes: Pushing the MODE button repeatedly cycles through the various mode options. AD Mode When the MODE button is unlit, the ... -
Page 17: Cycle Mode
Quadrax Manual CYCLE Mode When the MODE button is green , the channel produces a cycling AD envelope, which behaves like a unipolar LFO. The frequency of the cycle is determined by ... -
Page 18: Lfo Mode
Quadrax Manual LFO Mode When the MODE button is magenta , the channel operates in LFO mode. In this mode, the channel becomes a bipolar LFO, with the RISE knob controlling LFO RATE , the RESPONSE CURVE knob ... -
Page 19: Channel Link Options
Channel Link Options Though it’s perfectly acceptable to think of Quadrax as four completely independent function generators, the module features several ways to link these channels together. Use the LINK button (together with the TRIG inputs) to fire off multiple ... -
Page 20: End Of Rise Link
BURST mode triggers an EOR at the beginning of every pulse within the burst. LFO mode triggers an EOR every time the LFO completes half its cycle. For a complete description of exactly when EOR and EOF are triggered for each of Quadrax’s five modes, see Using the Optional Qx ... -
Page 21: Multiple Triggers
Quadrax Manual Multiple Triggers If you use one of the linked triggering options combined with the channel’s own TRIG input, then the two trigger sources are OR’d together — meaning the function will fire whenever it gets a trigger ... -
Page 22: Burst Mode
The channel’s TRIG input triggers the pulse burst. In Burst mode, Quadrax’s controls take on the following functions: RISE (LENGTH) knob: In Burst mode, the RISE knob functions as the LENGTH knob. It sets the ... - Page 23 Quadrax Manual RESPONSE CURVE (SHAPE) knob: In Burst mode, the RESPONSE CURVE knob becomes the SHAPE knob (as indicated by the graphic above the knob). It selects the pulse shape (and whether ...
-
Page 24: Lfo Mode
clock input for beat-synchronized LFOs, or it can be left unpatched for free-running LFOs. In LFO mode, Quadrax’s controls take on the following functions: RESPONSE CURVE (SHAPE) knob: In ... - Page 25 Quadrax Manual FALL (MORPH) knob: In LFO mode, the FALL knob becomes the MORPH knob. It’s used to create numerous interesting and morphable variations on the basic waveform set ...
-
Page 26: Multiple Beat Synchronized Lfos
Quadrax Manual Multiple Beat Synchronized LFOs Here’s an example of how you can beat-synchronize multiple LFOs using a single TRIG input: 1. Set Channels 1 and 2 to LFO mode ... -
Page 27: Lfo Waveshapes And Morphing
Quadrax Manual LFO Waveshapes and Morphing The following chart shows how the FALL (MORPH) knob and the CURVE (SHAPE) knob work together to create numerous LFO waveshapes. All shapes are continuously variable, and the ... -
Page 28: Making Cv Assignments
Making CV Assignments Quadrax’s LINK and MODE buttons have a dual purpose, which is to assign each of the module’s four CV inputs to one or more destinations, and to attenuvert them as needed. CV assignment functions ... -
Page 29: Programming The Cv Matrix
Quadrax Manual Programming the CV Matrix For each channel, you can assign any or all of the CV inputs to any or all modulation destinations. Furthermore, you can attenuvert the amount of ... - Page 30 Quadrax Manual 4. Repeatedly press the MODE/DESTINATION button to change the amount by which the input CV affects the parameter. There are four levels of attenuation, indicated by the brightness of the button. A fully lit button ...
- Page 31 Here is a recap of what the various button colors indicate in CV Assignment mode: 9. When you’re done making CV assignments for all channels, long-press the LINK/CV button that’s currently flashing magenta . Quadrax returns to standard operating mode. Page 30 ...
-
Page 32: Clearing Cv Assignments
CV assignments for a single channel; or all CV assignments for all channels. Specifically: To clear all CV assignments on a single channel: 1. Make sure Quadrax is in CV Assignment mode (as discussed in Enter/Exit CV ... -
Page 33: Using The Optional Qx Module
The Qx expander adds an EOR ( E nd O f R ise) and an EOF ( E nd O f F all) output to each of Quadrax’s four channels, enabling Quadrax’s envelopes, cycles, bursts and LFOs to ... -
Page 34: Eor/Eof For Ahr Mode
Quadrax Manual EOR/EOF for AHR Mode If a channel is set to AHR mode, then the EOR and EOF outputs perform as follows: ● EOR : End of Rise: Goes high (+5V) when ... -
Page 35: Eor/Eof For Burst Mode
● EOF : Stays at 0V for the entire length of the pulse burst (set with the RISE knob on Quadrax), then goes high (+5V) at the end of the overall burst, where it stays until the ... -
Page 36: Firmware Version Display
Firmware Version Display Quadrax’s current firmware version is displayed for approximately 2 seconds when you power on the module. It displays the firmware version in binary format using the 1.x.y format, with the left column displaying the x value and the right column displaying the y ... -
Page 37: Firmware Change Log
Quadrax Manual Firmware Change Log 1.0.1 (November, 2019) ● Initial Release Page 36 ... -
Page 38: Technical Specifications
Quadrax Manual Technical Specifications QUADRAX Width 14 hp Maximum Depth 38 mm Current Draw 106 mA @ +12V 9 mA @ -12V ...
