HOME Screen 1 : Positions Overview

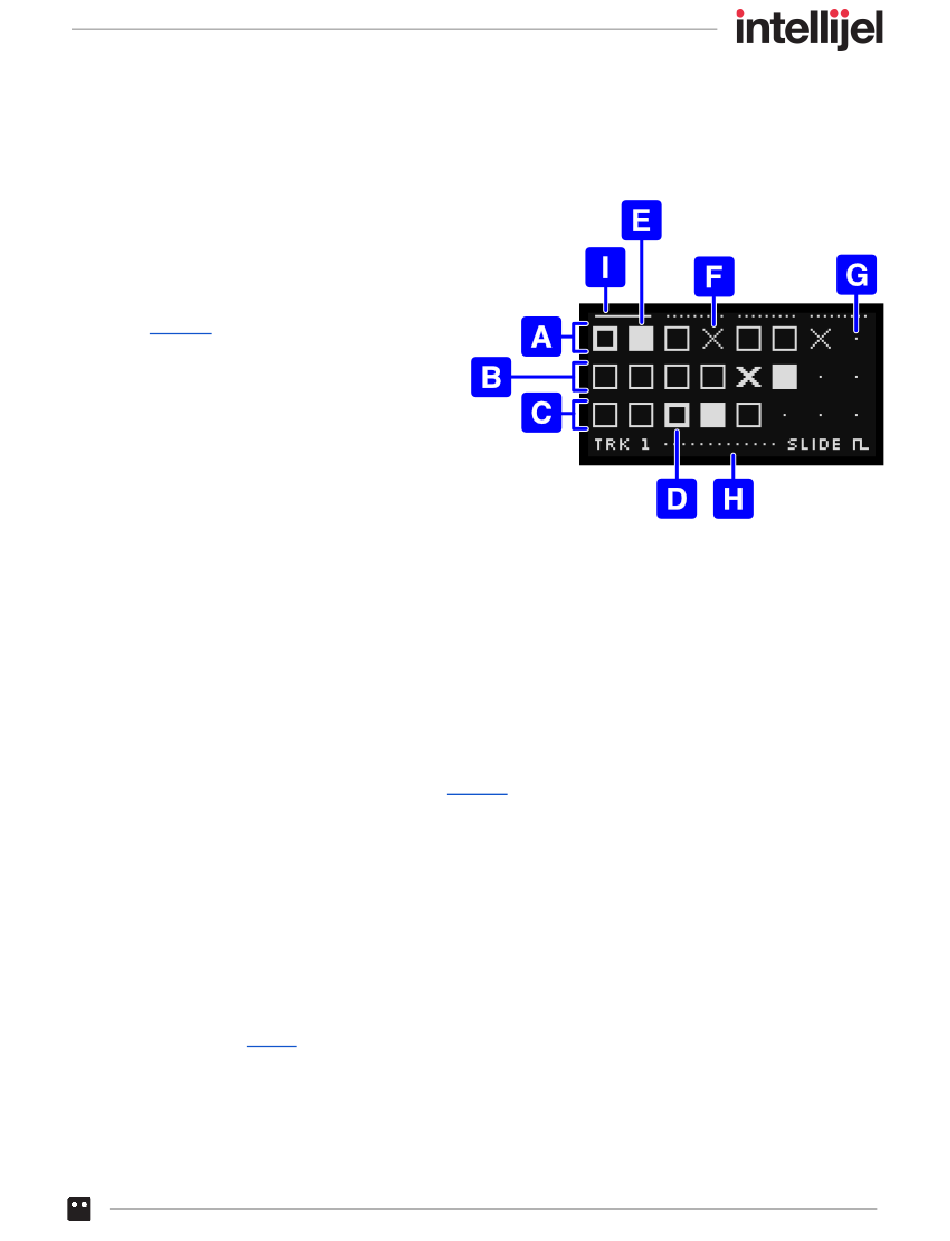

The first HOME screen shows the current STAGE position (and its playback status) for Metropolix'
two note tracks and one of its MOD Lane.
[A] TRK 1 stages : Each of TRK 1's eight
stages is represented by a block. A
filled-in white block indicates the current
stage [E] . An X indicates that a stage will
be skipped [F] . A black stage block
indicates the stage will play as expected.
A black stage block with a thick outline
[D] indicates the track's starting stage, as
set with the LEN button's OFFSET
parameter. If a track has a length shorter
than 8 stages, a dot
the unused stages.
[B] TRK 2 stages : Same as TRK 1 stages
display, but for TRK 2.
[C] MOD Stages : As with TRK 1 and 2, this indicates the current stage for the currently active
MOD Lane. To see the current MOD Lane number, press the MOD button, and the Action
Display [H] will display the MOD Lane number and the parameter to which it's assigned.
[D] FIRST STAGE indicator : Indicates which stage is the first stage, as set with the LEN button's
OFFSET parameter.
[E] CURRENT STAGE indicator : Indicates the current stage.
[F] SKIPPED STAGE indicator : Indicates a
[G] UNUSED STAGE indicator : Indicates stages beyond the current track length setting, as set
with the LEN button's STAGES parameter.
[H] ACTION display : Common across most screens, this area (in general) indicates the currently
active Stage EDIT function if the TRK 1 or TRK 2 button is lit, or the current MOD Lane
selection/assignment if the MOD button is lit.
[I] Home Screen indicator : Solid line indicates this is the first of four Home Screens, which you
access by rotating the encoder.
NOTE: If a track is muted
[G] is displayed for
skipped
, it appears 'greyed out' (crosshatched) on the screen.
