The GNSS Compass should be aligned such that it is level with the vehicle and the indicator on the
lid is directly forward of the sight, see Illustration 14. The sight can be used to visually align the
indicator for best results. See Illustration 15 for example mounting on a boat and Illustration 16 for
example mounting on a car.
In the event that it is not feasible to mount the GNSS Compass in the standard orientation, it is
possible to mount it with a known offset and configure the unit with this offset. The offset should be
entered into the heading offset field in the alignment configuration dialogue.

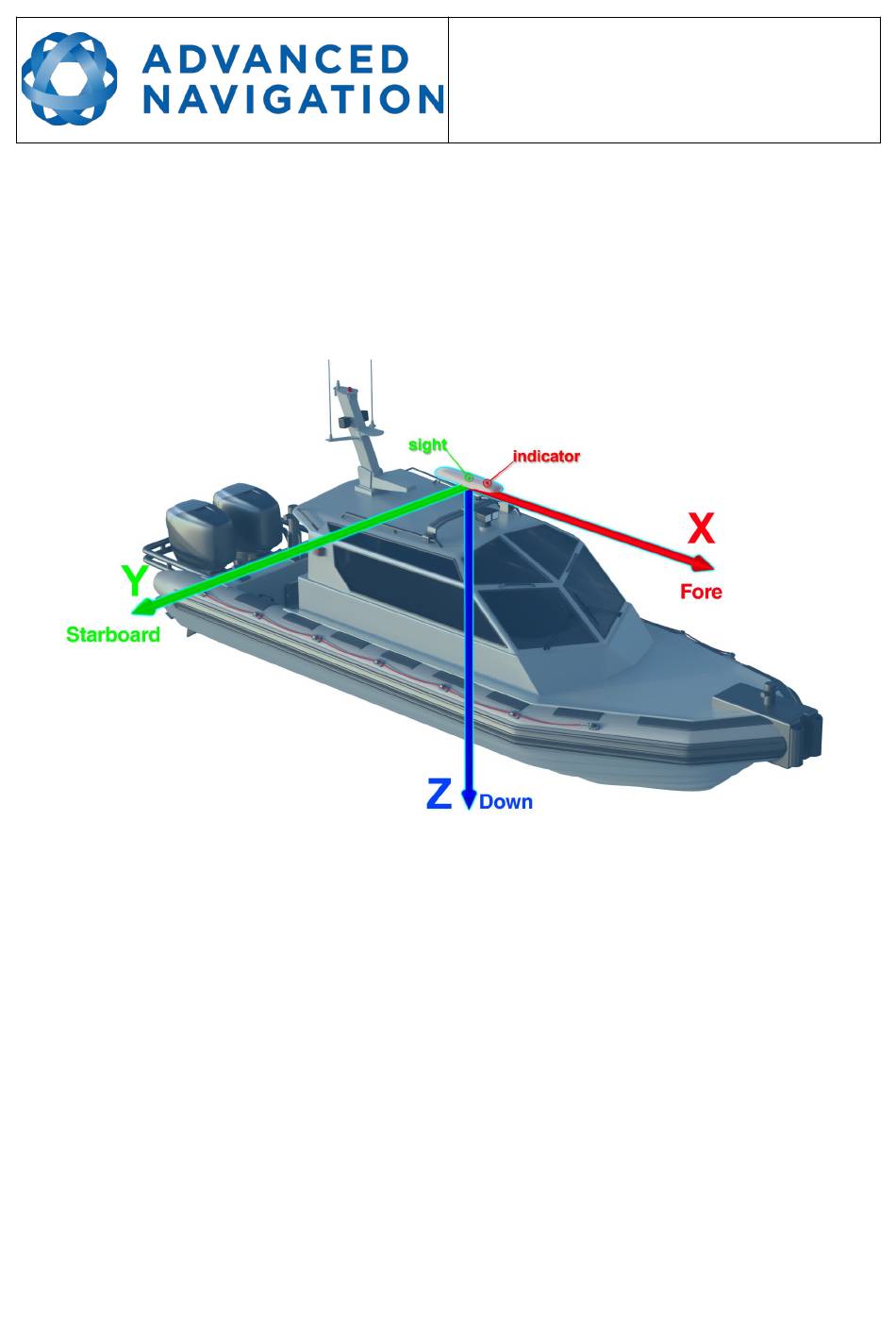

Illustration 15: GNSS Compass alignment on a boat
GNSS Compass Reference Manual
Page 34 of 85
Version 1.1
13/01/2021
