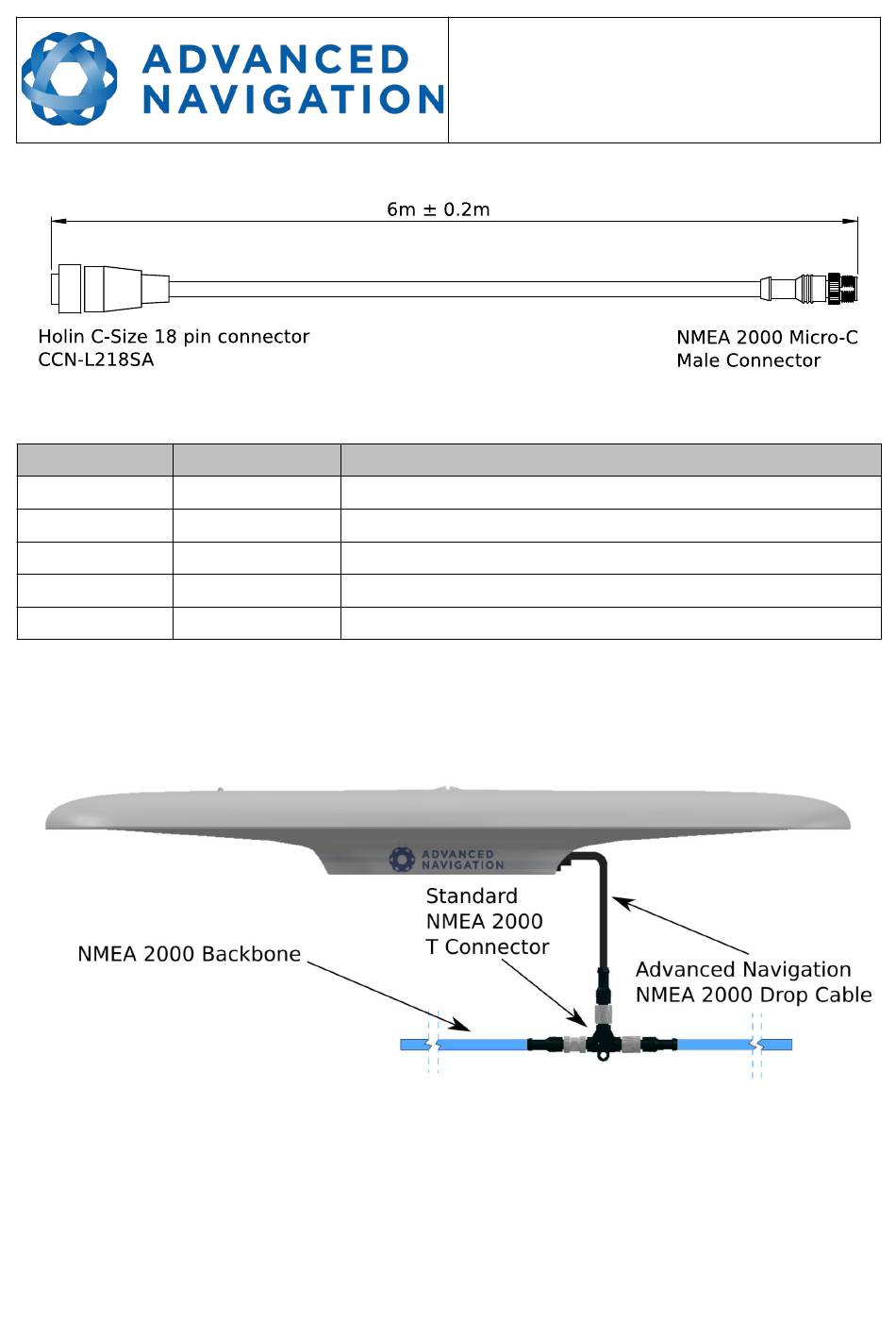

Illustration 6: NMEA 2000 Drop Cable
Pin
1
2
3
4
5
Table 16: NMEA 2000 drop cable pin allocation table
The NMEA 2000 drop cable should be used to connect to a T piece along the NMEA 2000
backbone in the vessel, see Illustration 7.
Illustration 7: GNSS Compass NMEA 2000 Connection
7.9

Ethernet Cable

The Ethernet cable is only compatible with GNSS Compass part numbers GC-POE-LC and GC-
POE-HA. It has part number GC-POE-CABLE-20M.
Connection to the GNSS Compass is made through a Holin RJ45C-L4SAS environmentally sealed
RJ45 connector. The connector has a bayonet lock and provides a reliable and rugged connection
to the GNSS Compass under demanding conditions. It is rated to IP68 in the mated state. The
Colour
Bare
Red
Black
White
Blue
GNSS Compass Reference Manual
Page 25 of 85
Version 1.1
13/01/2021
Function
Drain/Shield
Power Supply
Power Ground
CAN Hi
CAN Lo
