General Settings - Extron electronics DTP2 T 212 User Manual

EDID Report
Click the EDID Report tab (see figure 19,
connected to the inputs.

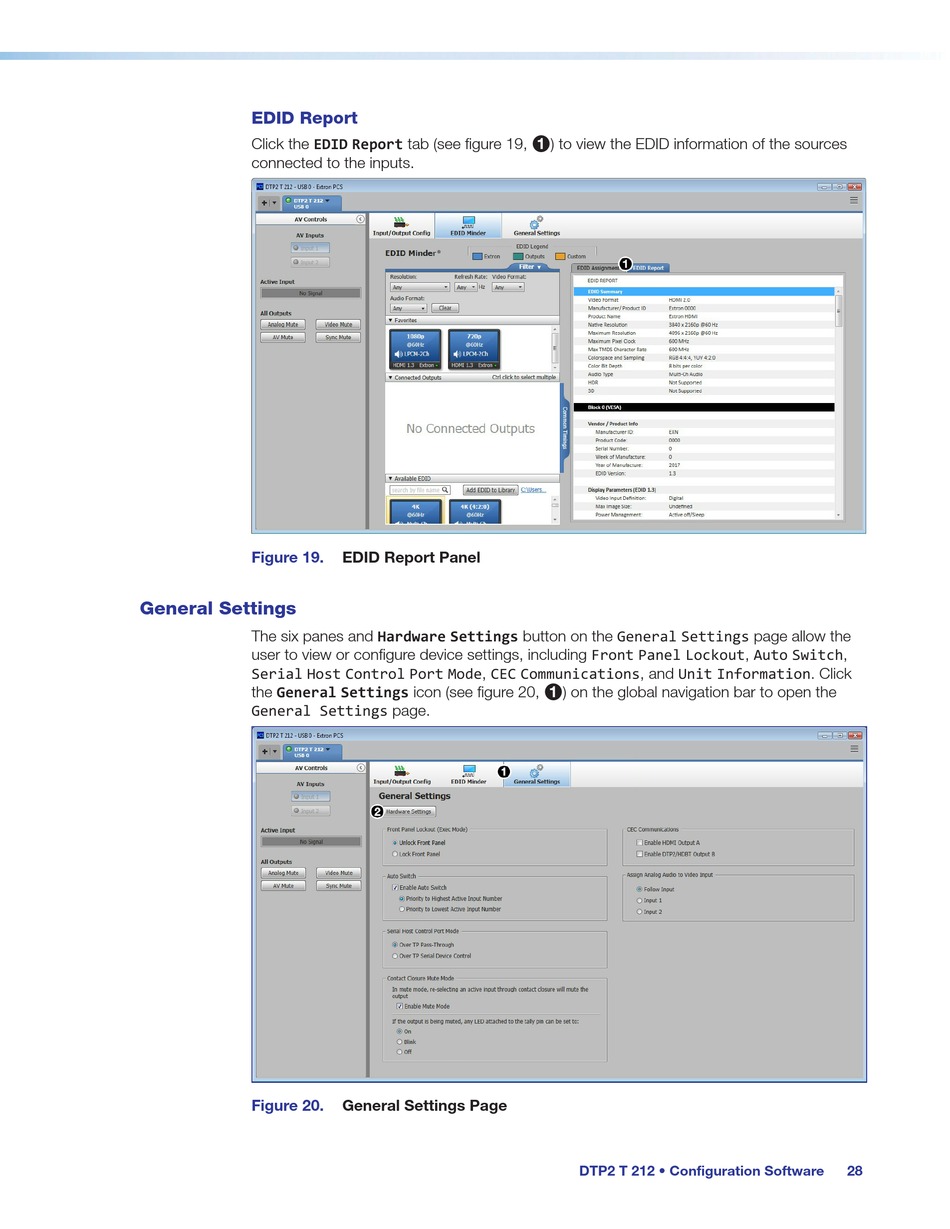

Figure 19.

General Settings

The six panes and Hardware Settings button on the General Settings page allow the
user to view or configure device settings, including Front Panel Lockout, Auto Switch,
Serial Host Control Port Mode, CEC Communications, and Unit Information. Click
the General Settings icon (see figure 20,
General Settings page.
Figure 20.
EDID Report Panel
General Settings Page
) to view the EDID information of the sources
1
) on the global navigation bar to open the
1
DTP2 T 212 • Configuration Software 28
