General Settings Page

The General Settings page allows configuration of the input auto-switching and the tally
out LED indication. Click the General Settings button on the Global Navigation
Bar to open the page (see figure 40,
2 2
3 3
4 4
5 5

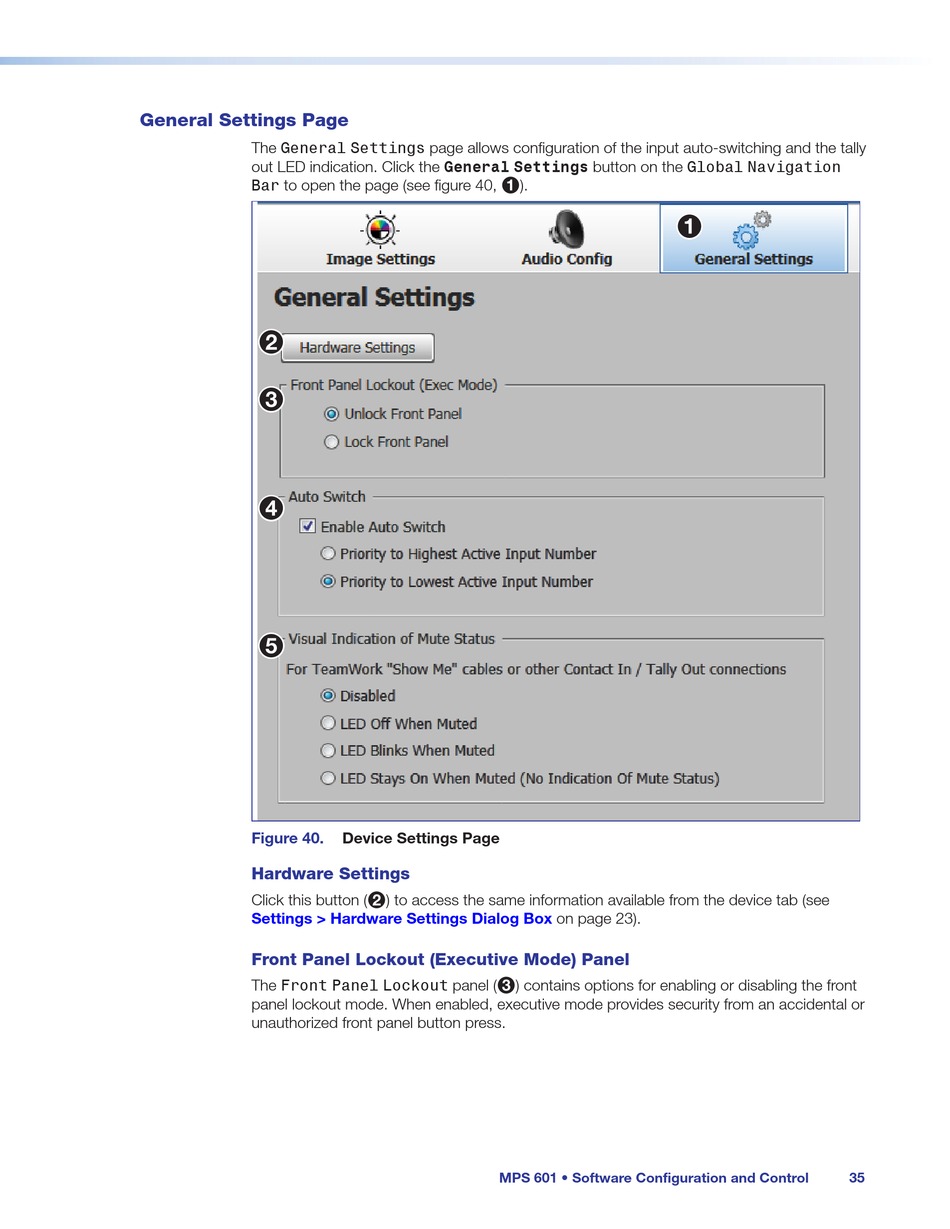

Figure 40.
Hardware Settings
Click this button (
Settings > Hardware Settings Dialog Box
Front Panel Lockout (Executive Mode) Panel
The Front Panel Lockout panel (
panel lockout mode. When enabled, executive mode provides security from an accidental or
unauthorized front panel button press.
).
1
Device Settings Page
) to access the same information available from the device tab (see
2
) contains options for enabling or disabling the front
3
MPS 601 • Software Configuration and Control
1 1
on page 23).
35
