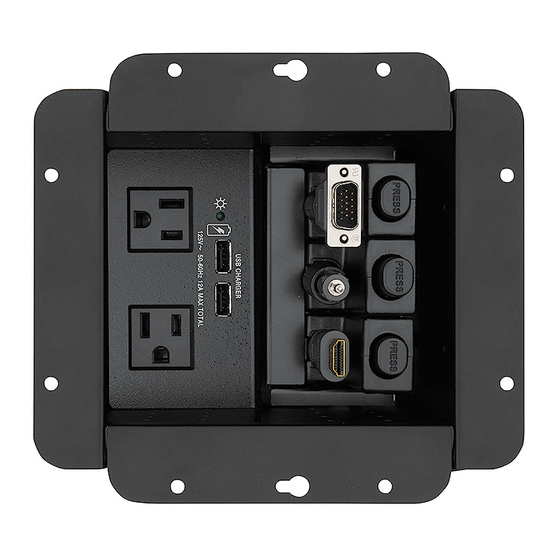

Cable Cubby 650 UT • Installation Guide
This guide provides instructions for an experienced installer to install and connect the
Extron Cable Cubby 650 UT.
The Cable Cubby 650 UT units are under furniture mountable and are expandable for cable
access, connections, and AC power.
Planning
Check with local and state regulations before starting the
installation
…
Ensure that the planned installation complies with building and electrical codes.
…
Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.
Check all parts and equipment before installation
…
Ensure that all parts are present in each kit.
…
Ensure that necessary tools and equipment are available for the installation.
…
Determine the number for Cable Cubby 650 UT enclosures you intend to install.

Kit Contents

Connectivity Bracket
#4-40 Module Screws
AAP Frame Plate
Cable Grommet Plate
Hole Plugs
Retractor Bracket
Retractor Pin and Clip
#6 Pan-head Mounting Screws and Star Washers
Cable Cubby 650 UT
Connectivity Bracket
#4-40 Module Screws
AAP Frame Plate
Cable Grommet Plate
Hole Plugs
Retractor Pin & Clip
#6 Pan-head Mounting
Screws and Star Washers
1
4
1
1
(6) 3/8", (2) 1/4"
1
1
4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 650 UT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics 650 UT

Summary of Contents for Extron electronics 650 UT

  • Page 1: Kit Contents

    Cable Cubby 650 UT • Installation Guide This guide provides instructions for an experienced installer to install and connect the Extron Cable Cubby 650 UT. The Cable Cubby 650 UT units are under furniture mountable and are expandable for cable access, connections, and AC power. Planning...

  • Page 2: Preparing The Table

    Cable Cubby 650 UT • Installation Guide (Continued) Preparing the Table Cut a hole in the surface where the enclosure will be installed. The size of the hole depends on the number of enclosures used (see cut-out dimensions on the next page). Ensure the sides of the hole are smooth after cutting and finished before installing.
  • Page 3 Cut the hole in the table and pre-drill mounting holes CAUTION: Wear safety glasses when operating power equipment. Failure to comply can result in eye injury. ATTENTION : Portez des lunettes de sécurité lorsque vous utilisez l’équipement électrique. Ne pas respecter cela peut conduire à...
  • Page 4 Preparing the Cable Cubby Step 1 (Only for multiple enclosures) — Assemble Enclosures Before attaching the enclosure, ensure the keyhole mounting holes are orientated in the same direction. Attach the enclosures together with the four pan-head mounting screws and washers that were removed in step 1. Using a #2 screw driver, unscrew the four pan-head screws that attach the enclosure...

  • Page 5: Step 3 - Install The Modules

    Cable Cubby 650 UT • Installation Guide (Continued) Step 3 — Install the Modules Determine where the connectivity module and/or power module will be installed in the Cable Cubby. The modules may be installed on the left or right side of the enclosure and at various heights.

  • Page 6: Horizontal Mounting

    Cable Cubby 650 UT • Installation Guide (Continued) Installing Retractors Follow the steps below to install Retractors. For horizontal or angular Retractor mounting, see the information below at right, then follow the steps below. Horizontal Mounting Cable Release Cable Release...

  • Page 7: Installation Checklist

    Routing and Connecting Cables CAUTION: Risk of Electric Shock. This equipment must be grounded. ATTENTION : Risque de choc électrique. Cet équipement doit être fixé au sol. Connect cables to the AV system and connect the AC power cord. Using zip ties, secure cables to the holes on the bottom of the Cable Cubby.
  • Page 8 +971.4.299.1880 FAX +61.8.8351.2511 FAX (Inside India Only) Extron USA - West Extron USA - East +1.714.491.1500 +1.919.850.1000 +31.33.453.4040 +91.80.3055.3777 +1.714.491.1517 FAX +1.919.850.1001 FAX +31.33.453.4050 FAX +91.80.3055.3737 FAX 68-3062-50 © 2017 Extron Electronics All rights reserved. www.extron.com Rev. A 04 17...
