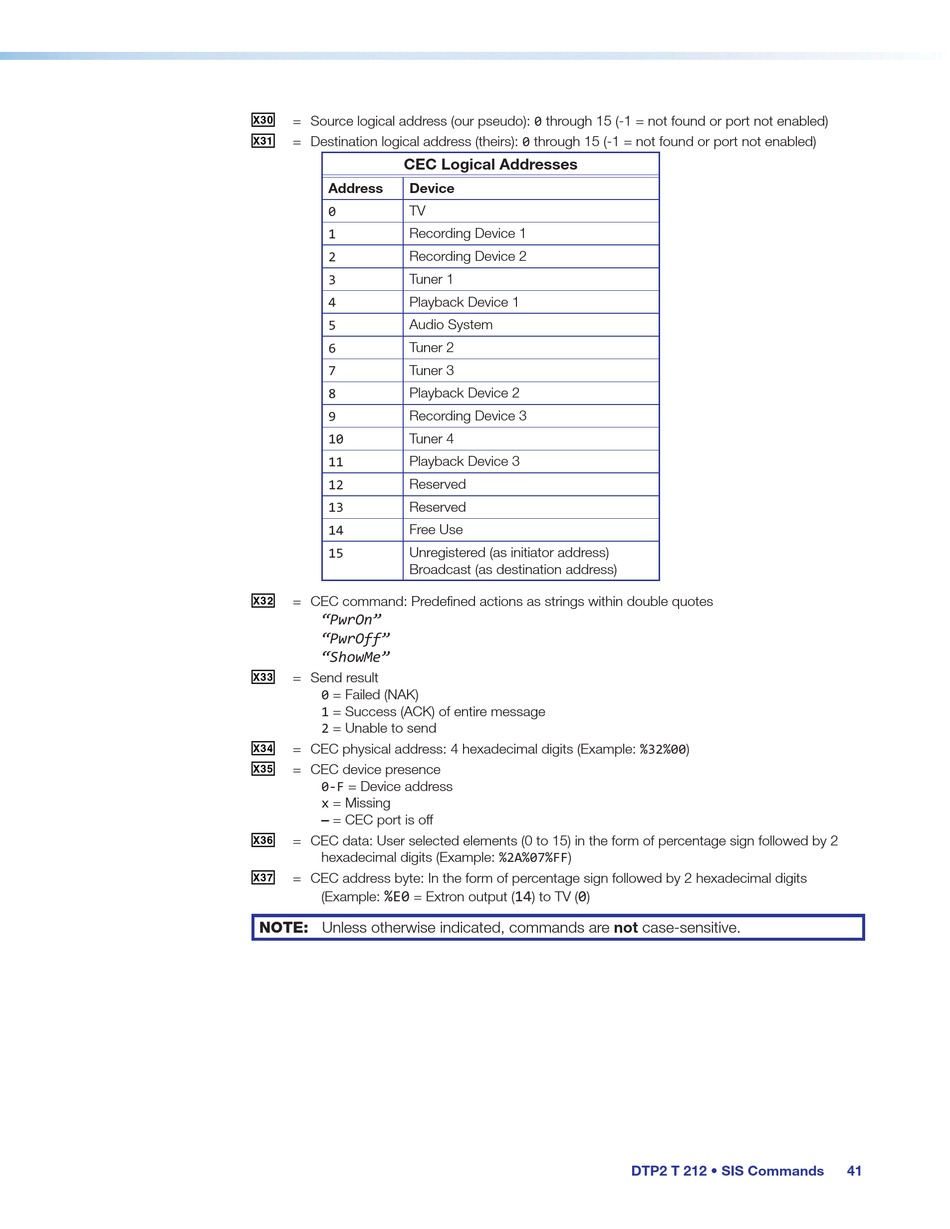

X3)
= Source logical address (our pseudo): 0 through 15 (-1 = not found or port not enabled)
X3!
= Destination logical address (theirs): 0 through 15 (-1 = not found or port not enabled)
CEC Logical Addresses
Address Device
0
TV
1 Recording Device 1
2 Recording Device 2
3 Tuner 1
4 Playback Device 1
5
Audio System
6 Tuner 2
7 Tuner 3
8 Playback Device 2
9 Recording Device 3
10
Tuner 4
11 Playback Device 3
12 Reserved
13 Reserved
14 Free Use
15
Unregistered (as initiator address)
Broadcast (as destination address)
X3@
= CEC command: Predefined actions as strings within double quotes
"PwrOn"
"PwrOff"
"ShowMe"
X3#
= Send result
0 = Failed (NAK)
1 = Success (ACK) of entire message
2 = Unable to send
X3$
= CEC physical address: 4 hexadecimal digits (Example: %32%00)
X3%
= CEC device presence
0-F = Device address
x = Missing
— = CEC port is off
X3^
= CEC data: User selected elements (0 to 15) in the form of percentage sign followed by 2
hexadecimal digits (Example: %2A%07%FF)
X3&
= CEC address byte: In the form of percentage sign followed by 2 hexadecimal digits
%E0
(Example: = Extron output (
NOTE: Unless otherwise indicated, commands are not case-sensitive.
14 0
) to TV ( )
DTP2 T 212 • SIS Commands 41
