Anchoring Wire Rope to Button Socket

See Figure 4-67 for the following procedure.
1. Remove pin from socket.
2. Install button end of load line in socket.
3. Pin socket to anchor point.
4. Securely tighten locking screw.
Button
Load
Line
Button Socket Assembly

Breaking in Wire Rope

After installing a new wire rope, break it in by operating it
several times under light load and at reduced speed. This
practice allows the wire rope to form its natural lay and the
strands to seat properly.
NOTE Wire rope will stretch during the break-in period,
reducing the wire rope's diameter as the strands
compact around the core.
The dead wraps of wire rope on the drum can become slack
during operation, even if the utmost care is used during
installation of the wire rope. This slackening is caused by the
normal stretch that occurs in a new wire rope under tension
Manitowoc
A1263
Pin
Locking
Button
Screw
Socket
(behind)

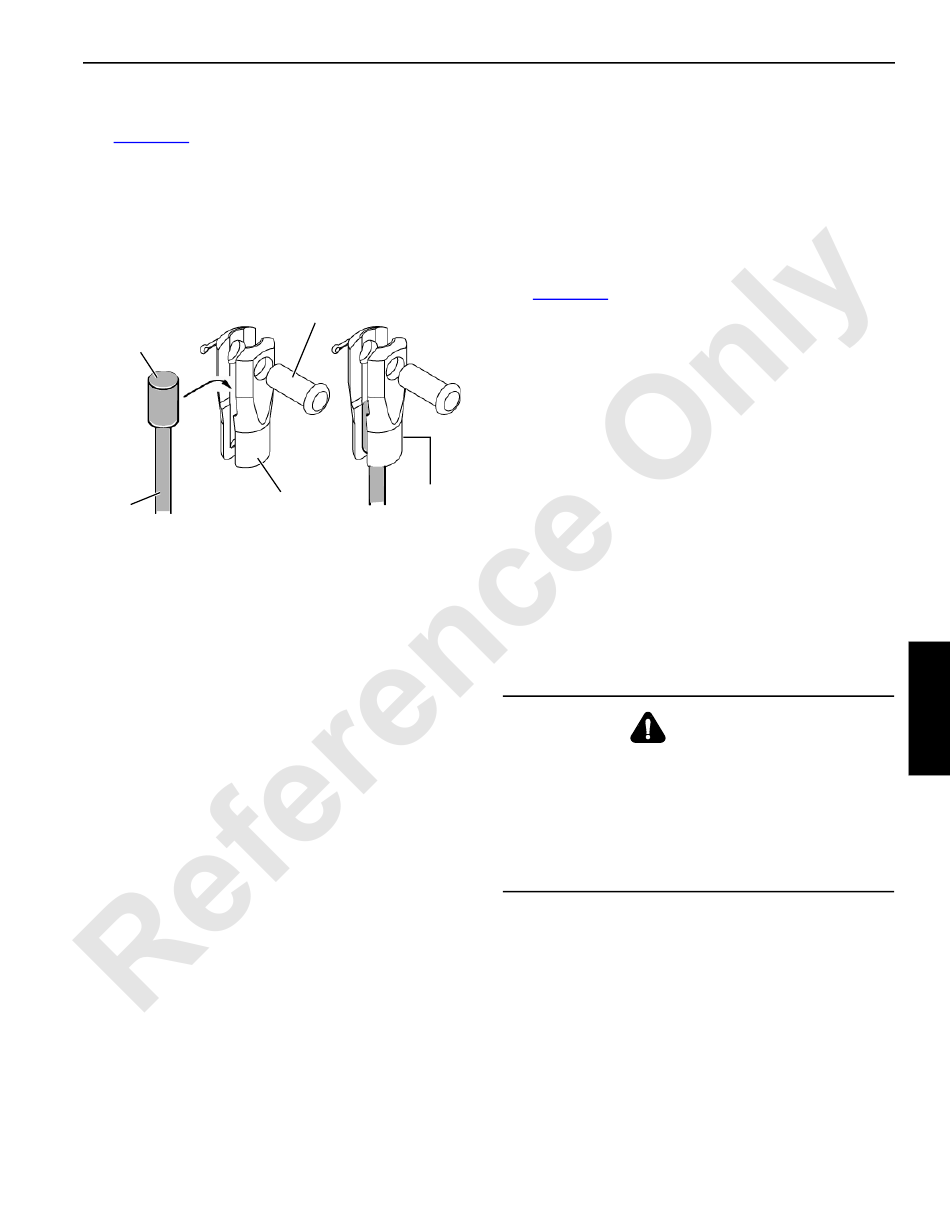

FIGURE 4-67
Published 12-05-17, Control # 032-23
and periodically throughout the wire rope's life from release
of the load.
When slackness is noted, tightly wind the dead wraps of wire
rope onto the drum. If left uncorrected, a wedging action with
subsequent layers will occur, and the resultant abrasion may
cause broken wires in the dead wraps.
PAD EYE USAGE FOR WIRE ROPE
REEVING
See Figure 4-68 for the following procedure.

General

Some rotation-resistant wire rope supplied by Manitowoc is
equipped with a No. 1.5 pad eye welded to the leading end of
the wire rope or to the button on the end of the wire rope.
A rigging line can be attached to the pad eye to make it
easier to reeve the load block.

Safety

1. For No. 1.5 pad eye, do not exceed 1,000 lb (4.45 kN)
single line pull.
2. Make sure rigging line and attaching hardware (clips and
rope connectors) are rated for at least 1,000 lb (4.45 kN)
line pull.
3. Inspect pad eye prior to each use. Replace it if:
• Any original dimensions have changed
• Cracks or breaks exist in metal or weld
WARNING
Flying Part Hazard!
Pad eye on end of wire rope has been provided for
reeving purposes only. Any other use is neither
intended nor approved.
Pad eye can break and fly apart with considerable force if
it is overloaded, not used properly, or not maintained
properly.
