Configure Enclosure Panels

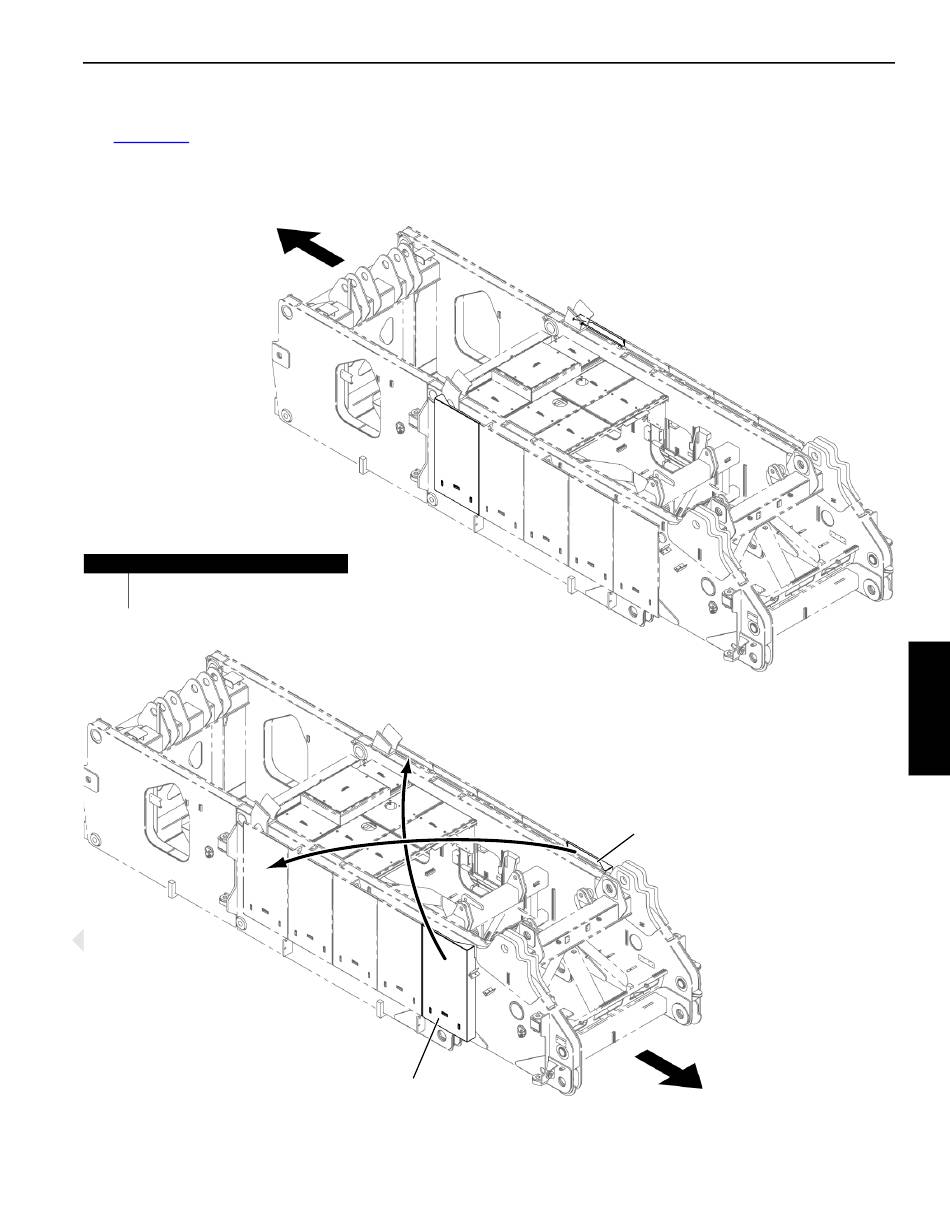

See Figure 4-19 for the following procedure.
NOTE This procedure only applies to crane when shipped
with front of rotating bed facing truck cab (shipping
position 2).
Truck Cab
Item Description
1 Right Side Rear Enclosure Panel
2 Left Side Rear Enclosure Panel
Current Production Shown; Past Production Similar
Manitowoc
1
Shipping Position 2
Move to Rear
2
Published 12-05-17, Control # 032-23

Working Position

1. Reposition enclosure panels on both sides of crane by
swapping sides with panels (1) and (2) and relocating to
the rear of the rotating bed.
Working Position or Shipping Position 1
2
Move to Rear
1
