18000 OPERATOR MANUAL

Boom Installation

WARNING
Crushing Injury Hazard!
Never work under or inside boom sections that are not
securely blocked.
WARNING
Falling Load Hazard!
Jib backstay straps can be stored on boom sections for
shipping.
If jib will not be used, remove all jib backstay straps, links,
and pins stored on boom sections.

Inspect Boom Stops

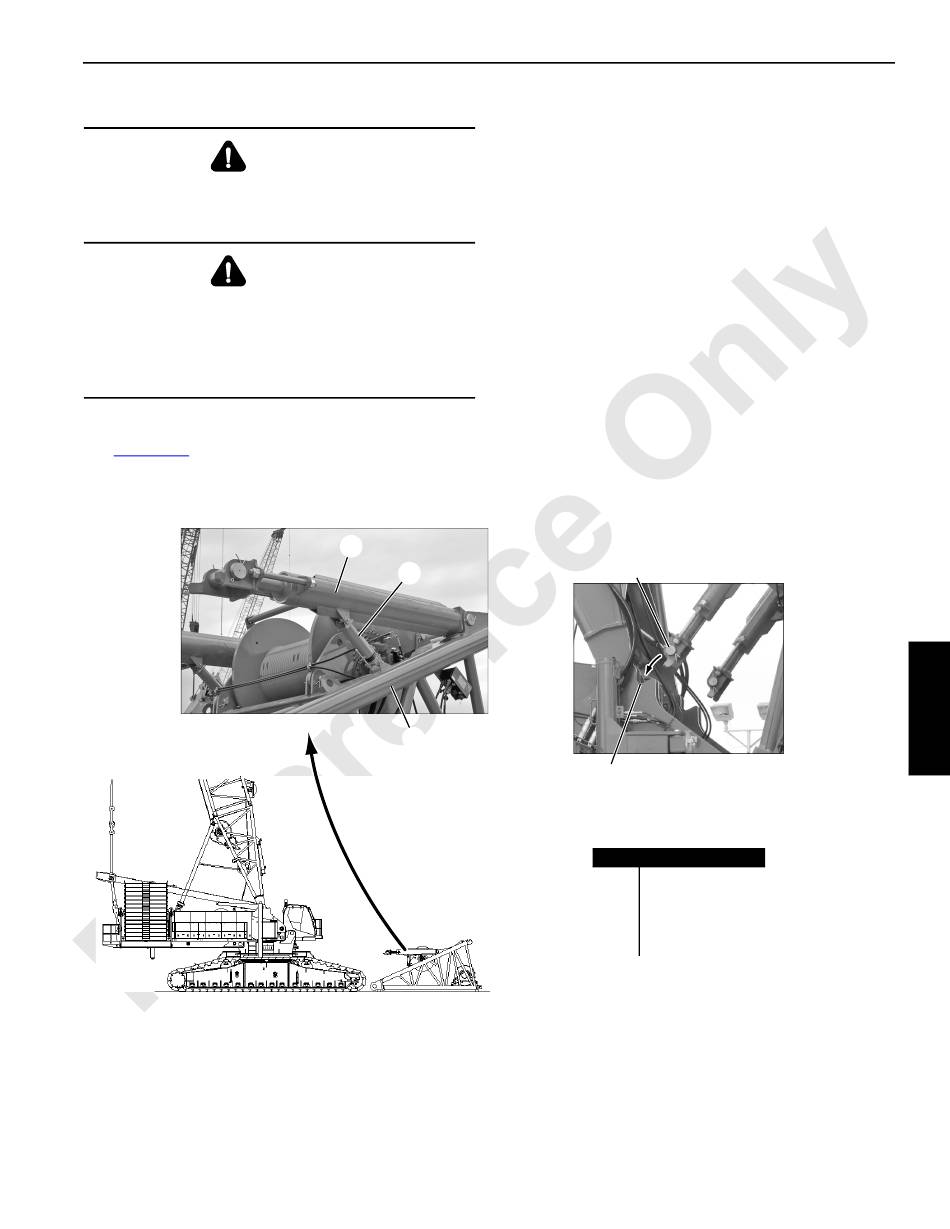

See Figure 4-41 for the following procedure.
View A
4-165
Manitowoc
Jib stops (2) are shipped in the assembled position on boom
butt (1) as shown in View A.
Before installing the boom butt, inspect both jib stops for
proper operation, as follows:
1.
2.
3.
4.
P2496
2
3
1
Published 12-05-17, Control # 032-23
SET-UP AND INSTALLATION
Fully raise and lower boom stop (2) by hand.
While performing step 1, strut (3) should extend and
retract fully without binding.
Repeat steps 1 and 2 several times to make sure strut
(3) operates freely without binding.
OPERATOR, observe jib stops during operation:
When the boom is raised to approximately 77°, boom
stop pins (4) should bottom out in saddles (5).
Stop operating immediately if boom stop pins do not
engage saddles as boom is raised. Lower boom to
ground and take corrective action.
4
5
Item Description
1 Boom Butt
2 Jib Stop
3 Strut
4 Pin
5 Saddle
P2497
4
View B
FIGURE 4-41
4-83
