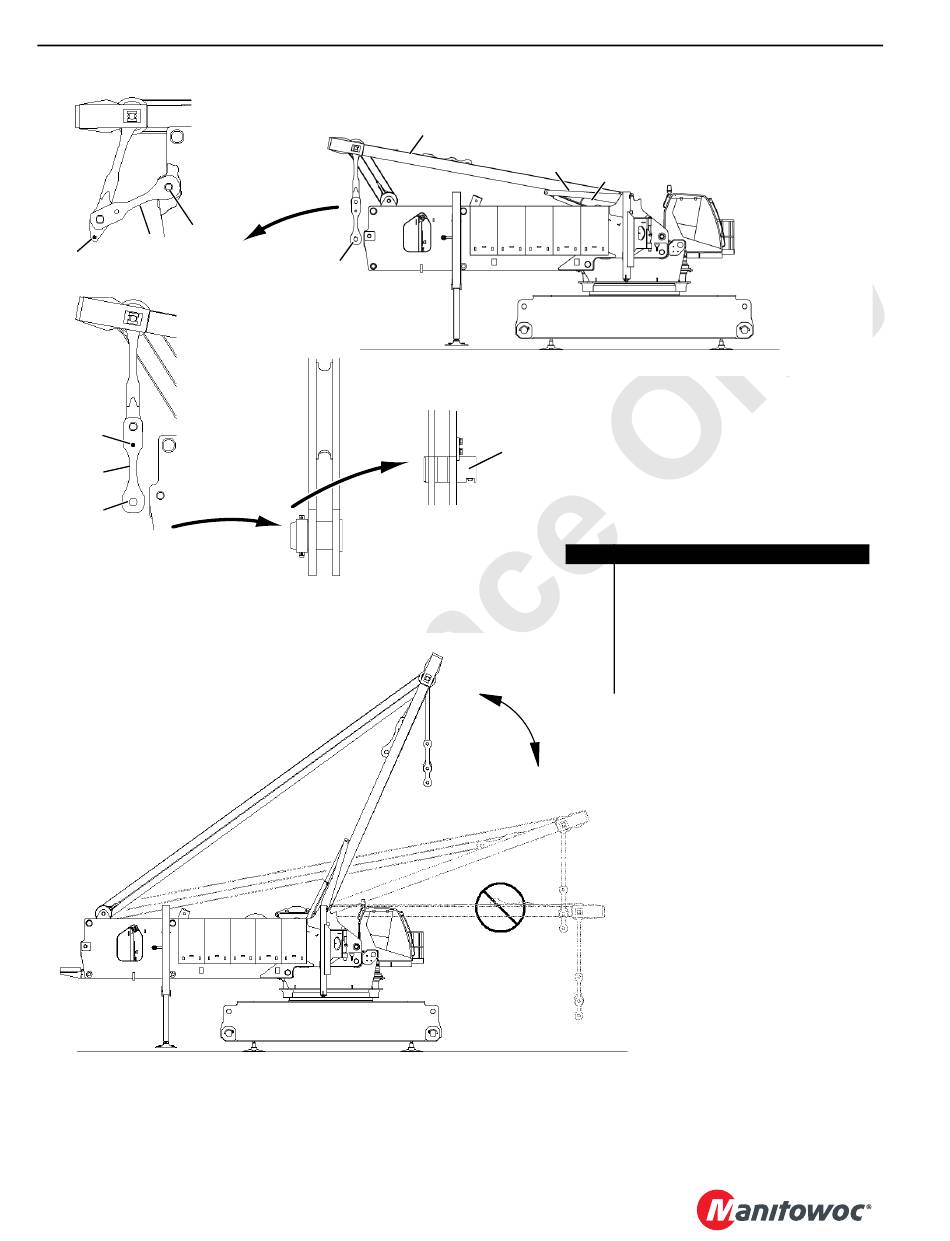

SET-UP AND INSTALLATION
4-116
6
4
5
Stored
5
Working
4
6
View B
4-120
4-30
11° Mast Angle
1
4
4-117
4-118
4-119
View D
Standard Pin
Configuration
114°
Published 12-05-17, Control # 032-23
2
3
View A
7
With MAX-ER
Configuration
Item
Description
1
Live Mast
2
Mast Assist Arms with Cylinders
3
Drum 3 (Whip Line)
4
Live Mast Straps (2 places)
5
Locking Pin with Cotter Pins (2 each)
6
Pin with Cotter Pins (2 each)
7
Load Pin With Keeper Plate (right side)
An assist crane must be
used to lower mast to
angles greater than 160°.
160°
180°
View C
18000 OPERATOR MANUAL
FIGURE 4-20
