18000 OPERATOR MANUAL

CAB DOOR ADJUSTMENT

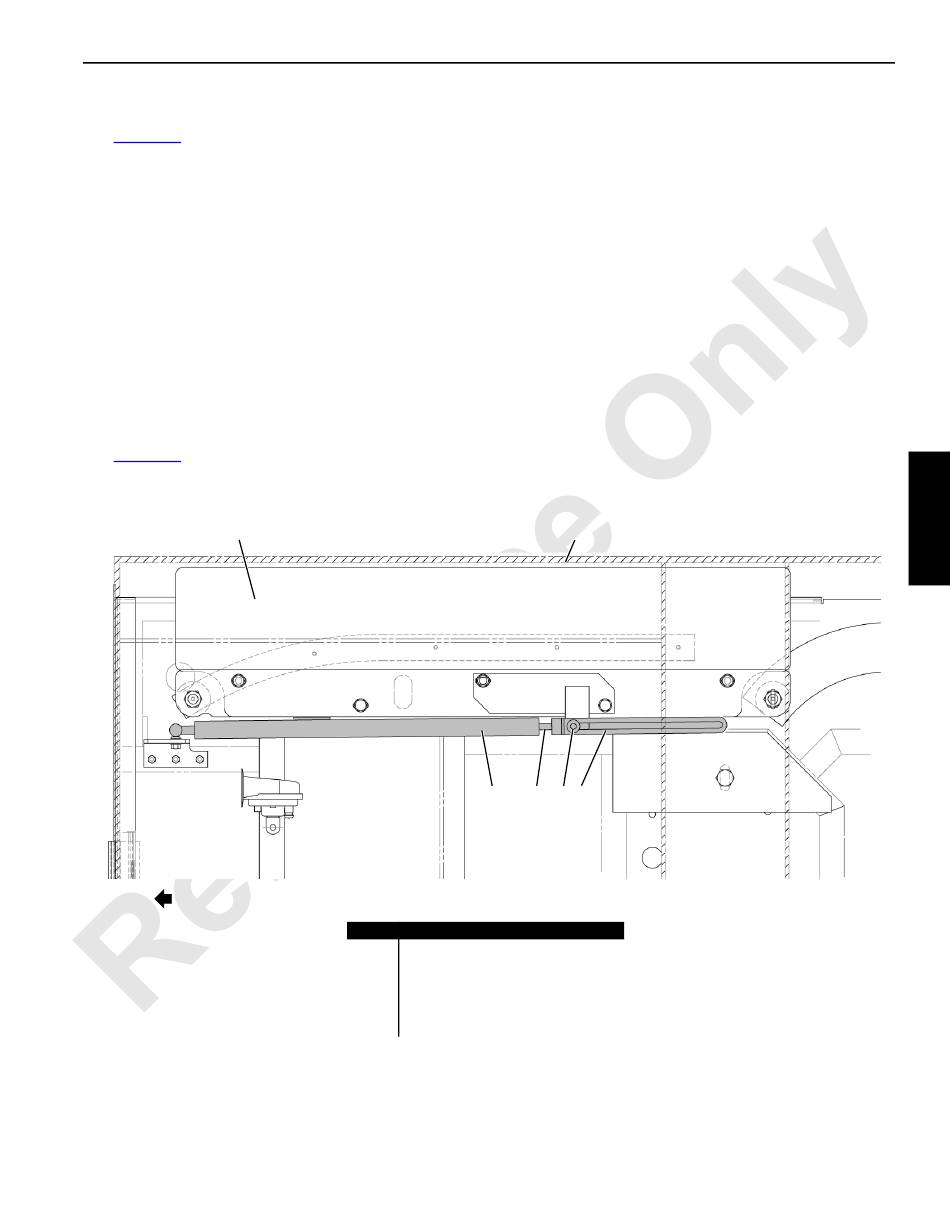

See Figure 3-2 for the following procedure.

General

The cab door damper prevents the cab door from slamming
open or closed. This is especially critical when the cab is
tilted at an angle other than horizontal.

Closing Cab Door

To properly close the cab door:
1. Slide cab door to closed position, but don't latch it. This
releases hydraulic pressure in damper.
2. Open cab door approximately 9 in (22 cm).
3. Slide cab door fully closed and latch.

Damper Adjustment

See Figure 3-2 for the following procedure.
6
3-100
FRONT
of Cab
Manitowoc
1. Adjust cab tilt to level position.
2. Remove pin (3).
3. Swing damper (1) with rod end (4) away from cab door
(6).
4. Pull piston rod (2) out to fully extended position.
a.
b. While pulling on rod (2), turn it counterclockwise
5. Reconnect rod end (4) to cab door (6).
NOTE:
1 2
Item Description
1 Damper
2 Piston Rod
3 Pin with Washers and Cotter Pins
4 Rod End
5 Bottom of Cab
6 Bottom of Sliding Door – CLOSED
Published 12-05-17, Control # 032-23
OPERATING CONTROLS AND PROCEDURES
While pulling on rod (2), turn it clockwise (looking at
rod end) approximately four full turns until it stops.
This is maximum damper pressure setting.
(looking at rod end) approximately four full turns
from maximum to minimum damper pressure
s e t t i n g . T h i s i s p r e s s u r e s e t t i n g t h a t i s
recommended.
It may take several trial and error adjustments to
obtain desired damping.
View from Under Cab Base
5
3 4
3
FIGURE 3-2
3-11
