18000 OPERATOR MANUAL
12
11
10
1
2
3
4
6
LIFT
7
2
3
View C
Shipping
Position
6
7
5
View D
Manitowoc
4
6
7
4
Published 12-05-17, Control # 032-23
SET-UP AND INSTALLATION
Item Description
1 Cab Left Platform
2 Hex Head Cap Screw (.5-13 X 1.00 G5)
3 Flat Washer (.5" SST)
4 Quick Release Pin (15.88 DIA X 63.5 LG)
5 Platform Weldment
6 Cotter Pin (1/8" dia. X 6.5" LG)
7 1-Hole Pin
8 Rubber Bumper
9 Quick Release Pin (15.9 DIA X 25.4 LG)
10 Cab Left Handrail
11 Cab Front Handrail
12 Cab Front Handrail Wing
LIFT
View A
Working
Position
12
6
7
5
4
View B
11
4
8
6

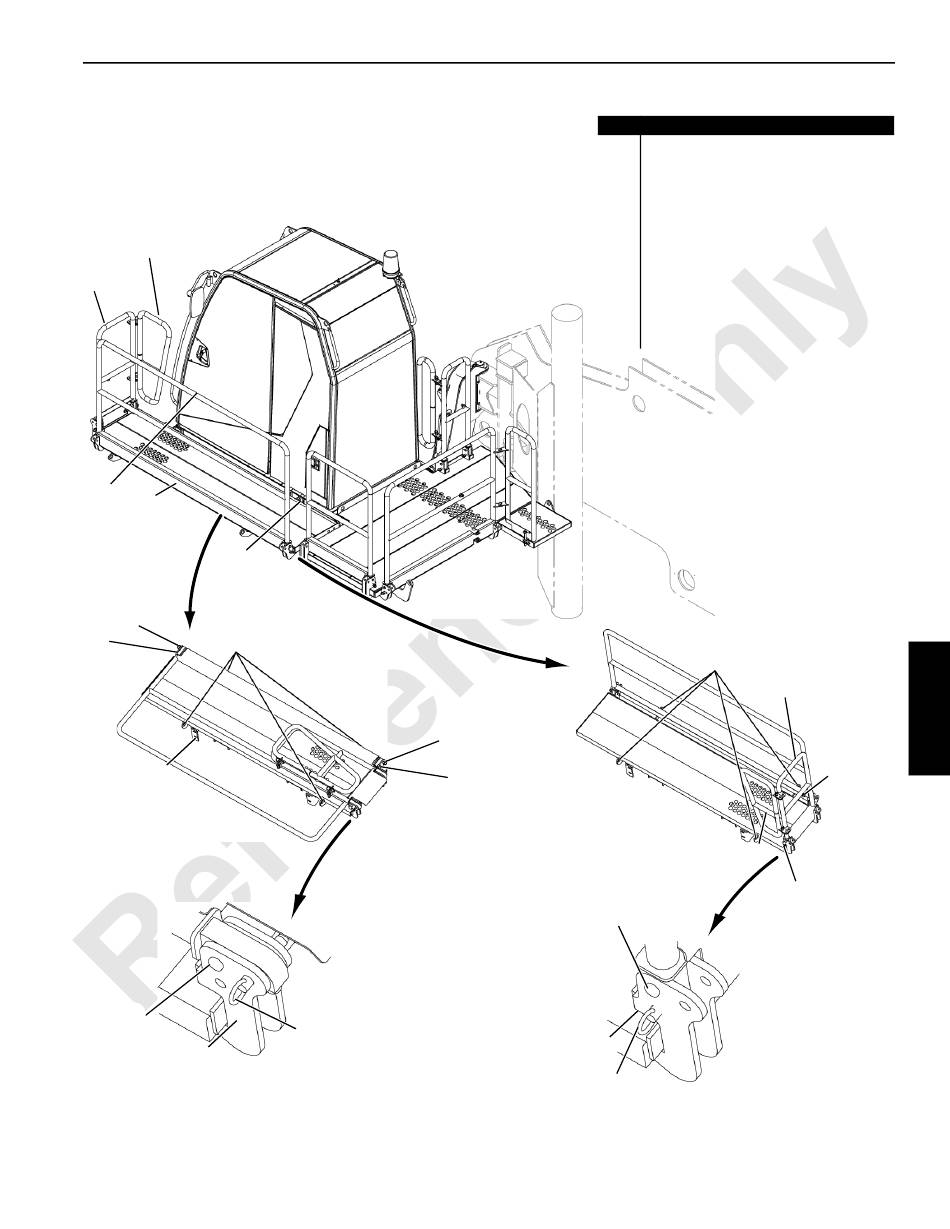

FIGURE 4-16
4-23
