Manitowoc 18000 Operator's Manual page 158

SET-UP AND INSTALLATION
16
15
14
13
Item Description
1 Boom
2 Drum 1 (Main Hoist)
3 Drum 6 (Luffing Hoist)
4 Drum 7 (Rigging Winch)
5 Drum 2 (Main Hoist)
6 Operator's Cab
7a Rotating Bed Adapter Frame
7b Carbody
8 Carbody Counterweight (Front and Rear)
9 Crawler Assembly
10 Rotating Bed Jack (2 at Front)
11 Rotating Bed
4-6
22
21
20
18
17
19
11
12
Published 12-05-17, Control # 032-23
23
10
Item Description
12 Rotating Bed Jack (2 at Rear)
13 Crane (Upperworks) Counterweight
14 Live Mast Straps
15 Live Mast
16 Fixed Mast Straps
17 Drum 5 (Live Mast Hoist)
18 Live Mast Assist Arm (1 each side)
19 Drum 3 (Whip Hoist)
20 Mast Stop (both sides)
21 Drum 4 (Boom Hoist)
22 Fixed Mast
23 Boom Stop
18000 OPERATOR MANUAL
4-100
1
2
3
4
5
6
7a
7b
(not shown)
8
9

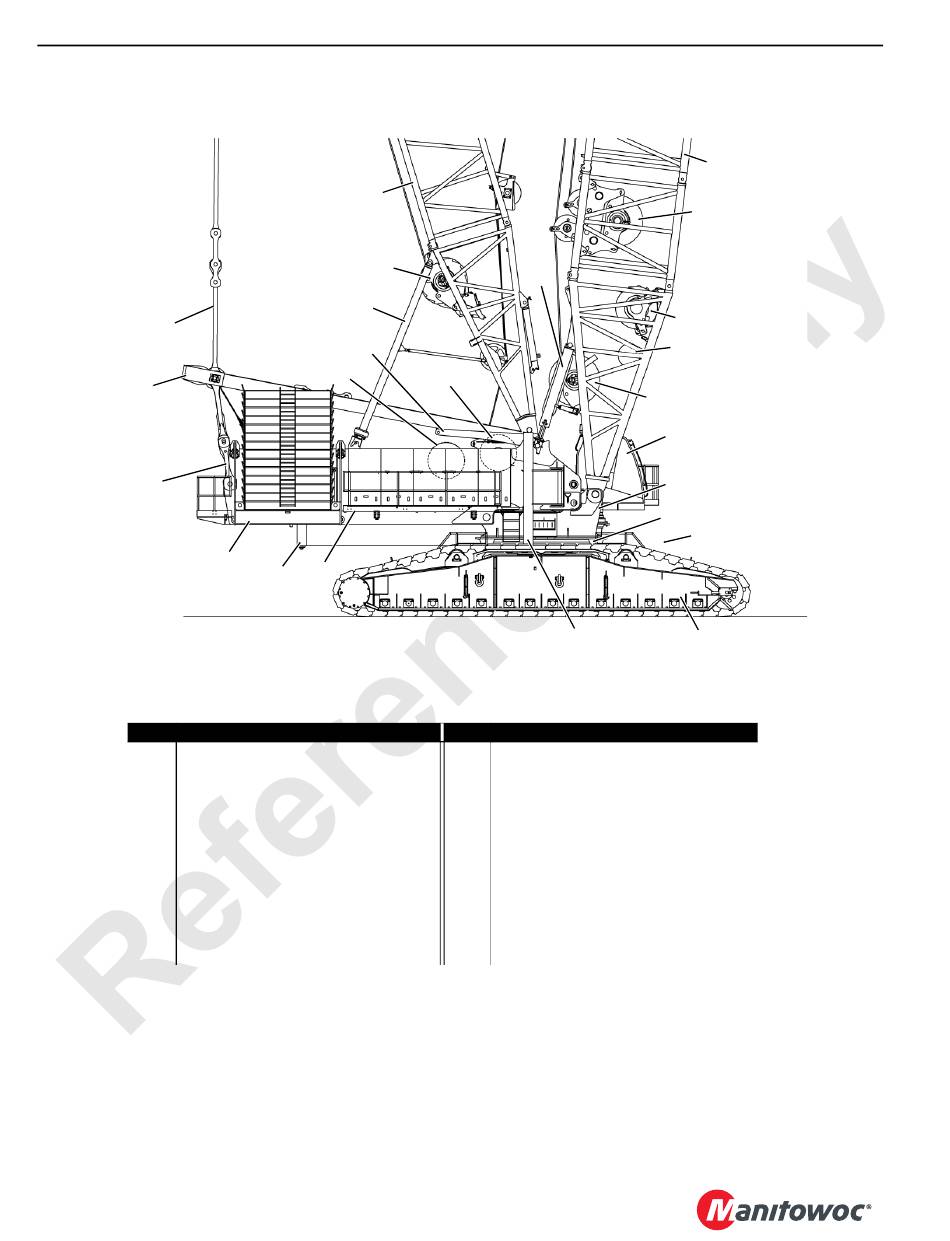

FIGURE 4-4
