Manitowoc 18000 Operator's Manual page 240

SET-UP AND INSTALLATION
4-173
View A
NOTE If equipped with grease lines for Drum 6
guide sheave in 40 ft (12,2 m) insert,
connect grease lines to couplers at these
locations.
View F
4-174
View E

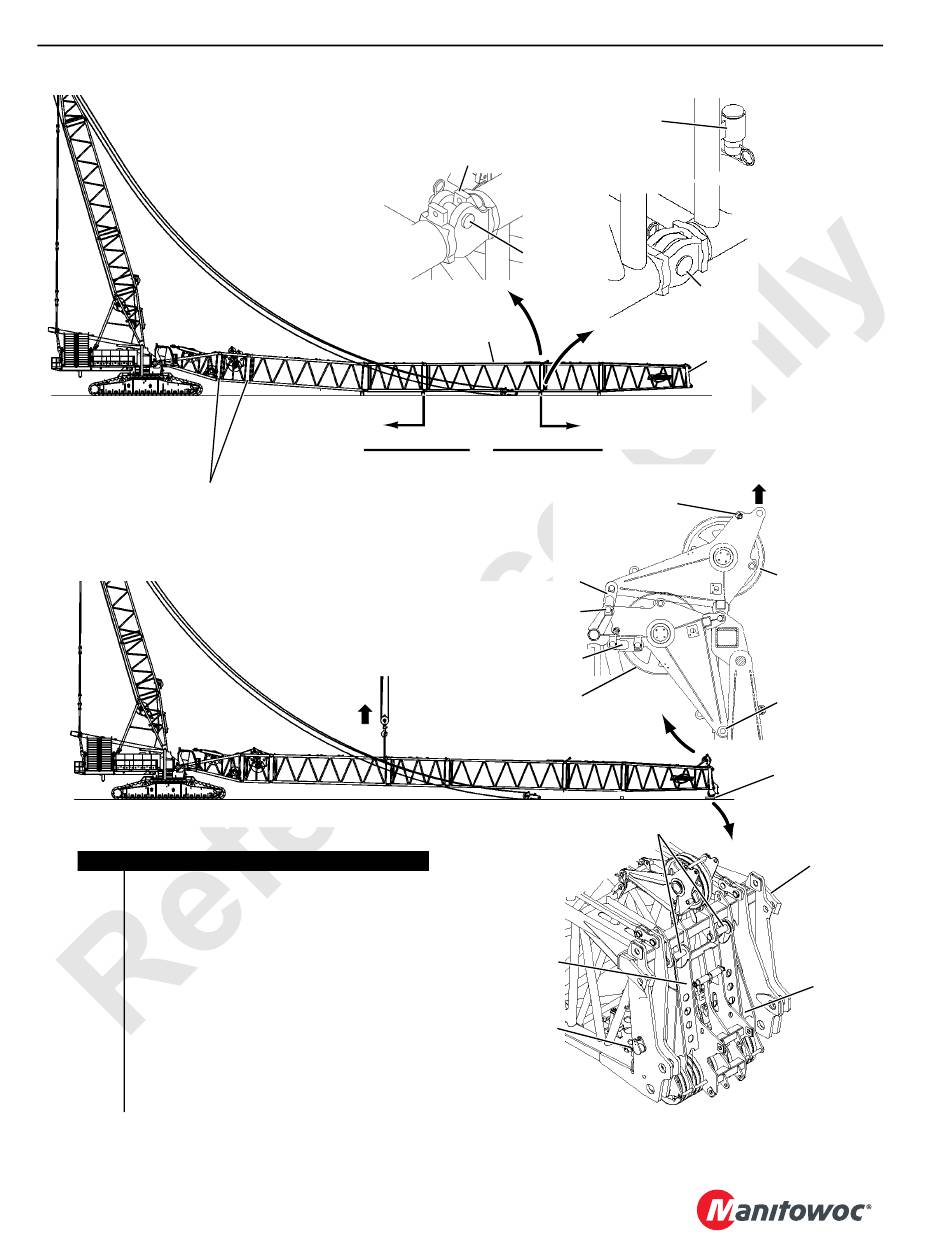

Item Description
1a 40 ft (12,2 m) #79A Transition Insert (if required)
1b Boom Inserts
2 Fixed Horizontal Pin
3 Hooked Connector
4 Bottom Connecting Pin with Safety Pin
5 30 ft (9,1 m) Boom Top
6 Wire Rope Guide
7a Pin with Snap Pins (two places)
7b Link and Pins and Snap Pins (two places)
7c Link and Pins and Snap Pins (stored)
8 Pin with Cotter Pins
9 Pin with Cotter Pins (stored)
10 Lower Boom Point Assembly
4-88
3
4-168
View B
1a
#55 Boom
1b
see Boom Rigging Assembly Drawing
From Assist
Crane
Published 12-05-17, Control # 032-23
18000 OPERATOR MANUAL
4
(stored)
2
4
4-169
View C
#79A Boom (if equipped)
View D
Storage
Hole
7b
7a
7c
4-175
6
8
10
9
4-176
5
Lift Here
6 (operating)
Operating
Hole
Blocking
5
9
View F
FIGURE 4-44
