Use the AD1 Track Adapter

ETC offers the option of installing a track-mounted luminaire with an
adapter that is compatible with Halo Track Systems. Halo Track Systems are
not available from ETC, but the Source Four Mini LED luminaire can be
custom-ordered from ETC with the AD1 track adapter.
To use the adapter with the Source Four Mini LED
luminaire, push the tab on the adapter to the lower
position (see image at right).
To install a luminaire with the AD1 adapter:
1. Pull back on the retaining sleeve.
2. Insert the adapter into the track with the gold tabs parallel to the
track.
3. Release the sleeve and rotate until you feel the adapter snap securely
into place.

Install Canopy Luminaire

WARNING:
when you perform this procedure.
The luminaire must be installed by a qualified electrician in
accordance with all national and local electrical and
construction codes and regulations.
AVERTISSEMENT :
L'alimentation doit étre éteinte avant d'exécuter cette
procédure.

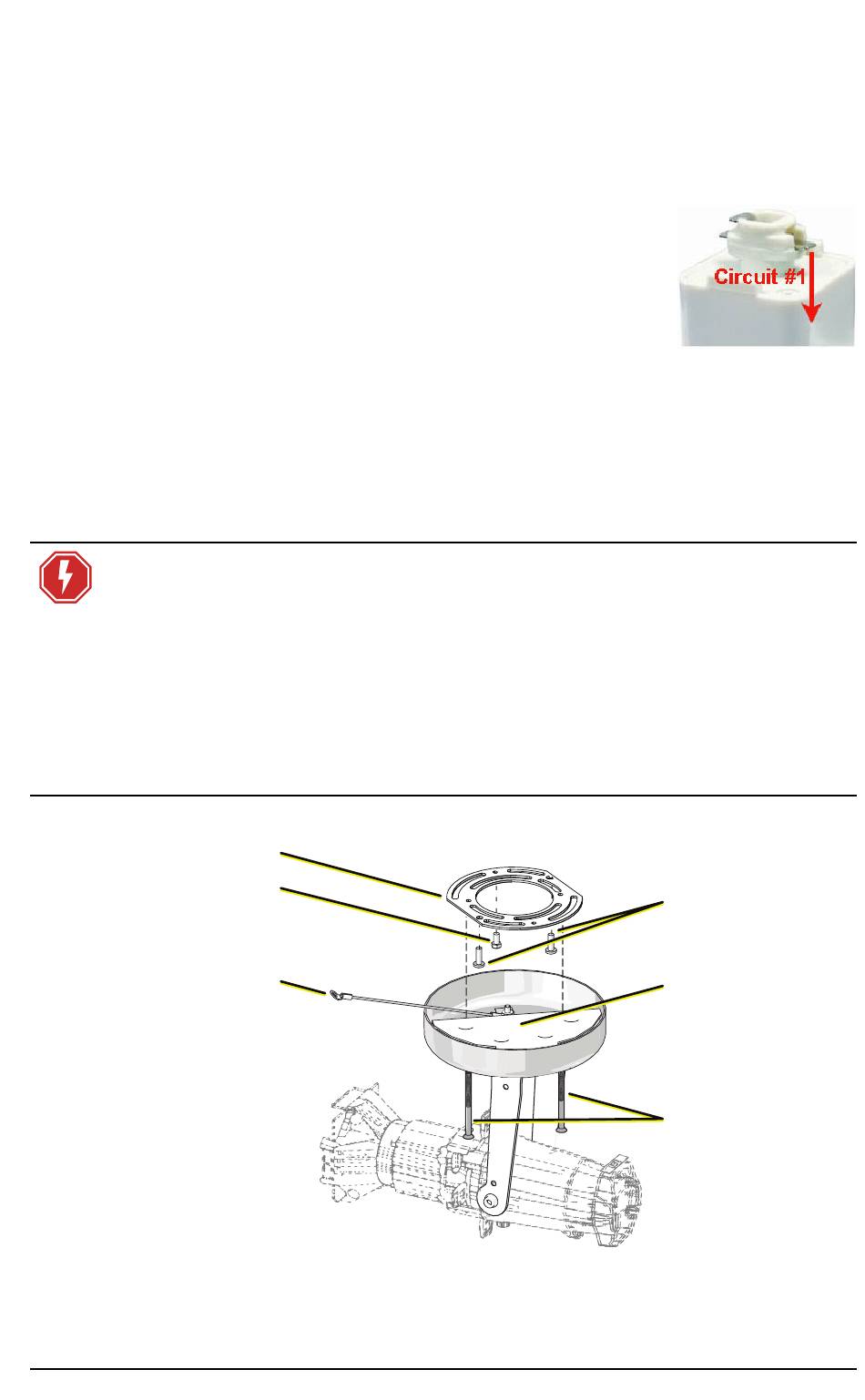

Mounting plate
Source Four Mini LED User Manual
RISK OF ELECTRIC SHOCK! Power must be off
RISQUE DE DÉCHARGE ÉLÉCTRIQUE!
Ground
bolt
Ground
braid
Mounting
plate bolts
Canopy plate
(four indentations
allow for multiple
bolt nesting
positions)
Canopy
bolts
